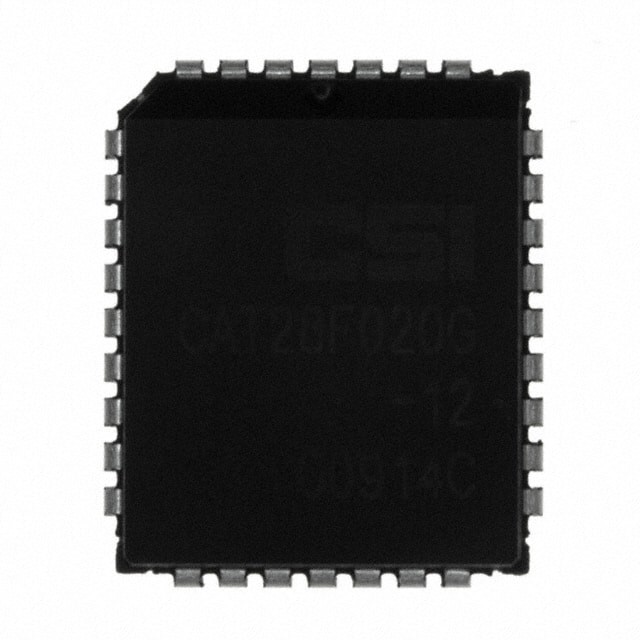

CAT28LV256G25 IC EEPROM 256KBIT PAR 32PLCC onsemi



DESCRIPTION

The CAT28LV256 is a fast, low power, low voltage CMOS Parallel E2PROM organized as 32K x 8-bits. It requires a simple interface for in-system programming. On-chip address and data latches, self-timed write cycle with auto-clear and VCC power up/down write protection eliminate additional timing and protection hardware. DATA Polling and Toggle status bits signal the start and end of the self-timed write cycle. Additionally, the CAT28LV256 features hardware and software write protection.





FEATURES

■ 3.0V to 3.6V Supply
■ Read Access Times: 200/250/300 ns
■ Low Power CMOS Dissipation:
– Active: 15 mA Max.
– Standby: 150 µA Max.
■ Simple Write Operation:
– On-Chip Address and Data Latches
– Self-Timed Write Cycle with Auto-Clear
■ Fast Write Cycle Time:
– 10ms Max.
■ Commercial, Industrial and Automotive Temperature Ranges
■ CMOS and TTL Compatible I/O
■ Automatic Page Write Operation:
– 1 to 64 Bytes in 10ms
– Page Load Timer
■ End of Write Detection:
– Toggle Bit
– DATA Polling
■ Hardware and Software Write Protection
■ 100,000 Program/Erase Cycles
■ 100 Year Data Retention
