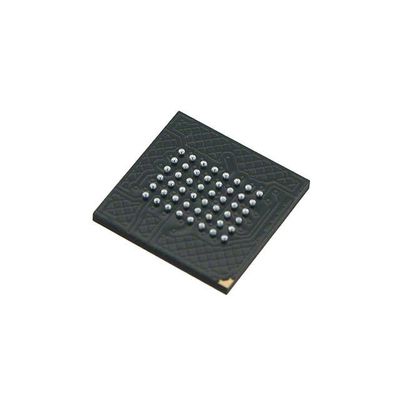

71V416S12BEI IC SRAM 4MBIT PARALLEL 48CABGA Renesas Electronics America Inc
| Brand Name | Renesas Electronics America Inc |
|---|---|
| Model Number | 71V416S12BEI |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Memory Type | Volatile | Memory Format | SRAM |
|---|---|---|---|
| Technology | SRAM - Asynchronous | Memory Size | 4Mbit |
| Memory Organization | 256K X 16 | Memory Interface | Parallel |
| Clock Frequency | - | Write Cycle Time - Word, Page | 12ns |
| Access Time | 12 Ns | Voltage - Supply | 3V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C (TA) | Mounting Type | Surface Mount |
| Package / Case | 48-TFBGA | Supplier Device Package | 48-CABGA (9x9) |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| 71V416S12BEI | IC SRAM 4MBIT PARALLEL 48CABGA | |
| 71V416L10BEG | IC SRAM 4MBIT PARALLEL 48CABGA | |
| 71V416L10BE | IC SRAM 4MBIT PARALLEL 48CABGA | |
| 71V416L12BEGI | IC SRAM 4MBIT PARALLEL 48CABGA | |
| 71V416L12BE | IC SRAM 4MBIT PARALLEL 48CABGA | |
| 71V416L15BE | IC SRAM 4MBIT PARALLEL 48CABGA | |
| 71V416L12BE8 | IC SRAM 4MBIT PARALLEL 48CABGA | |
| 71V416L15BE8 | IC SRAM 4MBIT PARALLEL 48CABGA | |
| 71V416L15BEG8 | IC SRAM 4MBIT PARALLEL 48CABGA | |
| 71V416L12BEG | IC SRAM 4MBIT PARALLEL 48CABGA | |
| 71V416L12BEG8 | IC SRAM 4MBIT PARALLEL 48CABGA | |
| 71V416L12BEI | IC SRAM 4MBIT PARALLEL 48CABGA | |
| 71V416L12BEI8 | IC SRAM 4MBIT PARALLEL 48CABGA | |
| 71V416L15BEG | IC SRAM 4MBIT PARALLEL 48CABGA | |
| 71V416L15BEI | IC SRAM 4MBIT PARALLEL 48CABGA | |
| 71V416L15BEI8 | IC SRAM 4MBIT PARALLEL 48CABGA | |
| 71V416S10BE | IC SRAM 4MBIT PARALLEL 48CABGA | |
| 71V416S10BE8 | IC SRAM 4MBIT PARALLEL 48CABGA | |
| 71V416S10BEG | IC SRAM 4MBIT PARALLEL 48CABGA | |
| 71V416S12BE | IC SRAM 4MBIT PARALLEL 48CABGA | |
| 71V416S12BE8 | IC SRAM 4MBIT PARALLEL 48CABGA | |
| 71V416S12BEG | IC SRAM 4MBIT PARALLEL 48CABGA | |
| 71V416S12BEG8 | IC SRAM 4MBIT PARALLEL 48CABGA | |
| 71V416S15BE | IC SRAM 4MBIT PARALLEL 48CABGA | |
| 71V416S15BE8 | IC SRAM 4MBIT PARALLEL 48CABGA | |
| 71V416S15BEG | IC SRAM 4MBIT PARALLEL 48CABGA | |
| 71V416S10BEG8 | IC SRAM 4MBIT PARALLEL 48CABGA | |
| 71V416S15BEG8 | IC SRAM 4MBIT PARALLEL 48CABGA | |
| 71V416S15BEI | IC SRAM 4MBIT PARALLEL 48CABGA | |
| 71V416S15BEGI | IC SRAM 4MBIT PARALLEL 48CABGA | |
| 71V416L10BEG8 | IC SRAM 4MBIT PARALLEL 48CABGA | |
| 71V416S12BEI8 | IC SRAM 4MBIT PARALLEL 48CABGA | |
| 71V416S15BEI8 | IC SRAM 4MBIT PARALLEL 48CABGA | |
| 71V416S15BEGI8 | IC SRAM 4MBIT PARALLEL 48CABGA | |
| 71V416L12BEGI8 | IC SRAM 4MBIT PARALLEL 48CABGA | |
| 71V416L15BEGI | IC SRAM 4MBIT PARALLEL 48CABGA | |
| 71V416L15BEGI8 | IC SRAM 4MBIT PARALLEL 48CABGA | |
| IDT71V416L10BEGI | IC SRAM 4MBIT PARALLEL 48CABGA | |
| IDT71V416L10BEGI8 | IC SRAM 4MBIT PARALLEL 48CABGA | |
| IDT71V416L10BEI | IC SRAM 4MBIT PARALLEL 48CABGA | |
| IDT71V416L10BEI8 | IC SRAM 4MBIT PARALLEL 48CABGA | |
| IDT71V416S10BEI | IC SRAM 4MBIT PARALLEL 48CABGA | |
| IDT71V416S10BEI8 | IC SRAM 4MBIT PARALLEL 48CABGA | |
| IDT71V416VL10BEGI | IC SRAM 4MBIT PARALLEL 48CABGA | |
| IDT71V416VL10BEGI8 | IC SRAM 4MBIT PARALLEL 48CABGA | |
| IDT71V416VL12BE | IC SRAM 4MBIT PARALLEL 48CABGA | |
| IDT71V416VL12BE8 | IC SRAM 4MBIT PARALLEL 48CABGA | |
| IDT71V416VL12BEI | IC SRAM 4MBIT PARALLEL 48CABGA | |
| IDT71V416VL12BEI8 | IC SRAM 4MBIT PARALLEL 48CABGA | |
| IDT71V416VL15BE | IC SRAM 4MBIT PARALLEL 48CABGA | |
| IDT71V416VL15BE8 | IC SRAM 4MBIT PARALLEL 48CABGA | |
| IDT71V416VL15BEG | IC SRAM 4MBIT PARALLEL 48CABGA | |
| IDT71V416VL15BEG8 | IC SRAM 4MBIT PARALLEL 48CABGA | |
| IDT71V416VL15BEGI | IC SRAM 4MBIT PARALLEL 48CABGA | |
| IDT71V416VL15BEGI8 | IC SRAM 4MBIT PARALLEL 48CABGA | |
| IDT71V416VS10BEI | IC SRAM 4MBIT PARALLEL 48CABGA | |
| IDT71V416VS10BEI8 | IC SRAM 4MBIT PARALLEL 48CABGA | |
| IDT71V416VS12BE | IC SRAM 4MBIT PARALLEL 48CABGA | |
| IDT71V416VS12BE8 | IC SRAM 4MBIT PARALLEL 48CABGA | |
| IDT71V416VS12BEI | IC SRAM 4MBIT PARALLEL 48CABGA | |
| IDT71V416VS12BEI8 | IC SRAM 4MBIT PARALLEL 48CABGA | |
| IDT71V416VS15BEGI | IC SRAM 4MBIT PARALLEL 48CABGA | |
| IDT71V416VS15BEGI8 | IC SRAM 4MBIT PARALLEL 48CABGA | |
| 71V416L10BE8 | IC SRAM 4MBIT PARALLEL 48CABGA |
Product Description
Product Details
Description
The IDT71V416 is a 4,194,304-bit high-speed Static RAM organized as 256K x 16. It is fabricated using high-perfomance, high-reliability CMOS technology. This state-of-the-art technology, combined with innovative circuit design techniques, provides a cost-effective solution for high-speed memory needs.The IDT71V416 has an output enable pin which operates as fast as 5ns, with address access times as fast as 10ns. All bidirectional inputs and outputs of the IDT71V416 are LVTTL-compatible and operation is from a single 3.3V supply. Fully static asynchronous circuitry is used, requiring no clocks or refresh for operation.
Features
◆ 256K x 16 advanced high-speed CMOS Static RAM◆ JEDEC Center Power / GND pinout for reduced noise.
◆ Equal access and cycle times
– Commercial and Industrial: 10/12/15ns
◆ One Chip Select plus one Output Enable pin
◆ Bidirectional data inputs and outputs directly LVTTL-compatible
◆ Low power consumption via chip deselect
◆ Upper and Lower Byte Enable Pins
◆ Single 3.3V power supply
◆ Available in 44-pin, 400 mil plastic SOJ package and a 44-pin, 400 mil TSOP Type II package and a 48 ball grid array, 9mm x 9mm package.
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Integrated Circuit Systems |
| Product Category | Memory ICs |
| Series | 71V416 |
| Type | Asynchronous |
| Packaging | Tray Alternate Packaging |
| Mounting-Style | SMD/SMT |
| Package-Case | 48-TFBGA |
| Operating-Temperature | -40°C ~ 85°C (TA) |
| Interface | Parallel |
| Voltage-Supply | 3 V ~ 3.6 V |
| Supplier-Device-Package | 48-CABGA (9x9) |
| Memory Capacity | 4M (256K x 16) |
| Memory-Type | SRAM - Asynchronous |
| Speed | 12ns |
| Access-Time | 12 ns |
| Format-Memory | RAM |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Interface-Type | Parallel |
| Organization | 256 k x 16 |
| Supply-Current-Max | 180 mA |
| Part-#-Aliases | 71V416 IDT71V416S12BEI |
| Supply-Voltage-Max | 3.6 V |
| Supply-Voltage-Min | 3 V |
| Package-Case | CABGA-48 |
| Manufacturer Part# | Description | Manufacturer | Compare |
| IDT71V416S12BEI8 Memory |
Standard SRAM, 256KX16, 12ns, CMOS, PBGA48, 9 X 9 MM, BGA-48 | Integrated Device Technology Inc | 71V416S12BEI vs IDT71V416S12BEI8 |
| IDT71V416YS12BEG3 Memory |
Standard SRAM, 256KX16, 12ns, CMOS, PBGA48, 9 X 9 MM, ROHS COMPLIANT, BGA-48 | Integrated Device Technology Inc | 71V416S12BEI vs IDT71V416YS12BEG3 |
| IDT71V416S12BEI Memory |
Standard SRAM, 256KX16, 12ns, CMOS, PBGA48, 9 X 9 MM, BGA-48 | Integrated Device Technology Inc | 71V416S12BEI vs IDT71V416S12BEI |
| IDT71V416VS12BEGI Memory |
Standard SRAM, 256KX16, 12ns, CMOS, PBGA48, 9 X 9 MM, BGA-48 | Integrated Device Technology Inc | 71V416S12BEI vs IDT71V416VS12BEGI |
| IDT71V416YS12BEGI Memory |
Standard SRAM, 256KX16, 12ns, CMOS, PBGA48, 9 X 9 MM, BGA-48 | Integrated Device Technology Inc | 71V416S12BEI vs IDT71V416YS12BEGI |
| IDT71V416YFS12BEI Memory |
Standard SRAM, 256KX16, 12ns, CMOS, PBGA48, 9 X 9 MM, POWER, BGA-48 | Integrated Device Technology Inc | 71V416S12BEI vs IDT71V416YFS12BEI |
| 71V416VS12BEGI Memory |
Standard SRAM, 256KX16, 12ns, CMOS, PBGA48, 9 X 9 MM, ROHS COMPLIANT, BGA-48 | Integrated Device Technology Inc | 71V416S12BEI vs 71V416VS12BEGI |
| 71V416S12BEI8 Memory |
CABGA-48, Reel | Integrated Device Technology Inc | 71V416S12BEI vs 71V416S12BEI8 |
| IDT71V416S12BEGI Memory |
Standard SRAM, 256KX16, 12ns, CMOS, PBGA48, 9 X 9 MM, BGA-48 | Integrated Device Technology Inc | 71V416S12BEI vs IDT71V416S12BEGI |
| 71V416S12BEGI Memory |
Standard SRAM, 256KX16, 12ns, CMOS, PBGA48, 9 X 9 MM, ROHS COMPLIANT, BGA-48 | Integrated Device Technology Inc | 71V416S12BEI vs 71V416S12BEGI |
Descriptions
SRAM - Asynchronous Memory IC 4Mb (256K x 16) Parallel 12ns 48-CABGA (9x9)
SRAM 256Kx16 ASYNCHRONOUS 3.3V CMOS SRAM
