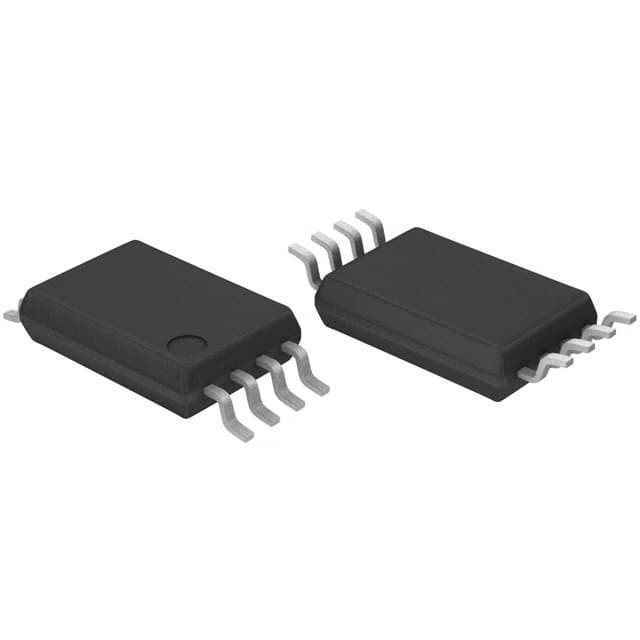

BR24G02FV-3GTE2 IC EEPROM 2KBIT I2C 8SSOPB Rohm Semiconductor

  • BR24G02FV-3GTE2 IC EEPROM 2KBIT I2C 8SSOPB Rohm Semiconductor
Brand Name Rohm Semiconductor
Model Number BR24G02FV-3GTE2
Minimum Order Quantity 1
Price Based on current price
Packaging Details anti-static bag & cardboard box
Delivery Time 3-5 work days
Payment Terms T/T
Supply Ability In stock

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Memory Type Non-Volatile Memory Format EEPROM
Technology EEPROM Memory Size 2Kbit
Memory Organization 256 X 8 Memory Interface I²C
Clock Frequency 400 KHz Write Cycle Time - Word, Page 5ms
Access Time - Voltage - Supply 1.6V ~ 5.5V
Operating Temperature -40°C ~ 85°C (TA) Mounting Type Surface Mount
Package / Case 8-LSSOP (0.173", 4.40mm Width) Supplier Device Package 8-SSOP-B
You can tick the products you need and communicate with us in the message board.
Part Number Description
BR24G02FV-3GTE2 IC EEPROM 2KBIT I2C 8SSOPB
BR34L02FV-WE2 IC EEPROM 2KBIT I2C 8SSOPB
BR93L76RFV-WE2 IC EEPROM 8KBIT SPI 2MHZ 8SSOPB
BR93G66FV-3AGTE2 IC EEPROM 4KBIT MICROWIRE 8SSOPB
BR93G46FV-3GTE2 IC EEPROM 1KBIT MICROWIRE 8SSOPB
BR93G46FV-3AGTE2 IC EEPROM 1KBIT MICROWIRE 8SSOPB
BR93G86FV-3BGTE2 IC EEPROM 16KBIT MIC WIRE 8SSOPB
BR93G86FV-3GTE2 IC EEPROM 16KBIT MIC WIRE 8SSOPB
BR24T256FV-WE2 IC EEPROM 256KBIT I2C 8SSOPB
BR24G04FV-3GTE2 IC EEPROM 4KBIT I2C 8SSOPB
BR24T02FV-WGE2 IC EEPROM 2KBIT I2C 8SSOPB
BR24G08FV-3GTE2 IC EEPROM 8KBIT I2C 8SSOPB
BR24G16FV-3GTE2 IC EEPROM 16KBIT I2C 8SSOPB
BR24L01AFV-WE2 IC EEPROM 1KBIT I2C 8SSOPB
BR24L08FV-WE2 IC EEPROM 8KBIT I2C 8SSOPB
BR93G86FV-3AGTE2 IC EEPROM 16KBIT SPI 3MHZ 8SSOPB
BR24C21FV-E2 IC EEPROM 1KBIT I2C 8SSOPB
BR24L04FV-WE2 IC EEPROM 4KBIT I2C 8SSOPB
BR24L32FV-WE2 IC EEPROM 32KBIT I2C 8SSOPB
BR24L02FV-WE2 IC EEPROM 2KBIT I2C 8SSOPB
BR93L46FV-WE2 IC EEPROM 1KBIT SPI 2MHZ 8SSOPB
BR93L46RFV-WE2 IC EEPROM 1KBIT SPI 2MHZ 8SSOPB
BR24G256FV-3GTE2 IC EEPROM 256KBIT I2C 8SSOPB
BR93G66FV-3GTE2 IC EEPROM 4KBIT SPI 3MHZ 8SSOPB
BR93G46FV-3BGTE2 IC EEPROM 1KBIT SPI 3MHZ 8SSOPB
BR93G76FV-3AGTE2 IC EEPROM 8KBIT SPI 3MHZ 8SSOPB
BR24L16FV-WE2 IC EEPROM 16KBIT I2C 8SSOPB
BR24T02FV-WE2 IC EEPROM 2KBIT I2C 8SSOPB
BR24T04FV-WE2 IC EEPROM 4KBIT I2C 8SSOPB
BR24G01FV-3GTE2 IC EEPROM 1KBIT I2C 8SSOPB
BR24G32FV-3GTE2 IC EEPROM 32KBIT I2C 8SSOPB
BR24T16FV-WE2 IC EEPROM 16KBIT I2C 8SSOPB
BR24G32FV-3AGTE2 IC EEPROM 32KBIT I2C 1MHZ 8SSOPB
BR24G64FV-3GTE2 IC EEPROM 64KBIT I2C 8SSOPB
BR24G64FV-3AGTE2 IC EEPROM 64KBIT I2C 1MHZ 8SSOPB
BR24T08FV-WE2 IC EEPROM 8KBIT I2C 8SSOPB
BR24G128FV-3AGTE2 IC EEPROM 128KBIT I2C 8SSOPB
BR24G128FV-3GTE2 IC EEPROM 128KBIT I2C 8SSOPB
BR24T01FV-WE2 IC EEPROM 1KBIT I2C 8SSOPB
BR24T32FV-WE2 IC EEPROM 32KBIT I2C 8SSOPB
BR93L56FV-WE2 IC EEPROM 2KBIT SPI 2MHZ 8SSOPB
BR24G256FV-3AGTE2 IC EEPROM 256KBIT I2C 8SSOPB
BR93L66RFV-WE2 IC EEPROM 4KBIT MICROWIRE 8SSOPB
BR24T64FV-WE2 IC EEPROM 64KBIT I2C 8SSOPB
BR24T128FV-WE2 IC EEPROM 128KBIT I2C 8SSOPB
BR25L010FV-WE2 IC EEPROM 1KBIT SPI 5MHZ 8SSOPB
BR25L040FV-WE2 IC EEPROM 4KBIT SPI 5MHZ 8SSOPB
BU9888FV-WE2 IC EEPROM 4KBIT SPI 2MHZ 8SSOPB
BR25S320FV-WE2 IC EEPROM 32KBIT SPI 8SSOPB
BR25L080FV-WE2 IC EEPROM 8KBIT SPI 5MHZ 8SSOPB
BR25L160FV-WE2 IC EEPROM 16KBIT SPI 5MHZ 8SSOPB
BR25S640FV-WE2 IC EEPROM 64KBIT SPI 8SSOPB
BR25S128FV-WE2 IC EEPROM 128KBIT SPI 8SSOPB
BR93L66FV-WE2 IC EEPROM 4KBIT SPI 2MHZ 8SSOPB
BR25L020FV-WE2 IC EEPROM 2KBIT SPI 5MHZ 8SSOPB
BR9020RFV-WE2 IC EEPROM 2KBIT SPI 2MHZ 8SSOPB
BR93L56RFV-WE2 IC EEPROM 2K SPI 2MHZ 8SSOPB
BR93L86RFV-WE2 IC EEPROM 16K SPI 2MHZ 8SSOPB
Leave a Message
Part Number Description
Product Description

Product Details



General Description

BR24G04-3 is a serial EEPROM of I2C BUS Interface Method





Features

■ Completely conforming to the world standard I2C
BUS.
All controls available by 2 ports of serial clock
(SCL) and serial data (SDA)
■ Other devices than EEPROM can be connected to
the same port, saving microcontroller port
■ 1.6V to 5.5V Single Power Source Operation most
suitable for battery use
■ 1.6V to 5.5V wide limit of operating voltage, possible
FAST MODE 400kHz operation
■ Page Write Mode useful for initial value write at
factory shipment
■ Self-timed Programming Cycle
■ Low Current Consumption
■ Prevention of Write Mistake
➤ Write (Write Protect) Function added
➤ Prevention of Write Mistake at Low Voltage
■ More than 1 million write cycles
■ More than 40 years data retention
■ Noise filter built in SCL / SDA terminal
■ Initial delivery state FFh



Specifications

Attribute Attribute Value
Manufacturer Rohm Semiconductor
Product Category Memory ICs
Series BR24G02-3
Packaging Alternate Packaging
Mounting-Style SMD/SMT
Package-Case 8-LSSOP (0.173", 4.40mm Width)
Operating-Temperature -40°C ~ 85°C (TA)
Interface I2C, 2-Wire Serial
Voltage-Supply 1.6 V ~ 5.5 V
Supplier-Device-Package 8-SSOPB
Memory Capacity 2K (256 x 8)
Memory-Type EEPROM
Speed 400kHz
Format-Memory EEPROMs - Serial
Maximum Operating Temperature + 85 C
Operating temperature range - 40 C
Operating-Supply-Voltage 1.6 V to 5.5 V
Operating-Supply-Current 0.5 mA 2 mA
Interface-Type Serial 2-Wire I2C
Organization 256 x 8
Supply-Current-Max 0.5 mA 2 mA
Supply-Voltage-Max 5.5 V
Supply-Voltage-Min 1.6 V
Package-Case SSOP-B8
Maximum-Clock-Frequency 400 kHz
Data-Retention 40 Years

Descriptions

EEPROM Memory IC 2Kb (256 x 8) I?C 400kHz 8-SSOPB
EEPROM I2C BUS 2K(256x8bit) EEPROM
