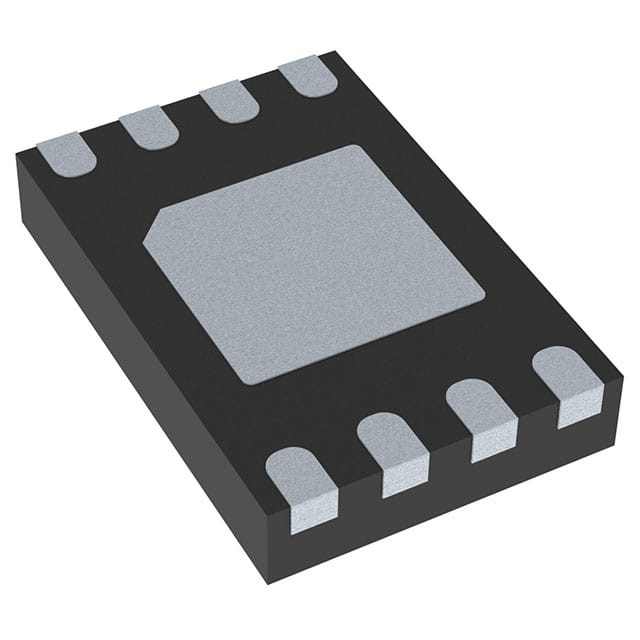

M24C02-FMC6TG IC EEPROM 2KBIT I2C 8UFDFPN STMicroelectronics
| Brand Name | STMicroelectronics |
|---|---|
| Model Number | M24C02-FMC6TG |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Memory Type | Non-Volatile | Memory Format | EEPROM |
|---|---|---|---|
| Technology | EEPROM | Memory Size | 2Kbit |
| Memory Organization | 256 X 8 | Memory Interface | I²C |
| Clock Frequency | 400 KHz | Write Cycle Time - Word, Page | 5ms |
| Access Time | 900 Ns | Voltage - Supply | 1.7V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C (TA) | Mounting Type | Surface Mount |
| Package / Case | 8-UFDFN Exposed Pad | Supplier Device Package | 8-UFDFPN (2x3) |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| M24C02-FMC6TG | IC EEPROM 2KBIT I2C 8UFDFPN | |
| M24C32-FMC6TG | IC EEPROM 32KBIT I2C 8UFDFPN | |
| M24256-DFMC6TG | IC EEPROM 256KBIT I2C 8UFDFPN | |
| M24512-DFMC6TG | IC EEPROM 512KBIT I2C 8UFDFPN | |
| M95512-DFMC6TG | IC EEPROM 512KBIT SPI 8UFDFPN | |
| M24C02-RMC6TG | IC EEPROM 2KBIT I2C 8UFDFPN | |
| M24C04-RMC6TG | IC EEPROM 4KBIT I2C 8UFDFPN | |
| M93C66-RMC6TG | IC EEPROM 4KBIT MIC WIRE 8UFDFPN | |
| M24C16-RMC6TG | IC EEPROM 16KBIT I2C 8UFDFPN | |
| M24C16-FMC6TG | IC EEPROM 16KBIT I2C 8UFDFPN | |
| M24C64-FMC6TG | IC EEPROM 64KBIT I2C 8UFDFPN | |
| M24128-DFMC6TG | IC EEPROM 128KBIT I2C 8UFDFPN | |
| M24256-BFMC6TG | IC EEPROM 256KBIT I2C 8UFDFPN | |
| M24C08-RMC6TG | IC EEPROM 8KBIT I2C 8UFDFPN | |
| M34E02-FMC6TG | IC EEPROM 2KBIT I2C 8UFDFPN | |
| M34E04-FMC9TG | IC EEPROM 4KBIT I2C 1MHZ 8UFDFPN | |
| M95040-DFMC6TG | IC EEPROM 4KBIT SPI 8UFDFPN | |
| M24C32-DFMC6TG | IC EEPROM 32KBIT I2C 8UFDFPN | |
| M95160-RMC6TG | IC EEPROM 16KBIT SPI 8UFDFPN | |
| M95640-RMC6TG | IC EEPROM 64KBIT SPI 8UFDFPN | |
| M95256-RMC6TG | IC EEPROM 256KBIT SPI 8UFDFPN | |
| M95080-RMC6TG | IC EEPROM 8KBIT SPI 8UFDFPN | |
| M95128-DFMC6TG | IC EEPROM 128KBIT SPI 8UFDFPN | |
| M95320-DFMC6TG | IC EEPROM 32KBIT SPI 8UFDFPN | |
| M95640-DFMC6TG | IC EEPROM 64KBIT SPI 8UFDFPN | |
| M24C04-FMC6TG | IC EEPROM 4KBIT I2C 8UFDFPN | |
| M24C08-FMC6TG | IC EEPROM 8KBIT I2C 8UFDFPN | |
| M95080-DFMC6TG | IC EEPROM 8KBIT SPI 8UFDFPN | |
| M24C32-XMC5TG | IC EEPROM 32KBIT I2C 8UFDFPN | |
| M24128-BFMC6TG | IC EEPROM 128KBIT I2C 8UFDFPN | |
| M95160-DFMC6TG | IC EEPROM 16KBIT SPI 8UFDFPN | |
| M95128-RMC6TG | IC EEPROM 128KBIT SPI 8UFDFPN | |
| M24C64-DFMC6TG | IC EEPROM 64KBIT I2C 8UFDFPN | |
| M24128-DRMF3TG/K | IC EEPROM 128KBIT I2C 8UFDFPN | |
| M95040-RMC6TG | IC EEPROM 4KBIT SPI 8UFDFPN | |
| M95320-RMC6TG | IC EEPROM 32KBIT SPI 8UFDFPN | |
| M95256-DFMC6TG | IC EEPROM 256KBIT SPI 8UFDFPN | |
| M24C04-FMC5TG | IC EEPROM 4KBIT I2C 8UFDFPN | |
| M24C08-FMC5TG | IC EEPROM 8KBIT I2C 8UFDFPN | |
| M24C16-FMC5TG | IC EEPROM 16KBIT I2C 8UFDFPN | |
| M95256-RMB6TG | IC EEPROM 256KBIT SPI 8UFDFPN | |
| M95512-DRMB6TG | IC EEPROM 512KBIT SPI 8UFDFPN | |
| M95512-RMB6TG | IC EEPROM 512KBIT SPI 8UFDFPN | |
| M95640-DRMC6TG | IC EEPROM 64KBIT SPI 8UFDFPN | |
| M95512-RMC6TG | IC EEPROM 512KBIT SPI 8UFDFPN | |
| M95320-DRMC6TG | IC EEPROM 32KBIT SPI 8UFDFPN | |
| M95020-RMC6TG | IC EEPROM 2KBIT SPI 8UFDFPN |
Product Description
Product Details
Description
These I²C-compatible electrically erasable programmable memory (EEPROM) devices are organized as 2048/1024/512/256/128 x 8 (M24C16, M24C08, M24C04, M24C02 and M24C01).
Features
■ Supports both the 100 kHz I2C Standard-mode and the 400 kHz I2C Fast-mode■ Single supply voltage:
– 2.5 V to 5.5 V for M24Cxx-W
– 1.8 V to 5.5 V for M24Cxx-Rev 16
– 1.7 V to 5.5 V for M24Cxx-F
■ Write Control input
■ Byte and Page Write (up to 16 bytes)
■ Random and Sequential Read modes
■ Self-timed programming cycle
■ Automatic address incrementing
■ Enhanced ESD/latch-up protection
■ More than 1 million write cycles
■ More than 40-year data retention
■ Packages:
– SO8, TSSOP8, UFDFPN8: ECOPACK2®(RoHS-compliant and Halogen-free)
– PDIP8: ECOPACK1® (RoHS-compliant)
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | STMicroelectronics |
| Product Category | Memory ICs |
| Series | M24C02-F |
| Packaging | Alternate Packaging |
| Mounting-Style | SMD/SMT |
| Package-Case | 8-UFDFN Exposed Pad |
| Operating-Temperature | -40°C ~ 85°C (TA) |
| Interface | I2C, 2-Wire Serial |
| Voltage-Supply | 1.7 V ~ 5.5 V |
| Supplier-Device-Package | 8-UFDFPN (2x3) |
| Memory Capacity | 2K (256 x 8) |
| Memory-Type | EEPROM |
| Speed | 400kHz |
| Access-Time | 900 ns |
| Format-Memory | EEPROMs - Serial |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Operating-Supply-Voltage | 1.7 V to 5.5 V |
| Operating-Supply-Current | 1 mA |
| Interface-Type | Serial 2-Wire I2C |
| Organization | 256 x 8 |
| Supply-Current-Max | 1 mA |
| Supply-Voltage-Max | 5.5 V |
| Supply-Voltage-Min | 1.7 V |
| Package-Case | UFDFPN-8 |
| Maximum-Clock-Frequency | 400 kHz |
| Data-Retention | 200 Years |
Descriptions
EEPROM Memory IC 2Kb (256 x 8) I?C 400kHz 900ns 8-UFDFPN (2x3)
EEPROM Serial-I2C 2K-bit 256 x 8 1.8V/2.5V/3.3V/5V 8-Pin UFDFPN EP T/R
EEPROM 2-Kbit serial I2C Bus EEPROM
