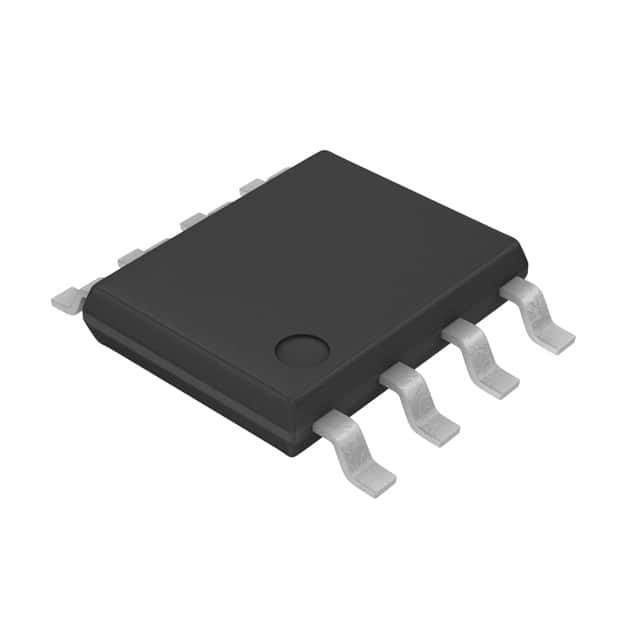

BR24G16FVJ-3AGTE2 IC EEPROM 16KBIT I2C 1MHZ 8TSSOP Rohm Semiconductor
| Brand Name | Rohm Semiconductor |
|---|---|
| Model Number | BR24G16FVJ-3AGTE2 |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Memory Type | Non-Volatile | Memory Format | EEPROM |
|---|---|---|---|
| Technology | EEPROM | Memory Size | 16Kbit |
| Memory Organization | 2K X 8 | Memory Interface | I²C |
| Clock Frequency | 1 MHz | Write Cycle Time - Word, Page | 5ms |
| Access Time | - | Voltage - Supply | 1.6V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C (TA) | Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Supplier Device Package | 8-TSSOP-BJ |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| BR24G16FVJ-3AGTE2 | IC EEPROM 16KBIT I2C 1MHZ 8TSSOP | |
| BR24G02FVJ-3GTE2 | IC EEPROM 2KBIT I2C 8TSSOP | |
| BR24T02FVJ-WE2 | IC EEPROM 2KBIT I2C 8TSSOP | |
| BR24G128FVJ-3AGTE2 | IC EEPROM 128KBIT I2C 8TSSOP | |
| BR24G08FVJ-3GTE2 | IC EEPROM 8KBIT I2C 8TSSOP | |
| BR24G02FVJ-3AGTE2 | IC EEPROM 2KBIT I2C 1MHZ 8TSSOP | |
| BR24G16FVJ-3GTE2 | IC EEPROM 16KBIT I2C 8TSSOP | |
| BR24L02FVJ-WE2 | IC EEPROM 2KBIT I2C 8TSSOP | |
| BR93L46RFVJ-WE2 | IC EEPROM 1KBIT SPI 2MHZ 8TSSOP | |
| BR24T64FVJ-WE2 | IC EEPROM 64KBIT I2C 8TSSOP | |
| BR24T128FVJ-WE2 | IC EEPROM 128KBIT I2C 8TSSOP | |
| BR24G04FVJ-3GTE2 | IC EEPROM 4KBIT I2C 8TSSOP | |
| BR24G08FVJ-3AGTE2 | IC EEPROM 8KBIT I2C 1MHZ 8TSSOP | |
| BR24G32FVJ-3GTE2 | IC EEPROM 32KBIT I2C 8TSSOP | |
| BR24G64FVJ-3GTE2 | IC EEPROM 64KBIT I2C 8TSSOP | |
| BR24G128FVJ-3GTE2 | IC EEPROM 128KBIT I2C 8TSSOP | |
| BR93G46FVJ-3AGTE2 | IC EEPROM 1KBIT SPI 3MHZ 8TSSOP | |
| BR24G04FVJ-3AGTE2 | IC EEPROM 4KBIT I2C 1MHZ 8TSSOP | |
| BR93G86FVJ-3GTE2 | IC EEPROM 16KBIT MIC WIRE 8TSSOP | |
| BR93G86FVJ-3AGTE2 | IC EEPROM 16KBIT MIC WIRE 8TSSOP | |
| BR24T16FVJ-WE2 | IC EEPROM 16KBIT I2C 8TSSOP | |
| BR24L01AFVJ-WE2 | IC EEPROM 1KBIT I2C 8TSSOP | |
| BR24T32FVJ-WE2 | IC EEPROM 32KBIT I2C 8TSSOP | |
| BR25L010FVJ-WE2 | IC EEPROM 1KBIT SPI 5MHZ 8TSSOP | |
| BR25L020FVJ-WE2 | IC EEPROM 2KBIT SPI 5MHZ 8TSSOP | |
| BR25L040FVJ-WE2 | IC EEPROM 4KBIT SPI 5MHZ 8TSSOP | |
| BR25S320FVJ-WE2 | IC EEPROM 32KBIT SPI 8TSSOP | |
| BR25S640FVJ-WE2 | IC EEPROM 64KBIT SPI 8TSSOP | |
| BR93L76RFVJ-WE2 | IC EEPROM 8KBIT SPI 2MHZ 8TSSOP | |
| BR93L86RFVJ-WE2 | IC EEPROM 16KBIT SPI 2MHZ 8TSSOP | |
| BR93L66RFVJ-WE2 | IC EEPROM 4KBIT SPI 2MHZ 8TSSOP | |
| BR24T01FVJ-WE2 | IC EEPROM 1KBIT I2C 8TSSOP | |
| BR24T04FVJ-WE2 | IC EEPROM 4KBIT I2C 8TSSOP | |
| BR24T08FVJ-WE2 | IC EEPROM 8KBIT I2C 8TSSOP | |
| BR93L56RFVJ-WE2 | IC EEPROM 2KBIT SPI 2MHZ 8TSSOP | |
| BR24G32FVJ-3AGTE2 | IC EEPROM 32KBIT I2C 1MHZ 8TSSOP | |
| BR24G64FVJ-3AGTE2 | IC EEPROM 64KBIT I2C 1MHZ 8TSSOP | |
| BR93G66FVJ-3AGTE2 | IC EEPROM 4KBIT SPI 3MHZ 8TSSOP | |
| BR93G66FVJ-3BGTE2 | IC EEPROM 4KBIT SPI 3MHZ 8TSSOP | |
| BR93G56FVJ-3BGTE2 | IC EEPROM 2KBIT MICROWIRE 8TSSOP | |
| BR93G56FVJ-3GTE2 | IC EEPROM 2KBIT MICROWIRE 8TSSOP | |
| BR93G76FVJ-3GTE2 | IC EEPROM 8KBIT MICROWIRE 8TSSOP | |
| BR93G76FVJ-3AGTE2 | IC EEPROM 8KBIT MICROWIRE 8TSSOP | |
| BR93G86FVJ-3BGTE2 | IC EEPROM 16KBIT MIC WIRE 8TSSOP | |
| BR93G56FVJ-3AGTE2 | IC EEPROM 2KBIT MICROWIRE 8TSSOP | |
| BR93G76FVJ-3BGTE2 | IC EEPROM 8KBIT MICROWIRE 8TSSOP | |
| BR24T02FVJ-WGE2 | IC EEPROM 2KBIT I2C 8TSSOP |
Product Description
Product Details
General Description
BR24Gxxx-3A is a serial EEPROM of I2C BUS Interface Method
Features
■ All controls available by 2 ports of serial clock(SCL) andserial data(SDA)
■ Other devices than EEPROM can be connected to the
same port, saving microcontroller port
■ 1.7V to 5.5V Single Power Source Operation most
suitable for battery use
■ 1.7V to 5.5V wide limit of operating voltage, possible
1MHz operation
■ Page Write Mode useful for initial value write at factory
shipment
■ Self-timed Programming Cycle
■ Low Current Consumption
■ Prevention of Write Mistake
➤ Write (Write Protect) Function added
➤ Prevention of Write Mistake at Low Voltage
■ More than 1 million write cycles
■ More than 40 years data retention
■ Noise filter built in SCL / SDA terminal
■ Initial delivery state FFh
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Rohm Semiconductor |
| Product Category | Memory ICs |
| Series | BR24G16-3A |
| Packaging | Alternate Packaging |
| Mounting-Style | SMD/SMT |
| Package-Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Operating-Temperature | -40°C ~ 85°C (TA) |
| Interface | I2C, 2-Wire Serial |
| Voltage-Supply | 1.6 V ~ 5.5 V |
| Supplier-Device-Package | 8-TSSOP-BJ |
| Memory Capacity | 16K (2K x 8) |
| Memory-Type | EEPROM |
| Speed | 1MHz |
| Format-Memory | EEPROMs - Serial |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Operating-Supply-Voltage | 1.6 V to 5.5 V |
| Operating-Supply-Current | 2 mA |
| Interface-Type | Serial 2-Wire I2C |
| Organization | 2 k x 8 |
| Supply-Current-Max | 2 mA |
| Supply-Voltage-Max | 5.5 V |
| Supply-Voltage-Min | 1.6 V |
| Package-Case | TSSOP-B8J |
| Maximum-Clock-Frequency | 1 MHz |
| Data-Retention | 40 Years |
Descriptions
EEPROM Memory IC 16Kb (2K x 8) I?C 1MHz 8-TSSOP-BJ
EEPROM I2C BUS 16K 2048 8bit EEPROM
