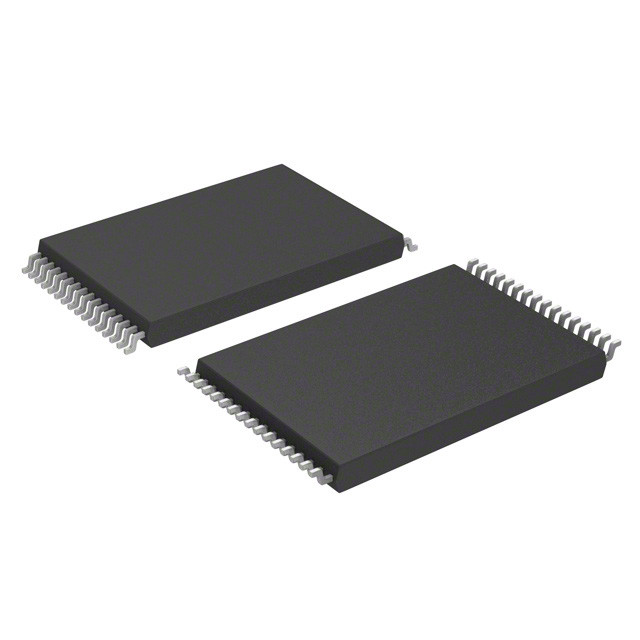

IS62C1024AL-35TLI IC SRAM 1MBIT PARALLEL 32TSOP I ISSI, Integrated Silicon Solution Inc
| Brand Name | ISSI, Integrated Silicon Solution Inc |
|---|---|
| Model Number | IS62C1024AL-35TLI |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Memory Type | Volatile | Memory Format | SRAM |
|---|---|---|---|
| Technology | SRAM - Asynchronous | Memory Size | 1Mbit |
| Memory Organization | 128K X 8 | Memory Interface | Parallel |
| Clock Frequency | - | Write Cycle Time - Word, Page | 35ns |
| Access Time | 35 Ns | Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C (TA) | Mounting Type | Surface Mount |
| Package / Case | 32-TFSOP (0.724", 18.40mm Width) | Supplier Device Package | 32-TSOP I |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| IS62C1024AL-35TLI | IC SRAM 1MBIT PARALLEL 32TSOP I | |
| IS62WV2568BLL-55TLI | IC SRAM 2MBIT PARALLEL 32TSOP I | |
| IS62WV5128EBLL-45HLI | IC SRAM 4MBIT PARALLEL 32TSOP I | |
| IS62WV1288BLL-55TLI | IC SRAM 1MBIT PARALLEL 32TSOP I | |
| IS61C1024AL-12TLI | IC SRAM 1MBIT PARALLEL 32TSOP I | |
| IS62C1024AL-35TLI-TR | IC SRAM 1MBIT PARALLEL 32TSOP I | |
| FM28V100-TGTR | IC FRAM 1MBIT PARALLEL 32TSOP I | |
| FM28V100-TG | IC FRAM 1MBIT PARALLEL 32TSOP I | |
| IS62WV1288BLL-55TLI-TR | IC SRAM 1MBIT PARALLEL 32TSOP I | |
| IS62WV1288FBLL-45TLI-TR | IC SRAM 1MBIT PARALLEL 32TSOP I | |
| IS62WV1288FBLL-45TLI | IC SRAM 1MBIT PARALLEL 32TSOP I | |
| IS61C1024AL-12TLI-TR | IC SRAM 1MBIT PARALLEL 32TSOP I | |
| IS62WV2568BLL-55TLI-TR | IC SRAM 2MBIT PARALLEL 32TSOP I | |
| IS62WV2568EBLL-45HLI-TR | IC SRAM 2MBIT PARALLEL 32TSOP I | |
| IS62WV2568EBLL-45TLI-TR | IC SRAM 2MBIT PARALLEL 32TSOP I | |
| IS62WV2568EBLL-45HLI | IC SRAM 2MBIT PARALLEL 32TSOP I | |
| IS62WV2568EBLL-45TLI | IC SRAM 2MBIT PARALLEL 32TSOP I | |
| IS62WV5128EBLL-45HLI-TR | IC SRAM 4MBIT PARALLEL 32TSOP I | |
| IS62WV5128EBLL-45TLI-TR | IC SRAM 4MBIT PARALLEL 32TSOP I | |
| IS62WV5128EBLL-45TLI | IC SRAM 4MBIT PARALLEL 32TSOP I | |
| IS62WV5128BLL-55TLI-TR | IC SRAM 4MBIT PARALLEL 32TSOP I | |
| IS62WV5128BLL-55TLI | IC SRAM 4MBIT PARALLEL 32TSOP I | |
| IS65C1024AL-45TLA3-TR | IC SRAM 1MBIT PARALLEL 32TSOP I | |
| IS62WV5128EALL-55TLI-TR | IC SRAM 4MBIT PARALLEL 32TSOP I | |
| IS65C1024AL-45TLA3 | IC SRAM 1MBIT PARALLEL 32TSOP I | |
| IS62WV5128EALL-55TLI | IC SRAM 4MBIT PARALLEL 32TSOP I | |
| IS61C1024AL-12TI | IC SRAM 1MBIT PARALLEL 32TSOP I | |
| IS61C1024AL-12TI-TR | IC SRAM 1MBIT PARALLEL 32TSOP I | |
| IS62C1024AL-35TI | IC SRAM 1MBIT PARALLEL 32TSOP I | |
| IS62C1024AL-35TI-TR | IC SRAM 1MBIT PARALLEL 32TSOP I | |
| IS62WV1288BLL-55TI | IC SRAM 1MBIT PARALLEL 32TSOP I | |
| IS62WV1288BLL-55TI-TR | IC SRAM 1MBIT PARALLEL 32TSOP I | |
| IS62WV5128BLL-55TI | IC SRAM 4MBIT PARALLEL 32TSOP I | |
| IS62WV5128BLL-55TI-TR | IC SRAM 4MBIT PARALLEL 32TSOP I | |
| IS62WV1288DBLL-45TLI | IC SRAM 1MBIT PARALLEL 32TSOP I | |
| IS62WV1288DBLL-45TLI-TR | IC SRAM 1MBIT PARALLEL 32TSOP I | |
| IS65WV1288DBLL-45TLA3 | IC SRAM 1MBIT PARALLEL 32TSOP I | |
| IS65WV1288DBLL-45TLA3-TR | IC SRAM 1MBIT PARALLEL 32TSOP I | |
| IS62WV5128DALL-55HLI | IC SRAM 4MBIT PARALLEL 32TSOP I | |
| IS62WV5128DALL-55HLI-TR | IC SRAM 4MBIT PARALLEL 32TSOP I | |
| IS65WV1288FBLL-45TLA3-TR | IC SRAM 1MBIT PARALLEL 32TSOP I | |
| IS65WV1288FBLL-45TLA3 | IC SRAM 1MBIT PARALLEL 32TSOP I | |
| IS65WV1288FBLL-55CTLA3 | IC SRAM 1MBIT PARALLEL 32TSOP I | |
| IS65WV1288FBLL-55CTLA3-TR | IC SRAM 1MBIT PARALLEL 32TSOP I |
Product Description
Product Details
DESCRIPTION
TheISSIIS62C1024AL/IS65C1024AL is a low power, 131,072-word by 8-bit CMOS static RAM. It is fabricated using high performance CMOS technology. This highly reliable process coupled with innovative circuit design techniques, yields higher performance and low power consumption devices.WhenCE1is HIGH or CE2 is LOW (deselected), the device assumes a standby mode at which the power dissipation can be reduced by using CMOS input levels.
Easy memory expansion is provided by using two Chip Enable inputs,CE1and CE2. The active LOW Write Enable (WE) controls both writing and reading of the memory.
FEATURES
• High-speed access time: 35, 45 ns• Low active power: 100 mW (typical)
• Low standby power: 20 µW (typical) CMOS standby
• Output Enable (OE) and two Chip Enable
(CE1 and CE2) inputs for ease in applications
• Fully static operation: no clock or refresh required
• TTL compatible inputs and outputs
• Single 5V (±10%) power supply
• Commercial, Industrial, and Automotive temperature ranges available
• Standard Pin Configuration:
— 32-pin SOP/ 32-pin TSOP (Type 1)
• Lead free available
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | ISSI |
| Product Category | Memory ICs |
| Series | IS62C1024AL |
| Type | Asynchronous |
| Packaging | Tray Alternate Packaging |
| Mounting-Style | SMD/SMT |
| Package-Case | 32-TFSOP (0.724", 18.40mm Width) |
| Operating-Temperature | -40°C ~ 85°C (TA) |
| Interface | Parallel |
| Voltage-Supply | 4.5 V ~ 5.5 V |
| Supplier-Device-Package | 32-TSOP I |
| Memory Capacity | 1M (128K x 8) |
| Memory-Type | SRAM - Asynchronous |
| Speed | 35ns |
| Data-Rate | SDR |
| Access-Time | 35 ns |
| Format-Memory | RAM |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Interface-Type | Parallel |
| Organization | 128 k x 8 |
| Supply-Current-Max | 10 uA |
| Supply-Voltage-Max | 5.5 V |
| Supply-Voltage-Min | 4.5 V |
| Package-Case | TSOP-32 |
| Maximum-Clock-Frequency | 28 MHz |
| Mfr | ISSI Integrated Silicon Solution Inc |
| Series | - |
| Package | Tray |
| Product-Status | Active |
| Memory-Type | Volatile |
| Memory-Format | SRAM |
| Technology | SRAM - Asynchronous |
| Memory-Size | 1Mb (128K x 8) |
| Memory-Interface | Parallel |
| Write-Cycle-Time-Word-Page | 35ns |
| Voltage-Supply | 4．5V ~ 5．5V |
| Mounting-Type | Surface Mount |
| Package-Case | 32-TFSOP (0．724" 18．40mm Width) |
| Base-Product-Number | IS62C1024 |
Functional compatible component
Form,Package,Functional compatible component
| Manufacturer Part# | Description | Manufacturer | Compare |
| IS62C1024AL-35TI Memory |
Standard SRAM, 128KX8, 35ns, CMOS, PDSO32, 20 X 8 MM, TSOP1-32 | Integrated Silicon Solution Inc | IS62C1024AL-35TLI vs IS62C1024AL-35TI |
| IS62C1024AL-35T Memory |
Standard SRAM, 128KX8, 35ns, CMOS, PDSO32, 20 X 8 MM, TSOP1-32 | Integrated Silicon Solution Inc | IS62C1024AL-35TLI vs IS62C1024AL-35T |
Descriptions
SRAM Chip Async Single 5V 1M-Bit 128K x 8 35ns 32-Pin TSOP-I
SRAM 1Mb 128K x 8 35ns 5v Async SRAM 5v
