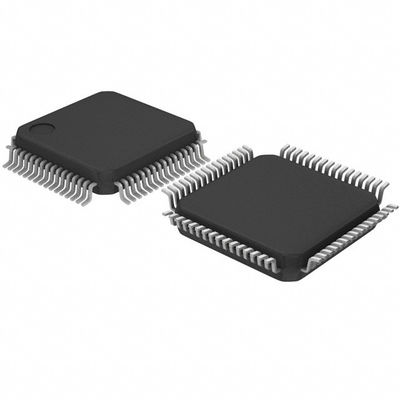

CY7C144AV-25AXC IC SRAM 64KBIT PARALLEL 64TQFP Cypress Semiconductor Corp



Functional Description

The CY7C144AV and CY7C006AV are low-power CMOS 8K/16K x 8 dual-port static RAMs. Various arbitration schemes are included on the devices to handle situations when multiple processors access the same piece of data. Two ports are provided, permitting independent, asynchronous access for reads and writes to any location in memory.





Features

■ True dual-ported memory cells which allow simultaneous access of the same memory location
■ 8K/16K x 8 organizations (CY7C144AV/006AV)
■ 0.35-micron complementary metal oxide semiconductor (CMOS) for optimum speed/power
■ High-speed access: 25 ns
■ Low operating power
— Active: ICC = 115 mA (typical)
— Standby: ISB3 = 10 μA (typical)
■ Fully asynchronous operation
■ Automatic power-down
■ Expandable data bus to 16 bits or more using Master/ Slave chip select when using more than one device
■ On-chip arbitration logic
■ Semaphores included to permit software handshaking between ports
■ INT flag for port-to-port communication
■ Pin select for Master or Slave
■ Commercial and industrial temperature ranges
■ Available in 64-pin thin quad flat pack (TQFP) (7C006AV & 7C144AV)
■ Pb-free packages available
