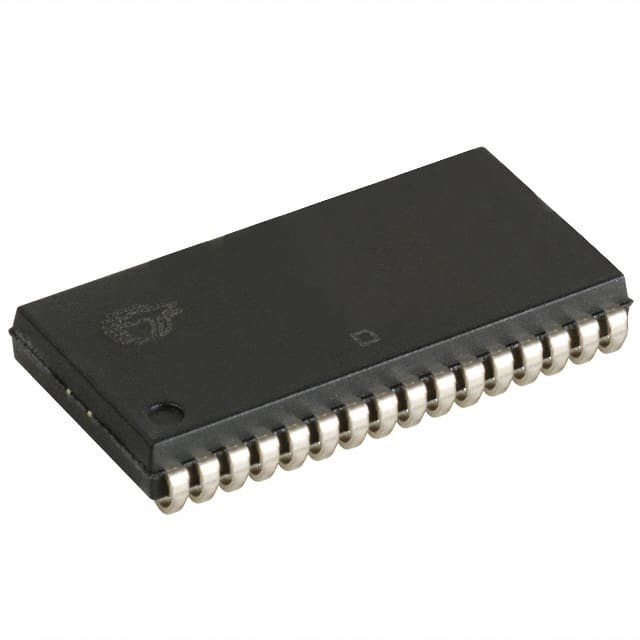

CY7C1019DV33-10VXI IC SRAM 1MBIT PARALLEL 32SOJ Infineon Technologies
| Brand Name | Infineon Technologies |
|---|---|
| Model Number | CY7C1019DV33-10VXI |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Memory Type | Volatile | Memory Format | SRAM |
|---|---|---|---|
| Technology | SRAM - Asynchronous | Memory Size | 1Mbit |
| Memory Organization | 128K X 8 | Memory Interface | Parallel |
| Clock Frequency | - | Write Cycle Time - Word, Page | 10ns |
| Access Time | 10 Ns | Voltage - Supply | 3V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C (TA) | Mounting Type | Surface Mount |
| Package / Case | 32-BSOJ (0.400", 10.16mm Width) | Supplier Device Package | 32-SOJ |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| CY7C1019DV33-10VXI | IC SRAM 1MBIT PARALLEL 32SOJ | |
| CY7C1018DV33-10VXI | IC SRAM 1MBIT PARALLEL 32SOJ | |
| CY7C1009D-10VXI | IC SRAM 1MBIT PARALLEL 32SOJ | |
| CY7C1019D-10VXIT | IC SRAM 1MBIT PARALLEL 32SOJ | |
| CY7C109D-10VXIT | IC SRAM 1MBIT PARALLEL 32SOJ | |
| CY7C1018DV33-10VXIT | IC SRAM 1MBIT PARALLEL 32SOJ | |
| CY7C1009D-10VXIT | IC SRAM 1MBIT PARALLEL 32SOJ | |
| CY7C1019DV33-10VXIT | IC SRAM 1MBIT PARALLEL 32SOJ | |
| CY7C109BNL-15VC | IC SRAM 1MBIT PARALLEL 32SOJ | |
| CY7C1019D-10VXI | IC SRAM 1MBIT PARALLEL 32SOJ | |
| CY7C109D-10VXI | IC SRAM 1MBIT PARALLEL 32SOJ | |
| CY7C188-20VC | IC SRAM 288KBIT PARALLEL 32SOJ | |
| CY7C1018CV33-12VXI | IC SRAM 1MBIT PARALLEL 32SOJ | |
| CY7C1009BN-15VI | IC SRAM 1MBIT PARALLEL 32SOJ | |
| CY7C109D-10VXI | IC SRAM 1MBIT PARALLEL 32SOJ | |
| CY7C1019D-10VXI | STANDARD SRAM, 128KX8, 10NS, CMO | |
| CY7C1046DV33-10VXI | IC SRAM 4MBIT PARALLEL 32SOJ | |
| CY7C1046D-10VXI | IC SRAM 4MBIT PARALLEL 32SOJ | |
| CY7C1009B-12VC | IC SRAM 1MBIT PARALLEL 32SOJ | |
| CY7C1009B-15VC | IC SRAM 1MBIT PARALLEL 32SOJ | |
| CY7C1009B-20VC | IC SRAM 1MBIT PARALLEL 32SOJ | |
| CY7C1019B-12VC | IC SRAM 1MBIT PARALLEL 32SOJ | |
| CY7C109B-12VC | IC SRAM 1MBIT PARALLEL 32SOJ | |
| CY7C109B-15VC | IC SRAM 1MBIT PARALLEL 32SOJ | |
| CY7C109B-20VC | IC SRAM 1MBIT PARALLEL 32SOJ | |
| CY7C1019CV33-12VC | IC SRAM 1MBIT PARALLEL 32SOJ | |
| CY7C109B-15VXC | IC SRAM 1MBIT PARALLEL 32SOJ | |
| CY7C1009B-15VXC | IC SRAM 1MBIT PARALLEL 32SOJ | |
| CY7C1009B-12VXC | IC SRAM 1MBIT PARALLEL 32SOJ | |
| CY7C1009B-20VXC | IC SRAM 1MBIT PARALLEL 32SOJ | |
| CY7C1009B-15VXCT | IC SRAM 1MBIT PARALLEL 32SOJ | |
| CY7C1009B-15VXI | IC SRAM 1MBIT PARALLEL 32SOJ | |
| CY7C1018CV33-12VXI | IC SRAM 1MBIT PARALLEL 32SOJ | |
| CY7C1018CV33-12VXIT | IC SRAM 1MBIT PARALLEL 32SOJ | |
| CY7C109BNL-15VC | IC SRAM 1MBIT PARALLEL 32SOJ | |
| CY7C188-20VC | IC SRAM 288KBIT PARALLEL 32SOJ | |
| CY7C1009BN-15VI | IC SRAM 128KX8 PD ASYNC 32-SOJ |
Product Description
Product Details
Features
• Pin- and function-compatible with CY7C1019CV33• High speed
— tAA = 10 ns
• Low Active Power
— ICC = 60 mA @ 10 ns
• Low CMOS Standby Power
— ISB2 = 3 mA
• 2.0V Data retention
• Automatic power-down when deselected
• CMOS for optimum speed/power
• Center power/ground pinout
• Easy memory expansion with CE and OE options
• Available in Pb-free 32-pin 400-Mil wide Molded SOJ,
32-pin TSOP II and 48-ball VFBGA packages
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Cypress Semiconductor |
| Product Category | Memory ICs |
| Series | - |
| Packaging | Tube Alternate Packaging |
| Package-Case | 32-BSOJ (0.400", 10.16mm Width) |
| Operating-Temperature | -40°C ~ 85°C (TA) |
| Interface | Parallel |
| Voltage-Supply | 3 V ~ 3.6 V |
| Supplier-Device-Package | 32-SOJ |
| Memory Capacity | 1M (128K x 8) |
| Memory-Type | SRAM - Asynchronous |
| Speed | 10ns |
| Format-Memory | RAM |
Descriptions
SRAM - Asynchronous Memory IC 1Mb (128K x 8) Parallel 10ns 32-SOJ
SRAM Chip Async Single 3.3V 1M-bit 128K x 8 10ns 32-Pin SOJ Tube
