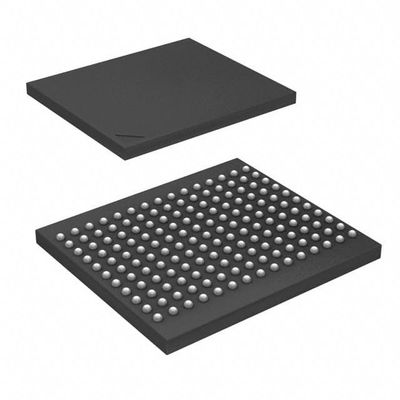

IS61NLP25618A-200B3LI-TR IC SRAM 4.5MBIT PARALLEL 165PBGA ISSI, Integrated Silicon Solution Inc
| Brand Name | ISSI, Integrated Silicon Solution Inc |
|---|---|
| Model Number | IS61NLP25618A-200B3LI-TR |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Memory Type | Volatile | Memory Format | SRAM |
|---|---|---|---|
| Technology | SRAM - Synchronous, SDR | Memory Size | 4.5Mbit |
| Memory Organization | 256K X 18 | Memory Interface | Parallel |
| Clock Frequency | 200 MHz | Write Cycle Time - Word, Page | - |
| Access Time | 3.1 Ns | Voltage - Supply | 3.135V ~ 3.465V |
| Operating Temperature | -40°C ~ 85°C (TA) | Mounting Type | Surface Mount |
| Package / Case | 165-TBGA | Supplier Device Package | 165-PBGA (13x15) |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| IS61NLP25618A-200B3LI-TR | IC SRAM 4.5MBIT PARALLEL 165PBGA | |
| IS61NLP25618A-200B3LI | IC SRAM 4.5MBIT PARALLEL 165PBGA | |
| IS61LPD51236A-250B3LI-TR | IC SRAM 18MBIT PARALLEL 165PBGA | |
| IS61LPD51236A-250B3LI | IC SRAM 18MBIT PARALLEL 165PBGA | |
| IS61LPD51236A-200B3 | IC SRAM 18MBIT PARALLEL 165PBGA | |
| IS61LPD51236A-200B3-TR | IC SRAM 18MBIT PARALLEL 165PBGA | |
| IS61VPS51236A-250B3 | IC SRAM 18MBIT PARALLEL 165PBGA | |
| IS61VPS51236A-250B3-TR | IC SRAM 18MBIT PARALLEL 165PBGA | |
| IS61NLP25618A-200B3I | IC SRAM 4.5MBIT PARALLEL 165PBGA | |
| IS61NLP25618A-200B3I-TR | IC SRAM 4.5MBIT PARALLEL 165PBGA | |
| IS61LPD102418A-200B3I-TR | IC SRAM 18MBIT PARALLEL 165PBGA | |
| IS61LPD102418A-250B3I-TR | IC SRAM 18MBIT PARALLEL 165PBGA | |
| IS61LPD102418A-250B3-TR | IC SRAM 18MBIT PARALLEL 165PBGA | |
| IS61LPD51236A-200B3I-TR | IC SRAM 18MBIT PARALLEL 165PBGA | |
| IS61LPD51236A-250B3I-TR | IC SRAM 18MBIT PARALLEL 165PBGA | |
| IS61LPD51236A-250B3-TR | IC SRAM 18MBIT PARALLEL 165PBGA | |
| IS61VPD102418A-200B3I-TR | IC SRAM 18MBIT PARALLEL 165PBGA | |
| IS61VPD102418A-200B3-TR | IC SRAM 18MBIT PARALLEL 165PBGA | |
| IS61VPD102418A-250B3I-TR | IC SRAM 18MBIT PARALLEL 165PBGA | |
| IS61VPD102418A-250B3-TR | IC SRAM 18MBIT PARALLEL 165PBGA | |
| IS61VPD51236A-200B3I-TR | IC SRAM 18MBIT PARALLEL 165PBGA | |
| IS61VPD51236A-200B3-TR | IC SRAM 18MBIT PARALLEL 165PBGA | |
| IS61VPD51236A-250B3I-TR | IC SRAM 18MBIT PARALLEL 165PBGA | |
| IS61VPD51236A-250B3-TR | IC SRAM 18MBIT PARALLEL 165PBGA | |
| IS61LPD102418A-200B3I | IC SRAM 18MBIT PARALLEL 165PBGA | |
| IS61LPD102418A-250B3 | IC SRAM 18MBIT PARALLEL 165PBGA | |
| IS61LPD102418A-250B3I | IC SRAM 18MBIT PARALLEL 165PBGA | |
| IS61LPD51236A-200B3I | IC SRAM 18MBIT PARALLEL 165PBGA | |
| IS61LPD51236A-250B3 | IC SRAM 18MBIT PARALLEL 165PBGA | |
| IS61LPD51236A-250B3I | IC SRAM 18MBIT PARALLEL 165PBGA | |
| IS61VPD102418A-200B3 | IC SRAM 18MBIT PARALLEL 165PBGA | |
| IS61VPD102418A-200B3I | IC SRAM 18MBIT PARALLEL 165PBGA | |
| IS61VPD102418A-250B3 | IC SRAM 18MBIT PARALLEL 165PBGA | |
| IS61VPD102418A-250B3I | IC SRAM 18MBIT PARALLEL 165PBGA | |
| IS61VPD51236A-200B3 | IC SRAM 18MBIT PARALLEL 165PBGA | |
| IS61VPD51236A-200B3I | IC SRAM 18MBIT PARALLEL 165PBGA | |
| IS61VPD51236A-250B3 | IC SRAM 18MBIT PARALLEL 165PBGA | |
| IS61VPD51236A-250B3I | IC SRAM 18MBIT PARALLEL 165PBGA | |
| IS61LPS12836A-200B3I | IC SRAM 4MBIT PARALLEL 165PBGA |
Product Description
Product Details
DESCRIPTION
The 4 Meg NLP/NVP product family feature high-speed, low-power synchronous static RAMs designed to provide a burstable, high-performance, no wait state, device for networking and communications applications. They are organized as 128K words by 32 bits, 128K words by 36 bits, and 256K words by 18 bits, fabricated with ISSIs advanced CMOS technology.
FEATURES
• 100 percent bus utilization• No wait cycles between Read and Write
• Internal self-timed write cycle
• Individual Byte Write Control
• Single R/W (Read/Write) control pin
• Clock controlled, registered address, data and control
• Interleaved or linear burst sequence control using MODE input
• Three chip enables for simple depth expansion and address pipelining
• Power Down mode
• Common data inputs and data outputs
• CKE pin to enable clock and suspend operation
• JEDEC 100-pin TQFP, 165-ball PBGA and 119- ball PBGA packages
• Power supply:
NVP: Vdd 2.5V (± 5%), Vddq 2.5V (± 5%)
NLP: Vdd 3.3V (± 5%), Vddq 3.3V/2.5V (± 5%)
• Industrial temperature available
• Lead-free available
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | ISSI |
| Product Category | Memory ICs |
| Series | IS61NLP25618A |
| Type | Synchronous |
| Packaging | Tape & Reel (TR) Alternate Packaging |
| Mounting-Style | SMD/SMT |
| Package-Case | 165-TFBGA |
| Operating-Temperature | -40°C ~ 85°C (TA) |
| Interface | Parallel |
| Voltage-Supply | 3.135 V ~ 3.465 V |
| Supplier-Device-Package | 165-BGA (13x15) |
| Memory Capacity | 4.5M (256K x 18) |
| Memory-Type | SRAM - Synchronous |
| Speed | 200MHz |
| Data-Rate | SDR |
| Access-Time | 3.1 ns |
| Format-Memory | RAM |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Interface-Type | Parallel |
| Organization | 256 k x 18 |
| Supply-Current-Max | 210 mA |
| Supply-Voltage-Max | 3.465 V |
| Supply-Voltage-Min | 3.135 V |
| Package-Case | BGA-165 |
| Maximum-Clock-Frequency | 200 MHz |
Descriptions
SRAM - Synchronous Memory IC 4.5Mb (256K x 18) Parallel 200MHz 3.1ns 165-BGA (13x15)
SRAM Chip Sync Dual 3.3V 4M-Bit 256K x 18 3.1ns 165-Pin BGA T/R
SRAM 4M (256Kx18) 200MHz Sync SRAM 3.3v
