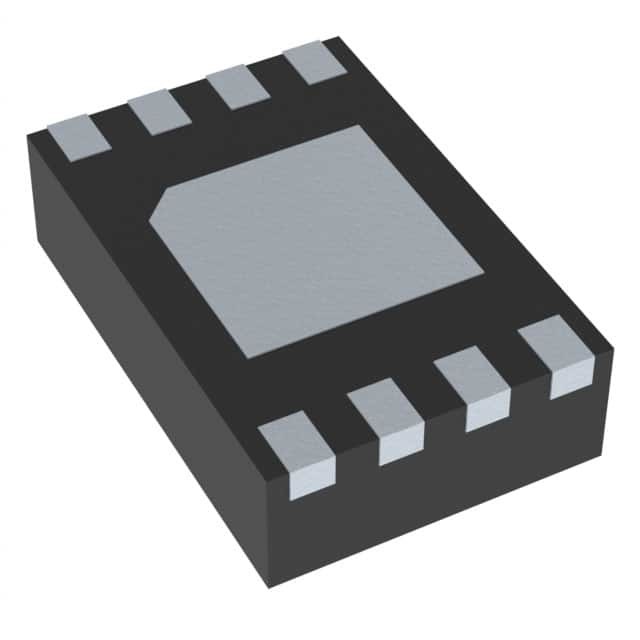

CAT34C02VP2IGT4A IC EEPROM 2KBIT I2C 400KHZ 8TDFN onsemi
| Brand Name | onsemi |
|---|---|
| Model Number | CAT34C02VP2IGT4A |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Memory Type | Non-Volatile | Memory Format | EEPROM |
|---|---|---|---|
| Technology | EEPROM | Memory Size | 2Kbit |
| Memory Organization | 256 X 8 | Memory Interface | I²C |
| Clock Frequency | 400 KHz | Write Cycle Time - Word, Page | 5ms |
| Access Time | 900 Ns | Voltage - Supply | 1.7V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C (TA) | Mounting Type | Surface Mount |
| Package / Case | 8-WFDFN Exposed Pad | Supplier Device Package | 8-TDFN (2x3) |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| CAT34C02VP2IGT4A | IC EEPROM 2KBIT I2C 400KHZ 8TDFN | |
| CAT25040VP2I-GT3 | IC EEPROM 4KBIT SPI 8TDFN | |
| CAT25128VP2I-GT3 | IC EEPROM 128KBIT SPI 8TDFN | |
| CAT34C02VP2I-GT4 | IC EEPROM 2KBIT I2C 400KHZ 8TDFN | |
| CAT93C46RVP2IGT3 | IC EEPROM 1KBIT MICROWIRE 8TDFN | |
| CAT24C02VP2I-GT3 | IC EEPROM 2KBIT I2C 400KHZ 8TDFN | |
| CAT24C64VP2I-GT3 | IC EEPROM 64KBIT I2C 1MHZ 8TDFN | |
| CAT24C164VP2IGT3 | IC EEPROM 16KBIT I2C 8TDFN | |
| CAT25640VP2I-GT3 | IC EEPROM 64KBIT SPI 10MHZ 8TDFN | |
| CAT93C46VP2I-GT3 | IC EEPROM 1KBIT MICROWIRE 8TDFN | |
| CAT25080VP2I-GT3 | IC EEPROM 8KBIT SPI 8TDFN | |
| CAT24C05VP2I-GT3 | IC EEPROM 4KBIT I2C 400KHZ 8TDFN | |
| CAT25320VP2I-GT3 | IC EEPROM 32KBIT SPI 10MHZ 8TDFN | |
| CAT24C08VP2I-GT3 | IC EEPROM 8KBIT I2C 400KHZ 8TDFN | |
| CAT24C04VP2I-GT3 | IC EEPROM 4KBIT I2C 400KHZ 8TDFN | |
| CAT24C16VP2I-GT3 | IC EEPROM 16KBIT I2C 8TDFN | |
| CAT24C01VP2I-GT3 | IC EEPROM 1KBIT I2C 400KHZ 8TDFN | |
| CAT25160VP2I-GT3 | IC EEPROM 16KBIT SPI 10MHZ 8TDFN | |
| CAT24C03VP2I-GT3 | IC EEPROM 2KBIT I2C 400KHZ 8TDFN | |
| CAT24C256ZD2IGT2 | IC EEPROM 256KBIT I2C 1MHZ 8TDFN | |
| CAT25010VP2I-GT3 | IC EEPROM 1KBIT SPI 8TDFN | |
| CAT25020VP2I-GT3 | IC EEPROM 2KBIT SPI 10MHZ 8TDFN | |
| CAT25256ZD2I-GT2 | IC EEPROM 256KBIT SPI 8TDFN | |
| CAT24C02VP2IGT3A | IC EEPROM 2KBIT I2C 400KHZ 8TDFN | |
| CAT24C32VP2I-GT3 | IC EEPROM 32KBIT I2C 1MHZ 8TDFN | |
| CAT93C56VP2I-GT3 | IC EEPROM 2KBIT MICROWIRE 8TDFN | |
| CAT93C66VP2I-GT3 | IC EEPROM 4KBIT MICROWIRE 8TDFN | |
| CAT25640VP2IGT3E | IC EEPROM 64KBIT SPI 10MHZ 8TDFN | |
| CAT25040VP2IGT3D | IC EEPROM 4KBIT SPI 8TDFN | |
| CAT25160VP2IGT3C | IC EEPROM 16KBIT SPI 10MHZ 8TDFN | |
| CAT25640VP2I-GE | IC EEPROM 64KBIT SPI 10MHZ 8TDFN | |
| CAT25020VP2IGT3D | IC EEPROM 2KBIT SPI 8TDFN | |
| CAT25010VP2IGT3D | IC EEPROM 1KBIT SPI 8TDFN | |
| CAT25080VP2IGT3C | IC EEPROM 8KBIT SPI 8TDFN | |
| CAT25128VP2IGT3D | IC EEPROM 128KBIT SPI 8TDFN |
Product Description
Product Details
DESCRIPTION
The CAT34WC02 is a 2-kb Serial CMOS EEPROM internally organized as 256 words of 8 bits each. Catalyst’s advanced CMOS technology substantially reduces device power requirements. The CAT34WC02 features a 16-byte page write buffer. The device operates via the I2C bus serial interface and is available in an 8-pin TSSOP package.
FEATURES
■ 400 kHz (5 V) and 100 kHz (1.7 V) I2C bus compatible■ 1.7 to 5.5 volt operation
■ Low power CMOS technology
■ 16-byte page write buffer
■ Industrial temperature range
■ Self-timed write cycle with auto-clear
■ Software write protection for lower 128 bytes
■ 1,000,000 program/erase cycles
■ 100 year data retention
■ 8-pin TSSOP package
- “Green” package option available
■ 256 x 8 memory organization
■ Hardware write protect
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | onsemi |
| Product Category | Memory ICs |
| Series | CAT34C02 |
| Packaging | Tape & Reel (TR) |
| Mounting-Style | SMD/SMT |
| Package-Case | 8-WFDFN Exposed Pad |
| Operating-Temperature | -40°C ~ 85°C (TA) |
| Interface | I2C, 2-Wire Serial |
| Voltage-Supply | 1.7 V ~ 5.5 V |
| Supplier-Device-Package | 8-TDFN (2x3) |
| Memory Capacity | 2K (256 x 8) |
| Memory-Type | EEPROM |
| Speed | 400kHz |
| Access-Time | 900 ns |
| Format-Memory | EEPROMs - Serial |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Operating-Supply-Voltage | 1.7 V to 5.5 V |
| Operating-Supply-Current | 2 mA |
| Interface-Type | Serial 2-Wire I2C |
| Organization | 256 x 8 |
| Supply-Current-Max | 1 mA 2 mA |
| Supply-Voltage-Max | 5.5 V |
| Supply-Voltage-Min | 1.7 V |
| Package-Case | TDFN-8 |
| Maximum-Clock-Frequency | 100 kHz 400 kHz |
| Data-Retention | 100 Years |
Descriptions
EEPROM Memory IC 2Kb (256 x 8) I?C 400kHz 900ns 8-TDFN (2x3)
EEPROM Serial-I2C 2K-bit 256 x 8 1.8V/2.5V/3.3V/5V 8-Pin TDFN EP T/R
EEPROM 2KB I2C SER EEPROM SPD
