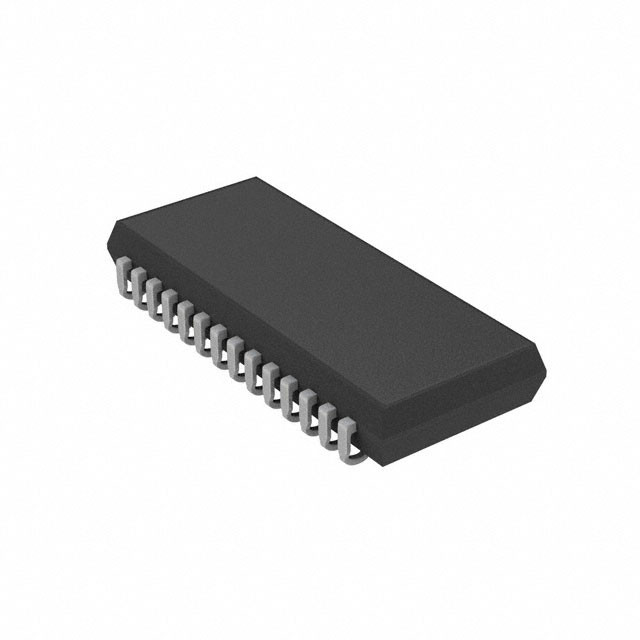

AS7C256A-12JCN IC SRAM 256KBIT PARALLEL 28SOJ Alliance Memory, Inc.
| Brand Name | Alliance Memory, Inc. |
|---|---|
| Model Number | AS7C256A-12JCN |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Memory Type | Volatile | Memory Format | SRAM |
|---|---|---|---|
| Technology | SRAM - Asynchronous | Memory Size | 256Kbit |
| Memory Organization | 32K X 8 | Memory Interface | Parallel |
| Clock Frequency | - | Write Cycle Time - Word, Page | 12ns |
| Access Time | 12 Ns | Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | 0°C ~ 70°C (TA) | Mounting Type | Surface Mount |
| Package / Case | 28-BSOJ (0.300", 7.62mm Width) | Supplier Device Package | 28-SOJ |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| AS7C256A-12JCN | IC SRAM 256KBIT PARALLEL 28SOJ | |
| AS7C256A-10JCN | IC SRAM 256KBIT PARALLEL 28SOJ | |
| AS7C3256A-12JCN | IC SRAM 256KBIT PARALLEL 28SOJ | |
| AS7C3256A-10JCN | IC SRAM 256KBIT PARALLEL 28SOJ | |
| AS7C256A-10JCNTR | IC SRAM 256KBIT PARALLEL 28SOJ | |
| AS7C256A-12JCNTR | IC SRAM 256KBIT PARALLEL 28SOJ | |
| AS7C256A-15JCNTR | IC SRAM 256KBIT PARALLEL 28SOJ | |
| AS7C3256A-10JCNTR | IC SRAM 256KBIT PARALLEL 28SOJ | |
| AS7C3256A-10JINTR | IC SRAM 256KBIT PARALLEL 28SOJ | |
| AS7C3256A-12JCNTR | IC SRAM 256KBIT PARALLEL 28SOJ | |
| AS7C3256A-15JCNTR | IC SRAM 256KBIT PARALLEL 28SOJ | |
| AS7C256A-15JCN | IC SRAM 256KBIT PARALLEL 28SOJ | |
| AS7C3256A-15JCN | IC SRAM 256KBIT PARALLEL 28SOJ | |
| AS7C3256A-15JINTR | IC SRAM 256KBIT PARALLEL 28SOJ | |
| AS7C3256A-20JCNTR | IC SRAM 256KBIT PARALLEL 28SOJ | |
| AS7C3256A-10JIN | IC SRAM 256KBIT PARALLEL 28SOJ | |
| AS7C3256A-12JIN | IC SRAM 256KBIT PARALLEL 28SOJ | |
| AS7C3256A-15JIN | IC SRAM 256KBIT PARALLEL 28SOJ | |
| AS7C3256A-20JCN | IC SRAM 256KBIT PARALLEL 28SOJ | |
| AS7C256A-10JINTR | IC SRAM 256KBIT PARALLEL 28SOJ | |
| AS7C256A-12JINTR | IC SRAM 256KBIT PARALLEL 28SOJ | |
| AS7C256A-15JINTR | IC SRAM 256KBIT PARALLEL 28SOJ | |
| AS7C256A-20JCNTR | IC SRAM 256KBIT PARALLEL 28SOJ | |
| AS7C3256A-12JINTR | IC SRAM 256KBIT PARALLEL 28SOJ | |
| AS7C3256A-20JINTR | IC SRAM 256KBIT PARALLEL 28SOJ | |
| AS7C256A-10JIN | IC SRAM 256KBIT PARALLEL 28SOJ | |
| AS7C256A-12JIN | IC SRAM 256KBIT PARALLEL 28SOJ | |
| AS7C256A-15JIN | IC SRAM 256KBIT PARALLEL 28SOJ | |
| AS7C256A-20JCN | IC SRAM 256KBIT PARALLEL 28SOJ | |
| AS7C256A-20JINTR | IC SRAM 256KBIT PARALLEL 28SOJ | |
| AS7C3256A-20JIN | IC SRAM 256KBIT PARALLEL 28SOJ | |
| AS7C164A-15JCNTR | IC SRAM 64KBIT PARALLEL 28SOJ | |
| AS7C256A-20JIN | IC SRAM 256KBIT PARALLEL 28SOJ | |
| AS7C164A-15JCN | IC SRAM 64KBIT PARALLEL 28SOJ | |
| AS7C256B-15JIN | IC SRAM 256KBIT PARALLEL 28SOJ |
Product Description
Product Details
Functional description
The AS7C256A is a 5.0V high-performance CMOS 262,144-bit Static Random-Access Memory (SRAM) device organized as 32,768 words × 8 bits. It is designed for memory applications requiring fast data access at low voltage, including PentiumTM, PowerPCTM, and portable computing. Alliance’s advanced circuit design and process techniques permit 5.0V operation without sacrificing performance or operating margins.
Features
• Pin compatible with AS7C256• Industrial and commercial temperature options
• Organization: 32,768 words × 8 bits
• High speed
- 10/12/15/20 ns address access time
- 5, 6, 7, 8 ns output enable access time
• Very low power consumption: ACTIVE
- 412.5 mW max @ 10 ns
• Very low power consumption: STANDBY
- 11 mW max CMOS I/O
• Easy memory expansion with CE and OE inputs
• TTL-compatible, three-state I/O
• 28-pin JEDEC standard packages
- 300 mil SOJ
- 8 × 13.4 mm TSOP 1
• ESD protection ≥ 2000 volts
• Latch-up current ≥ 200 mA
• 2.0V Data retention
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Alliance Memory, Inc. |
| Product Category | Memory ICs |
| Series | - |
| Packaging | Tube Alternate Packaging |
| Package-Case | 28-BSOJ (.300", 7.62mm Width) |
| Operating-Temperature | 0°C ~ 70°C (TA) |
| Interface | Parallel |
| Voltage-Supply | 4.5 V ~ 5.5 V |
| Supplier-Device-Package | 28-SOJ |
| Memory Capacity | 256K (32K x 8) |
| Memory-Type | SRAM - Asynchronous |
| Speed | 12ns |
| Format-Memory | RAM |
| Manufacturer Part# | Description | Manufacturer | Compare |
| PDM41256LB12SO Memory |
Standard SRAM, 32KX8, 12ns, CMOS, PDSO28 | IXYS Corporation | AS7C256A-12JCN vs PDM41256LB12SO |
| K6E0808C1E-JC12 Memory |
Standard SRAM, 32KX8, 12ns, CMOS, PDSO28, 0.300 INCH, PLASTIC, SOJ-28 | Samsung Semiconductor | AS7C256A-12JCN vs K6E0808C1E-JC12 |
| AS7C256A-12JCN Memory |
Standard SRAM, 32KX8, 12ns, CMOS, PDSO28, 0.300 INCH, LEAD FREE, PLASTIC, SOJ-28 | Alliance Memory Inc | AS7C256A-12JCN vs AS7C256A-12JCN |
| AS7C256A-12JC Memory |
Standard SRAM, 32KX8, 12ns, CMOS, PDSO28, 0.300 INCH, PLASTIC, SOJ-28 | Alliance Memory Inc | AS7C256A-12JCN vs AS7C256A-12JC |
| K6E0808C1C-JC12 Memory |
Standard SRAM, 32KX8, 12ns, CMOS, PDSO28, 0.300 INCH, PLASTIC, SOJ-28 | Samsung Semiconductor | AS7C256A-12JCN vs K6E0808C1C-JC12 |
| KM68257EJ-12 Memory |
Standard SRAM, 32KX8, 12ns, CMOS, PDSO28, 0.300 INCH, PLASTIC, SOJ-28 | Samsung Semiconductor | AS7C256A-12JCN vs KM68257EJ-12 |
| KM68257CJ-12 Memory |
Standard SRAM, 32KX8, 12ns, CMOS, PDSO28, 0.300 INCH, PLASTIC, SOJ-28 | Samsung Semiconductor | AS7C256A-12JCN vs KM68257CJ-12 |
Descriptions
SRAM - Asynchronous Memory IC 256Kb (32K x 8) Parallel 12ns 28-SOJ
SRAM 256K, 5V, 12ns, FAST 32K x 8 Asynch SRAM
