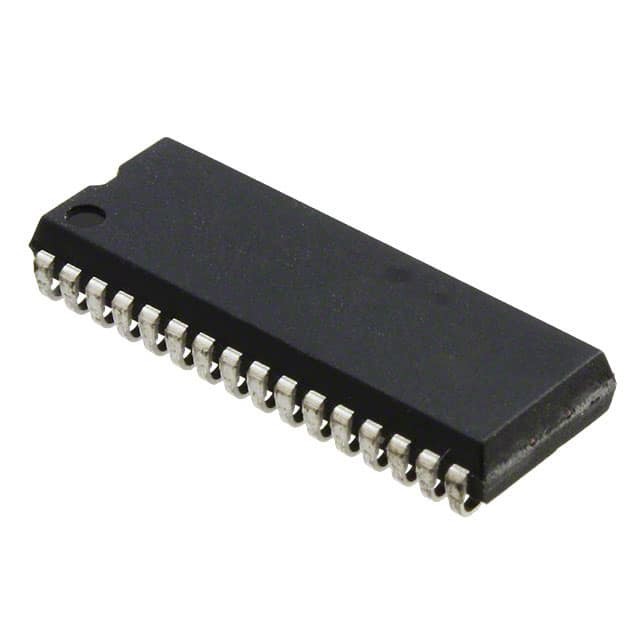

IS61C1024AL-12JLI IC SRAM 1MBIT PARALLEL 32SOJ ISSI, Integrated Silicon Solution Inc
| Brand Name | ISSI, Integrated Silicon Solution Inc |
|---|---|
| Model Number | IS61C1024AL-12JLI |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Memory Type | Volatile | Memory Format | SRAM |
|---|---|---|---|
| Technology | SRAM - Asynchronous | Memory Size | 1Mbit |
| Memory Organization | 128K X 8 | Memory Interface | Parallel |
| Clock Frequency | - | Write Cycle Time - Word, Page | 12ns |
| Access Time | 12 Ns | Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C (TA) | Mounting Type | Surface Mount |
| Package / Case | 32-BSOJ (0.300", 7.62mm Width) | Supplier Device Package | 32-SOJ |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| IS61C1024AL-12JLI | IC SRAM 1MBIT PARALLEL 32SOJ | |
| IS63WV1024BLL-12JLI-TR | IC SRAM 1MBIT PARALLEL 32SOJ | |
| IS61C1024AL-12JLI-TR | IC SRAM 1MBIT PARALLEL 32SOJ | |
| IS63WV1024BLL-12JLI | IC SRAM 1MBIT PARALLEL 32SOJ | |
| IS63WV1288DBLL-10JLI-TR | IC SRAM 1MBIT PARALLEL 32SOJ | |
| IS63WV1288DBLL-10JLI | IC SRAM 1MBIT PARALLEL 32SOJ | |
| IS61C1024AL-12KLI | IC SRAM 1MBIT PARALLEL 32SOJ | |
| IS63LV1024L-12JL | IC SRAM 1MBIT PARALLEL 32SOJ | |
| IS61C1024AL-12KI | IC SRAM 1MBIT PARALLEL 32SOJ | |
| IS61C1024AL-12KI-TR | IC SRAM 1MBIT PARALLEL 32SOJ | |
| IS61C1024AL-12KLI-TR | IC SRAM 1MBIT PARALLEL 32SOJ | |
| IS63LV1024-8KI | IC SRAM 1MBIT PARALLEL 32SOJ | |
| IS63LV1024-8KI-TR | IC SRAM 1MBIT PARALLEL 32SOJ | |
| IS63LV1024-8KL | IC SRAM 1MBIT PARALLEL 32SOJ | |
| IS63LV1024-8KL-TR | IC SRAM 1MBIT PARALLEL 32SOJ | |
| IS63LV1024-10J | IC SRAM 1MBIT PARALLEL 32SOJ | |
| IS63LV1024-10J-TR | IC SRAM 1MBIT PARALLEL 32SOJ | |
| IS63LV1024-10KI | IC SRAM 1MBIT PARALLEL 32SOJ | |
| IS63LV1024-10KI-TR | IC SRAM 1MBIT PARALLEL 32SOJ | |
| IS63LV1024-12J | IC SRAM 1MBIT PARALLEL 32SOJ | |
| IS63LV1024-12J-TR | IC SRAM 1MBIT PARALLEL 32SOJ | |
| IS63LV1024-12KL | IC SRAM 1MBIT PARALLEL 32SOJ | |
| IS63LV1024-12KL-TR | IC SRAM 1MBIT PARALLEL 32SOJ | |
| IS63LV1024L-10JLI | IC SRAM 1MBIT PARALLEL 32SOJ | |
| IS63LV1024L-10JLI-TR | IC SRAM 1MBIT PARALLEL 32SOJ | |
| IS63LV1024L-10KLI | IC SRAM 1MBIT PARALLEL 32SOJ | |
| IS63LV1024L-10KLI-TR | IC SRAM 1MBIT PARALLEL 32SOJ | |
| IS63LV1024L-12J | IC SRAM 1MBIT PARALLEL 32SOJ | |
| IS63LV1024L-12J-TR | IC SRAM 1MBIT PARALLEL 32SOJ | |
| IS63LV1024L-12JL-TR | IC SRAM 1MBIT PARALLEL 32SOJ | |
| IS61C1024-15JI | IC SRAM 1MBIT PARALLEL 32SOJ | |
| IS63WV1288DBLL-10KLI | IC SRAM 1MBIT PARALLEL 32SOJ | |
| IS63WV1288DBLL-10KLI-TR | IC SRAM 1MBIT PARALLEL 32SOJ |
Product Description
Product Details
DESCRIPTION
The ISSI IS61C1024AL/IS64C1024AL is a very high-speed, low power, 131,072-word by 8-bit CMOS static RAMs. They are fabricated using ISSI's high-performance CMOS technology. This highly reliable process coupled with innovative circuit design techniques, yields higher performance and low power consumption devices.When CE1is HIGH or CE2 is LOW (deselected), the device assumes a standby mode at which the power dissipation can be reduced by using CMOS input levels.
Easy memory expansion is provided by using two Chip Enable inputs, CE1and CE2. The active LOW Write Enable (WE) controls both writing and reading of the memory.
The IS61C1024AL/IS64C1024AL is available in 32-pin 300-mil SOJ, 32-pin 400-mil SOJ, 32-pin TSOP (Type I, 8x20), and 32-pin sTSOP (Type I, 8 x 13.4) packages.
FEATURES
• High-speed access time: 12, 15 ns• Low active power: 160 mW (typical)
• Low standby power: 1000 µW (typical) CMOS standby
• Output Enable (OE) and two Chip Enable (CE1and CE2) inputs for ease in applications
• Fully static operation: no clock or refresh required
• TTL compatible inputs and outputs
• Single 5V (±10%) power supply
• Commercial, industrial, and automotive temperature ranges available
• Lead free available
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | ISSI |
| Product Category | Memory ICs |
| Series | - |
| Packaging | Tray Alternate Packaging |
| Package-Case | 32-BSOJ (0.300", 7.62mm Width) |
| Operating-Temperature | -40°C ~ 85°C (TA) |
| Interface | Parallel |
| Voltage-Supply | 4.5 V ~ 5.5 V |
| Supplier-Device-Package | 32-SOJ |
| Memory Capacity | 1M (128K x 8) |
| Memory-Type | SRAM - Asynchronous |
| Speed | 12ns |
| Format-Memory | RAM |
| Mfr | ISSI Integrated Silicon Solution Inc |
| Package | Tray |
| Product-Status | Active |
| Memory-Type | Volatile |
| Memory-Format | SRAM |
| Technology | SRAM - Asynchronous |
| Memory-Size | 1Mb (128K x 8) |
| Memory-Interface | Parallel |
| Write-Cycle-Time-Word-Page | 12ns |
| Access-Time | 12 ns |
| Voltage-Supply | 4．5V ~ 5．5V |
| Mounting-Type | Surface Mount |
| Package-Case | 32-BSOJ (0．300" 7．62mm Width) |
| Base-Product-Number | IS61C1024 |
Functional compatible component
Form,Package,Functional compatible component
| Manufacturer Part# | Description | Manufacturer | Compare |
| IS61C1024-12JI Memory |
Standard SRAM, 128KX8, 12ns, CMOS, PDSO32, 0.300 INCH, PLASTIC, SOJ-32 | Integrated Silicon Solution Inc | IS61C1024AL-12JLI vs IS61C1024-12JI |
| CY7C1009B-12VC Memory |
Standard SRAM, 128KX8, 12ns, CMOS, PDSO32, 0.300 INCH, SOJ-32 | Cypress Semiconductor | IS61C1024AL-12JLI vs CY7C1009B-12VC |
| CY7C1009-12VC Memory |
Standard SRAM, 128KX8, 12ns, CMOS, PDSO32, 0.300 INCH, SOJ-32 | Cypress Semiconductor | IS61C1024AL-12JLI vs CY7C1009-12VC |
| IS61C1024-12J Memory |
Standard SRAM, 128KX8, 12ns, CMOS, PDSO32, 0.300 INCH, PLASTIC, SOJ-32 | Integrated Silicon Solution Inc | IS61C1024AL-12JLI vs IS61C1024-12J |
| CY7C1009BN-12VC Memory |
128KX8 STANDARD SRAM, 12ns, PDSO32, 0.300 INCH, SOJ-32 | Rochester Electronics LLC | IS61C1024AL-12JLI vs CY7C1009BN-12VC |
| AS7C1024C-12TJIN Memory |
Standard SRAM, 128KX8, 12ns, CMOS, PDSO32, 0.300 INCH, LEAD FREE, PLASTIC, SOJ-32 | Alliance Memory Inc | IS61C1024AL-12JLI vs AS7C1024C-12TJIN |
| IS61C1024AL-12JI Memory |
Standard SRAM, 128KX8, 12ns, CMOS, PDSO32, 0.300 INCH, PLASTIC, SOJ-32 | Integrated Silicon Solution Inc | IS61C1024AL-12JLI vs IS61C1024AL-12JI |
| MT5C1008SJ-12LP Memory |
Standard SRAM, 128KX8, 12ns, CMOS, PDSO32, 0.300 INCH, PLASTIC, SOJ-32 | Micron Technology Inc | IS61C1024AL-12JLI vs MT5C1008SJ-12LP |
Descriptions
SRAM Chip Async Single 5V 1M-Bit 128K x 8 12ns 32-Pin SOJ
