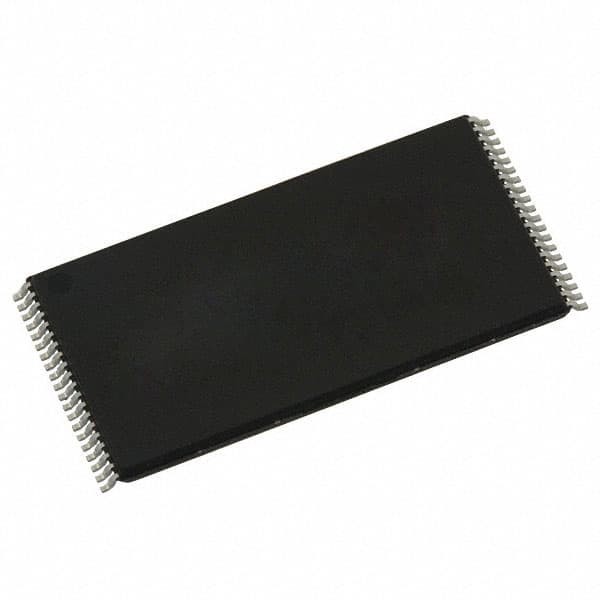

AT49F008AT-12TC IC FLASH 8MBIT PARALLEL 40TSOP Microchip Technology
| Brand Name | Microchip Technology |
|---|---|
| Model Number | AT49F008AT-12TC |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Memory Type | Non-Volatile | Memory Format | FLASH |
|---|---|---|---|
| Technology | FLASH | Memory Size | 8Mbit |
| Memory Organization | 1M X 8, 512K X 16 | Memory Interface | Parallel |
| Clock Frequency | - | Write Cycle Time - Word, Page | 50µs |
| Access Time | 120 Ns | Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | 0°C ~ 70°C (TC) | Mounting Type | Surface Mount |
| Package / Case | 40-TFSOP (0.724", 18.40mm Width) | Supplier Device Package | 40-TSOP |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| AT49F008AT-12TC | IC FLASH 8MBIT PARALLEL 40TSOP | |
| AT45DB642-TC | IC FLASH 64MBIT PARALLEL 40TSOP | |
| LH28F008SAT-85 | IC FLASH 8MBIT PARALLEL 40TSOP | |
| LH28F008SCT-L85 | IC FLASH 8MBIT PARALLEL 40TSOP | |
| LH28F016SCT-L95 | IC FLASH 16MBIT PARALLEL 40TSOP | |
| AT45DB642-TI | IC FLASH 64MBIT PARALLEL 40TSOP | |
| AT45DB1282-TC | IC FLASH 128MBIT SPI 40TSOP | |
| AT45DB1282-TI | IC FLASH 128MBIT SPI 40TSOP | |
| AT49BV8192A-90TI | IC FLASH 8MBIT PARALLEL 40TSOP | |
| AT49BV8192AT-90TI | IC FLASH 8MBIT PARALLEL 40TSOP | |
| AT45CS1282-TC | IC FLASH 128MBIT SPI 40TSOP | |
| AT45CS1282-TI | IC FLASH 128MBIT SPI 40TSOP | |
| LH28F008SAT-ZW | IC FLASH 8MBIT PARALLEL 40TSOP | |
| LH28F008SCHT-TE | IC FLASH 8MBIT PARALLEL 40TSOP | |
| AT49LH002-33TC | IC FLASH 2MBIT PAR 33MHZ 40TSOP | |
| AT49LH002-33TC-T | IC FLASH 2MBIT PAR 33MHZ 40TSOP | |
| AT49LH004-33TC | IC FLASH 4MBIT PAR 33MHZ 40TSOP | |
| AT49LH004-33TC-T | IC FLASH 4MBIT PAR 33MHZ 40TSOP | |
| M29F080D70N1 | IC FLASH 8MBIT PARALLEL 40TSOP | |
| M29F080D90N1 | IC FLASH 8MBIT PARALLEL 40TSOP | |
| M50FW016N5TG TR | IC FLASH 16MBIT PAR 33MHZ 40TSOP | |
| SST49LF008A-33-4C-EIE | IC FLASH 8MBIT PAR 33MHZ 40TSOP | |
| SST49LF016C-33-4C-EIE | IC FLASH 16MBIT PAR 33MHZ 40TSOP | |
| SST49LF016C-33-4C-EIE-T | IC FLASH 16MBIT PAR 33MHZ 40TSOP | |
| IS41C16256C-35TLI | IC DRAM 4MBIT PARALLEL 40TSOP | |
| IS41C16256C-35TLI-TR | IC DRAM 4MBIT PARALLEL 40TSOP | |
| IS41C16257C-35TLI | IC DRAM 4MBIT PARALLEL 40TSOP | |
| IS41C16257C-35TLI-TR | IC DRAM 4MBIT PARALLEL 40TSOP | |
| IS41LV16256C-35TLI | IC DRAM 4MBIT PARALLEL 40TSOP | |
| IS41LV16256C-35TLI-TR | IC DRAM 4MBIT PARALLEL 40TSOP | |
| IS41LV16257C-35TLI | IC DRAM 4MBIT PARALLEL 40TSOP | |
| IS41LV16257C-35TLI-TR | IC DRAM 4MBIT PARALLEL 40TSOP | |
| SST49LF008A-33-4C-EIE-T | IC FLASH 8MBIT PAR 33MHZ 40TSOP |
Product Description
Product Details
Description
The AT49F008A(T) and AT49F8192A(T) are 5-volt, 8-megabit Flash memories organized as 1,048,576 words of 8 bits each or 512K words of 16 bits each. Manufactured with Atmel’s advanced nonvolatile CMOS technology, the devices offer access times to 70 ns with power dissipation of just 275 mW. When deselected, the CMOS standby current is less than 300 µA.Features
• Single Voltage Operation
– 5V Read
– 5V Programming
• Fast Read Access Time - 70 ns
• Internal Erase/Program Control
• Sector Architecture
– One 8K Words (16K bytes) Boot Block with Programming Lockout
– Two 4K Words (8K bytes) Parameter Blocks
– One 496K Words (992K bytes) Main Memory Array Block
• Fast Sector Erase Time - 10 seconds
• Byte-by-byte or Word-by-word Programming - 10 µs Typical
• Hardware Data Protection
• DATA Polling For End Of Program Detection
• Low Power Dissipation
– 50 mA Active Current
– 300 µA CMOS Standby Current
• Typical 10,000 Write Cycles
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Intel / Altera |
| Product Category | Memory ICs |
| Series | - |
| Packaging | Tray |
| Package-Case | 40-TFSOP (0.724", 18.40mm Width) |
| Operating-Temperature | 0°C ~ 70°C (TC) |
| Interface | Parallel |
| Voltage-Supply | 4.5 V ~ 5.5 V |
| Supplier-Device-Package | 40-TSOP |
| Memory Capacity | 8M (1M x 8, 512K x 16) |
| Memory-Type | FLASH |
| Speed | 120ns |
| Format-Memory | FLASH |
Descriptions
FLASH Memory IC 8Mb (1M x 8, 512K x 16) Parallel 120ns 40-TSOP
