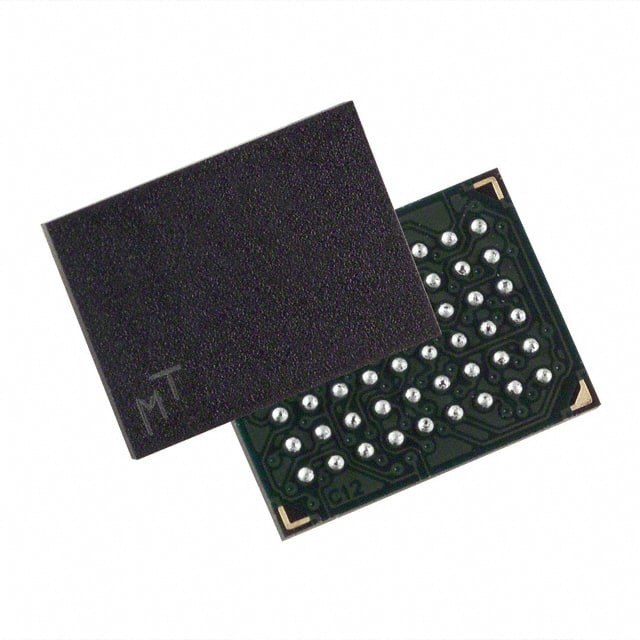

MT45W1MW16PABA-70 WT IC PSRAM 16MBIT PARALLEL 48VFBGA Micron Technology Inc.
| Brand Name | Micron Technology Inc. |
|---|---|
| Model Number | MT45W1MW16PABA-70 WT |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Memory Type | Volatile | Memory Format | PSRAM |
|---|---|---|---|
| Technology | PSRAM (Pseudo SRAM) | Memory Size | 16Mbit |
| Memory Organization | 1M X 16 | Memory Interface | Parallel |
| Clock Frequency | - | Write Cycle Time - Word, Page | 70ns |
| Access Time | 70 Ns | Voltage - Supply | 1.7V ~ 1.95V |
| Operating Temperature | -30°C ~ 85°C (TC) | Mounting Type | Surface Mount |
| Package / Case | 48-VFBGA | Supplier Device Package | 48-VFBGA (6x8) |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| MT45W1MW16PABA-70 WT | IC PSRAM 16MBIT PARALLEL 48VFBGA | |
| MT45W1MW16PABA-70 WT TR | IC PSRAM 16MBIT PARALLEL 48VFBGA | |
| MT45W1MW16PAFA-70 WT | IC PSRAM 16MBIT PARALLEL 48VFBGA | |
| MT45W1MW16PAFA-70 WT TR | IC PSRAM 16MBIT PARALLEL 48VFBGA | |
| MT45W2MW16PABA-70 IT | IC PSRAM 32MBIT PARALLEL 48VFBGA | |
| MT45W2MW16PABA-70 WT | IC PSRAM 32MBIT PARALLEL 48VFBGA | |
| MT45W2MW16PAFA-70 IT | IC PSRAM 32MBIT PARALLEL 48VFBGA | |
| MT45W2MW16PAFA-70 WT | IC PSRAM 32MBIT PARALLEL 48VFBGA | |
| MT45W2MW16PAFA-85 WT | IC PSRAM 32MBIT PARALLEL 48VFBGA | |
| MT45W4MW16PBA-70 IT | IC PSRAM 64MBIT PARALLEL 48VFBGA | |
| MT45W4MW16PBA-70 IT TR | IC PSRAM 64MBIT PARALLEL 48VFBGA | |
| MT45W4MW16PBA-70 WT | IC PSRAM 64MBIT PARALLEL 48VFBGA | |
| MT45W4MW16PBA-70 WT TR | IC PSRAM 64MBIT PARALLEL 48VFBGA | |
| MT45W4MW16PFA-70 IT | IC PSRAM 64MBIT PARALLEL 48VFBGA | |
| MT45W4MW16PFA-70 IT TR | IC PSRAM 64MBIT PARALLEL 48VFBGA | |
| MT45W4MW16PFA-70 WT | IC PSRAM 64MBIT PARALLEL 48VFBGA | |
| MT45W4MW16PFA-70 WT TR | IC PSRAM 64MBIT PARALLEL 48VFBGA | |
| MT45W4MW16PFA-85 WT | IC PSRAM 64MBIT PARALLEL 48VFBGA | |
| MT45W4MW16PFA-85 WT TR | IC PSRAM 64MBIT PARALLEL 48VFBGA | |
| MT45W4MW16PCGA-70 WT TR | IC PSRAM 64MBIT PARALLEL 48VFBGA | |
| MT45W1MW16PDGA-70 WT TR | IC PSRAM 16MBIT PARALLEL 48VFBGA | |
| MT45W2MW16PGA-70 WT TR | IC PSRAM 32MBIT PARALLEL 48VFBGA | |
| MT45W2MW16PGA-70 IT TR | IC PSRAM 32MBIT PARALLEL 48VFBGA | |
| MT45V256KW16PEGA-55 WT TR | IC PSRAM 4MBIT PARALLEL 48VFBGA | |
| MT45V256KW16PEGA-70 WT TR | IC PSRAM 4MBIT 70NS 48VFBGA | |
| MT45V512KW16PEGA-55 WT TR | IC PSRAM 8MBIT PARALLEL 48VFBGA | |
| MT45V512KW16PEGA-70 WT TR | IC PSRAM 8MBIT PARALLEL 48VFBGA | |
| MT45W256KW16PEGA-70 WT TR | IC PSRAM 4MBIT PARALLEL 48VFBGA | |
| MT45W512KW16PEGA-70 IT TR | IC PSRAM 8MBIT PARALLEL 48VFBGA | |
| MT45W512KW16PEGA-70 WT TR | IC PSRAM 8MBIT PARALLEL 48VFBGA | |
| MT45W1MW16PDGA-70 IT TR | IC PSRAM 16MBIT PARALLEL 48VFBGA | |
| MT45W4MW16PCGA-70 IT TR | IC PSRAM 64MBIT PARALLEL 48VFBGA |
Product Description
Product Details
SOT23 NPN SILICON PLANAR HIGH PERFROMANCE TRANSISTOR
FEATURES
* Low equivalent on-resistance; RCE(sat) 400mΩ at 1A* 1 Amp continuous current
* Ptot= 500 mW
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Micron Technology Inc. |
| Product Category | Memory ICs |
| Series | - |
| Packaging | Tray |
| Package-Case | 48-VFBGA |
| Operating-Temperature | -30°C ~ 85°C (TC) |
| Interface | Parallel |
| Voltage-Supply | 1.7 V ~ 1.95 V |
| Supplier-Device-Package | 48-VFBGA (6x8) |
| Memory Capacity | 16M (1M x 16) |
| Memory-Type | PSRAM (Page) |
| Speed | 70ns |
| Format-Memory | RAM |
Descriptions
PSRAM (Pseudo SRAM) Memory IC 16Mb (1M x 16) Parallel 70ns 48-VFBGA (6x8)
