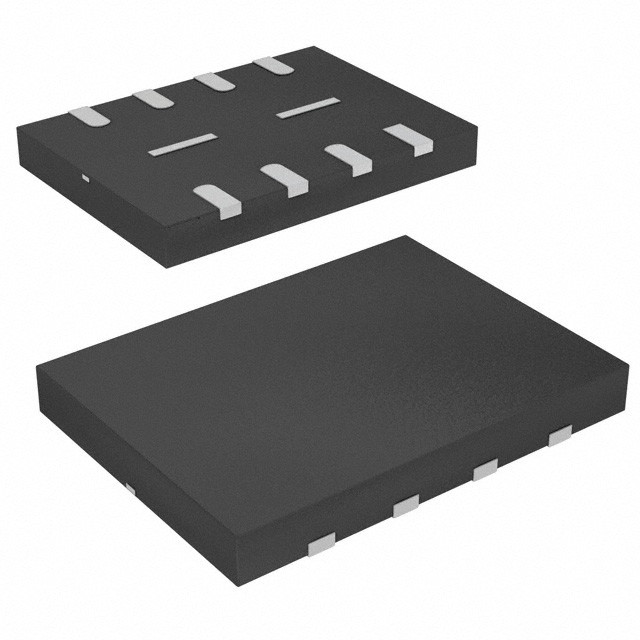

W25Q16DWUUIG IC FLASH 16MBIT SPI/QUAD 8USON Winbond Electronics

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Memory Type | Non-Volatile | Memory Format | FLASH |
---|---|---|---|
Technology | FLASH - NOR | Memory Size | 16Mbit |
Memory Organization | 2M X 8 | Memory Interface | SPI - Quad I/O, QPI |
Clock Frequency | 104 MHz | Write Cycle Time - Word, Page | 40µs, 3ms |
Access Time | - | Voltage - Supply | 1.65V ~ 1.95V |
Operating Temperature | -40°C ~ 85°C (TA) | Mounting Type | Surface Mount |
Package / Case | 8-UFDFN Exposed Pad | Supplier Device Package | 8-USON (4x3) |
You can tick the products you need and communicate with us in the message board.
Part Number | Description | |
---|---|---|
GD25Q32CNIGR | IC FLASH 32MBIT SPI/QUAD 8USON | |
GD25LQ16CNIGR | IC FLASH 16MBIT SPI/QUAD 8USON | |
GD25LQ32DNIGR | IC FLASH 32MBIT SPI/QUAD 8USON | |
W25Q32JWUUIQTR | IC FLASH 32MBIT SPI/QUAD 8USON | |
W25Q16JVUUIQ TR | IC FLASH 16MBIT SPI/QUAD 8USON | |
W25Q16JWUUIQ TR | IC FLASH 16MBIT SPI/QUAD 8USON | |
W25Q16DWUUIG | IC FLASH 16MBIT SPI/QUAD 8USON | |
W25Q16DVUUIG TR | IC FLASH 16MBIT SPI/QUAD 8USON | |
W25Q16JVUUJM TR | IC FLASH 16MBIT SPI/QUAD 8USON | |
W25Q16JVUUJQ TR | IC FLASH 16MBIT SPI/QUAD 8USON | |
W25Q16JVUUJM | IC FLASH 16MBIT SPI/QUAD 8USON | |
W25Q16JVUUJQ | IC FLASH 16MBIT SPI/QUAD 8USON | |
W25Q16DVUUJP TR | IC FLASH 16MBIT SPI/QUAD 8USON | |
W25Q16DVUUJP | IC FLASH 16MBIT SPI/QUAD 8USON | |
GD25Q16CNIGR | IC FLASH 16MBIT SPI/QUAD 8USON | |
GD25Q80CNIGR | IC FLASH 8MBIT SPI/QUAD 8USON | |
W25Q16FWUUIQ TR | IC FLASH 16MBIT SPI/QUAD 8USON | |
W25Q16JWUUIM | IC FLASH 16MBIT SPI/QUAD 8USON | |
W25Q16FWUUIG TR | IC FLASH 16MBIT SPI/QUAD 8USON | |
W25Q16JWUUIM TR | IC FLASH 16MBIT SPI/QUAD 8USON | |
W25Q16JWUUIQ | IC FLASH 16MBIT SPI/QUAD 8USON | |
W25Q16FWUUIQ | IC FLASH 16MBIT SPI/QUAD 8USON | |
W25Q16JWUUAQ | IC FLASH 16MBIT SPI/QUAD 8USON | |
W25Q16FWUUAQ | IC FLASH 16MBIT SPI/QUAD 8USON | |
W25Q16FWUUBQ | IC FLASH 16MBIT SPI/QUAD 8USON | |
W25Q16FWUUSQ | IC FLASH 16MBIT SPI/QUAD 8USON | |
W25Q16JWUUSQ | IC FLASH 16MBIT SPI/QUAD 8USON | |
W25Q16JVUUAQ | IC FLASH 16MBIT SPI/QUAD 8USON | |
W25Q16JVUUAM | IC FLASH 16MBIT SPI/QUAD 8USON | |
W25Q16JWUUAM | IC FLASH 16MBIT SPI/QUAD 8USON |
Product Description
Product Details
GENERAL DESCRIPTION
The W25Q16DW (16M-bit) Serial Flash memory provides a storage solution for systems with limited space, pins and power. The 25Q series offers flexibility and performance well beyond ordinary Serial Flash devices. They are ideal for code shadowing to RAM, executing code directly from Dual/Quad SPI (XIP) and storing voice, text and data. The device operates on a single 1.65V to 1.95V power supply with current consumption as low as 4mA active and 1µA for power-down. All devices are offered in space saving packages.The W25Q16DW array is organized into 8,192 programmable pages of 256-bytes each. Up to 256 bytes can be programmed at a time. Pages can be erased in groups of 16 (4KB sector erase), groups of 128 (32KB block erase), groups of 256 (64KB block erase) or the entire chip (chip erase). The W25Q16DW has 512 erasable sectors and 32 erasable blocks respectively. The small 4KB sectors allow for greater flexibility in applications that require data and parameter storage. (See figure 2.)
The W25Q16DW support the standard Serial Peripheral Interface (SPI), Dual/Quad I/O SPI as well as 2-clocks instruction cycle Quad Peripheral Interface (QPI): Serial Clock, Chip Select, Serial Data I/O0 (DI), I/O1 (DO), I/O2 (/WP), and I/O3 (/HOLD). SPI clock frequencies of up to 104MHz are supported allowing equivalent clock rates of 208MHz (104MHz x 2) for Dual I/O and 416MHz (104MHz x 4) for Quad I/O when using the Fast Read Dual/Quad I/O and QPI instructions. These transfer rates can outperform standard Asynchronous 8 and 16-bit Parallel Flash memories. The Continuous Read Mode allows for efficient memory access with as few as 8-clocks of instruction-overhead to read a 24-bit address, allowing true XIP (execute in place) operation.
A Hold pin, Write Protect pin and programmable write protection, with top or bottom array control, provide further control flexibility. Additionally, the device supports JEDEC standard manufacturer and device identification, a 64-bit Unique Serial Number and four 256-bytes Security Registers.
FEATURES
• Family of SpiFlash Memories– W25Q16DW: 16M-bit / 2M-byte (2,097,152)
– Standard SPI: CLK, /CS, DI, DO, /WP, /Hold
– Dual SPI: CLK, /CS, IO0, IO1, /WP, /Hold
– Quad SPI: CLK, /CS, IO0, IO1, IO2, IO3
– QPI: CLK, /CS, IO0, IO1, IO2, IO3
• Highest Performance Serial Flash
– 104MHz Standard/Dual/Quad SPI clocks
– 208/416MHz equivalent Dual/Quad SPI
– 50MB/S continuous data transfer rate
– More than 100,000 erase/program cycles
– More than 20-year data retention
• Efficient “Continuous Read” and QPI Mode
– Continuous Read with 8/16/32/64-Byte Wrap
– As few as 8 clocks to address memory
– Quad Peripheral Interface (QPI) reduces
instruction overhead
– Allows true XIP (execute in place) operation
– Outperforms X16 Parallel Flash
• Low Power, Wide Temperature Range
– Single 1.65 to 1.95V supply
– 4mA active current, <1µA Power-down (typ.)
– -40°C to +85°C operating range
• Flexible Architecture with 4KB sectors
– Uniform Sector Erase (4K-bytes)
– Uniform Block Erase (32K and 64K-bytes)
– Program 1 to 256 byte per programmable page
– Erase/Program Suspend & Resume
• Advanced Security Features
– Software and Hardware Write-Protect
– Top/Bottom, 4KB complement array protection
– Power Supply Lock-Down and OTP protection
– 64-Bit Unique ID for each device
– 4X256-Bytes Security Registers with OTP locks
– Volatile & Non-volatile Status Register Bits
• Space Efficient Packaging
– 8-pin SOIC 150/208-mil
– 8-pad WSON 6x5-mm, USON 4x3-mm
– 8-ball WLBGA
– 16-pin SOIC 300-mil
– Contact Winbond for KGD and other options
Specifications
Attribute | Attribute Value |
---|---|
Manufacturer | Winbond Electronics |
Product Category | Memory ICs |
Series | SpiFlash® |
Packaging | |
Package-Case | 8-UDFN |
Operating-Temperature | -40°C ~ 85°C (TA) |
Interface | SPI Serial |
Voltage-Supply | 1.65 V ~ 1.95 V |
Supplier-Device-Package | 8-USON (4x3) |
Memory Capacity | 16M (2M x 8) |
Memory-Type | FLASH - NOR |
Speed | 104MHz |
Format-Memory | FLASH |
Descriptions
FLASH - NOR Memory IC 16Mb (2M x 8) SPI 104MHz 8-USON (4x3)
