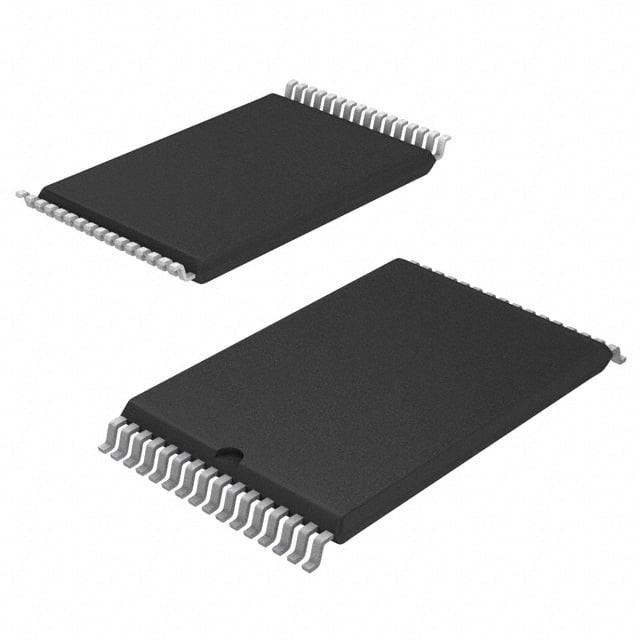

CY62128EV30LL-45ZAXI IC SRAM 1MBIT PARALLEL 32STSOP Infineon Technologies
| Brand Name | Infineon Technologies |
|---|---|
| Model Number | CY62128EV30LL-45ZAXI |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Memory Type | Volatile | Memory Format | SRAM |
|---|---|---|---|
| Technology | SRAM - Asynchronous | Memory Size | 1Mbit |
| Memory Organization | 128K X 8 | Memory Interface | Parallel |
| Clock Frequency | - | Write Cycle Time - Word, Page | 45ns |
| Access Time | 45 Ns | Voltage - Supply | 2.2V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C (TA) | Mounting Type | Surface Mount |
| Package / Case | 32-TFSOP (0.465", 11.80mm Width) | Supplier Device Package | 32-sTSOP |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| CY62128EV30LL-45ZAXI | IC SRAM 1MBIT PARALLEL 32STSOP | |
| CY62138FV30LL-45ZAXI | IC SRAM 2MBIT PARALLEL 32STSOP | |
| CY62128ELL-45ZAXIT | IC SRAM 1MBIT PARALLEL 32STSOP | |
| CY62128ELL-45ZAXI | IC SRAM 1MBIT PARALLEL 32STSOP | |
| CY62138FV30LL-45ZAXIT | IC SRAM 2MBIT PARALLEL 32STSOP | |
| CY62128ELL-55ZAXE | IC SRAM 1MBIT PARALLEL 32STSOP | |
| CY62128EV30LL-45ZAXIT | IC SRAM 1MBIT PARALLEL 32STSOP | |
| FM28V020-TG | IC FRAM 256KBIT PARALLEL 32STSOP | |
| CY62148ESL-55ZAXI | IC SRAM 4MBIT PARALLEL 32STSOP | |
| CY62148ESL-55ZAXA | IC SRAM 4MBIT PARALLEL 32STSOP | |
| CY62128BNLL-70ZAXE | IC SRAM 1MBIT PARALLEL 32STSOP | |
| CY62128BNLL-70ZAXET | IC SRAM 1MBIT PARALLEL 32STSOP | |
| CY62148ESL-55ZAXIT | IC SRAM 4MBIT PARALLEL 32STSOP | |
| CY62128ELL-55ZAXET | IC SRAM 1MBIT PARALLEL 32STSOP | |
| CY62138FV30LL-45ZAXAT | IC SRAM 2MBIT PARALLEL 32STSOP | |
| FM28V020-TGTR | IC FRAM 256KBIT PARALLEL 32STSOP | |
| CY62148ESL-55ZAXI | IC SRAM 4MBIT PARALLEL 32STSOP | |
| CY62148ESL-55ZAXIT | IC SRAM 4MBIT PARALLEL 32STSOP | |
| CY62128ELL-45ZAXIT | IC SRAM 1MBIT PARALLEL 32STSOP | |
| CY62128EV30LL-45ZAXI | STANDARD SRAM, 128KX8, 45NS, CMO | |
| CY62128ELL-45ZAXI | IC SRAM 1MBIT PARALLEL 32STSOP | |
| CY62138FV30LL-45ZAXA | IC SRAM 2MBIT PARALLEL 32STSOP | |
| CY62128BNLL-70ZAXE | IC SRAM 1MBIT PARALLEL 32STSOP | |
| CY62128BNLL-70ZAXET | IC SRAM 1MBIT PARALLEL 32STSOP | |
| CY62138FV30LL-45ZAXA | IC SRAM 2MBIT PARALLEL 32STSOP | |
| CY62128EV30LL-45ZAXA | IC SRAM 1MBIT PARALLEL 32STSOP | |
| CY62148ESL-55ZAXA | IC SRAM 4MBIT PARALLEL 32STSOP | |
| CY62128EV30LL-45ZAXAT | IC SRAM 1MBIT PARALLEL 32STSOP | |
| CY62148ESL-55ZAXAT | IC SRAM 4MBIT PARALLEL 32STSOP |
Product Description
Product Details
Functional Description[1]
The CY62128EV30 is a high performance CMOS static RAM module organized as 128K words by 8 bits. This device features advanced circuit design to provide ultra low active current. This is ideal for providing More Battery Life™ (MoBL®) in portable applications such as cellular telephones. The device also has an automatic power down feature that significantly reduces power consumption when addresses are not toggling.
Features
• Very high speed: 45 ns• Temperature ranges–
— Industrial: –40°C to +85°C
— Automotive-A: –40°C to +85°C
— Automotive-E: –40°C to +125°C
• Wide voltage range: 2.20V – 3.60V
• Pin compatible with CY62128DV30
• Ultra low standby power
— Typical standby current: 1 µA
— Maximum standby current: 4 µA
• Ultra low active power
— Typical active current: 1.3 mA @ f = 1 MHz
• Easy memory expansion with CE1, CE2 and OE features
• Automatic power down when deselected
• CMOS for optimum speed and power
• Offered in Pb-free 32-pin SOIC, 32-pin TSOP I, and 32-pin STSOP packages
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Cypress Semiconductor |
| Product Category | Memory ICs |
| Series | MoBL® |
| Type | Asynchronous |
| Packaging | Tray Alternate Packaging |
| Mounting-Style | SMD/SMT |
| Tradename | MoBL |
| Package-Case | 32-TFSOP (0.465", 11.80mm Width) |
| Operating-Temperature | -40°C ~ 85°C (TA) |
| Interface | Parallel |
| Voltage-Supply | 2.2 V ~ 3.6 V |
| Supplier-Device-Package | 32-sTSOP |
| Memory Capacity | 1M (128K x 8) |
| Memory-Type | SRAM - Asynchronous |
| Speed | 45ns |
| Data-Rate | SDR |
| Access-Time | 45 ns |
| Format-Memory | RAM |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Interface-Type | Parallel |
| Organization | 128 k x 8 |
| Supply-Current-Max | 16 mA |
| Supply-Voltage-Max | 3.6 V |
| Supply-Voltage-Min | 2.2 V |
| Package-Case | STSOP-32 |
Functional compatible component
Form,Package,Functional compatible component
| Manufacturer Part# | Description | Manufacturer | Compare |
| CY62128EV30LL-45ZAXA Memory |
Standard SRAM, 128KX8, 45ns, CMOS, PDSO32, 8 X 13.40 MM, LEAD FREE, STSOP-32 | Cypress Semiconductor | CY62128EV30LL-45ZAXI vs CY62128EV30LL-45ZAXA |
Descriptions
SRAM Chip Async Single 3V 1M-bit 128K x 8 45ns 32-Pin STSOP-I Tray
SRAM 1Mb 3V 45ns 128K x 8 LP SRAM
