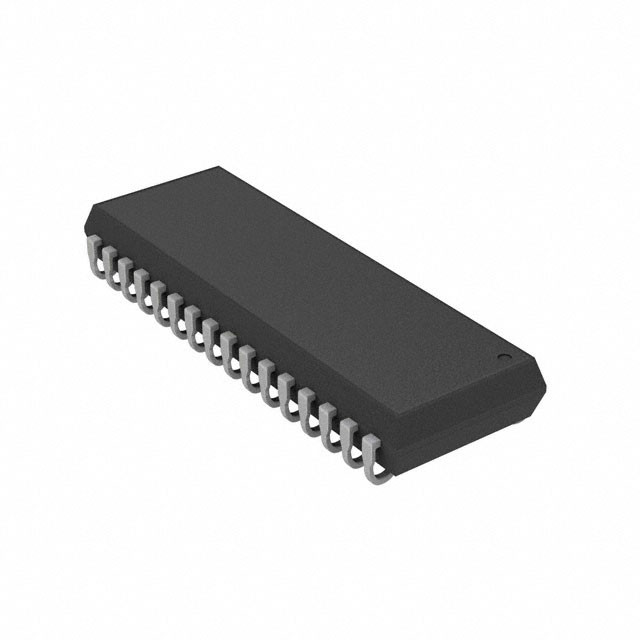

AS7C4096A-12JIN IC SRAM 4MBIT PARALLEL 36SOJ Alliance Memory, Inc.
| Brand Name | Alliance Memory, Inc. |
|---|---|
| Model Number | AS7C4096A-12JIN |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Memory Type | Volatile | Memory Format | SRAM |
|---|---|---|---|
| Technology | SRAM - Asynchronous | Memory Size | 4Mbit |
| Memory Organization | 512K X 8 | Memory Interface | Parallel |
| Clock Frequency | - | Write Cycle Time - Word, Page | 12ns |
| Access Time | 12 Ns | Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C (TA) | Mounting Type | Surface Mount |
| Package / Case | 36-BSOJ (0.400", 10.16mm Width) | Supplier Device Package | 36-SOJ |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| AS7C4096A-12JIN | IC SRAM 4MBIT PARALLEL 36SOJ | |
| AS7C34096A-12JCN | IC SRAM 4MBIT PARALLEL 36SOJ | |
| AS7C34096A-10JCN | IC SRAM 4MBIT PARALLEL 36SOJ | |
| AS7C34096A-10JCNTR | IC SRAM 4MBIT PARALLEL 36SOJ | |
| AS7C34096A-10JINTR | IC SRAM 4MBIT PARALLEL 36SOJ | |
| AS7C34096A-12JCNTR | IC SRAM 4MBIT PARALLEL 36SOJ | |
| AS7C34096A-12JINTR | IC SRAM 4MBIT PARALLEL 36SOJ | |
| AS7C34096A-15JCNTR | IC SRAM 4MBIT PARALLEL 36SOJ | |
| AS7C34096A-15JINTR | IC SRAM 4MBIT PARALLEL 36SOJ | |
| AS7C4096A-12JCNTR | IC SRAM 4MBIT PARALLEL 36SOJ | |
| AS7C4096A-12JINTR | IC SRAM 4MBIT PARALLEL 36SOJ | |
| AS7C4096A-15JCNTR | IC SRAM 4MBIT PARALLEL 36SOJ | |
| AS7C4096A-15JINTR | IC SRAM 4MBIT PARALLEL 36SOJ | |
| AS7C34096A-20JCNTR | IC SRAM 4MBIT PARALLEL 36SOJ | |
| AS7C34096A-20JINTR | IC SRAM 4MBIT PARALLEL 36SOJ | |
| AS7C4096A-20JCNTR | IC SRAM 4MBIT PARALLEL 36SOJ | |
| AS7C4096A-20JINTR | IC SRAM 4MBIT PARALLEL 36SOJ | |
| AS7C4096A-12JCN | IC SRAM 4MBIT PARALLEL 36SOJ | |
| AS7C4096A-15JCN | IC SRAM 4MBIT PARALLEL 36SOJ | |
| AS7C4096A-15JIN | IC SRAM 4MBIT PARALLEL 36SOJ | |
| AS7C34096A-10JIN | IC SRAM 4MBIT PARALLEL 36SOJ | |
| AS7C34096A-12JIN | IC SRAM 4MBIT PARALLEL 36SOJ | |
| AS7C34096A-15JCN | IC SRAM 4MBIT PARALLEL 36SOJ | |
| AS7C34096A-15JIN | IC SRAM 4MBIT PARALLEL 36SOJ | |
| AS7C4096A-20JCN | IC SRAM 4MBIT PARALLEL 36SOJ | |
| AS7C4096A-20JIN | IC SRAM 4MBIT PARALLEL 36SOJ | |
| AS7C34096A-20JCN | IC SRAM 4MBIT PARALLEL 36SOJ | |
| AS7C34096A-20JIN | IC SRAM 4MBIT PARALLEL 36SOJ |
Product Description
Product Details
Functional description
The AS7C4096A is a high-performance CMOS 4,194,304-bit Static Random Access Memory (SRAM) device organized as 524,288 words × 8 bits. It is designed for memory applications where fast data access, low power, and simple interfacing are desired.
Features
• Pin compatible to AS7C4096• Industrial and commercial temperature
• Organization: 524,288 words × 8 bits
• Center power and ground pins
• High speed
- 10/12/15/20 ns address access time
- 5/6 ns output enable access time
• Low power consumption: ACTIVE
- 880mW/max @ 10 ns
• Low power consumption: STANDBY
- 55mW/max CMOS
• Equal access and cycle times
• Easy memory expansion with CE, OE inputs
• TTL-compatible, three-state I/O
• JEDEC standard packages
- 400 mil 36-pin SOJ
- 44-pin TSOP 2
• ESD protection ≥ 2000 volts
• Latch-up current ≥ 200 mA
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Alliance Memory, Inc. |
| Product Category | Memory ICs |
| Series | - |
| Packaging | Tray Alternate Packaging |
| Package-Case | 36-BSOJ (0.400", 10.16mm Width) |
| Operating-Temperature | -40°C ~ 85°C (TA) |
| Interface | Parallel |
| Voltage-Supply | 4.5 V ~ 5.5 V |
| Supplier-Device-Package | 36-SOJ |
| Memory Capacity | 4M (512K x 8) |
| Memory-Type | SRAM - Asynchronous |
| Speed | 12ns |
| Format-Memory | RAM |
Functional compatible component
Form,Package,Functional compatible component
| Manufacturer Part# | Description | Manufacturer | Compare |
| AS5C512K8DJ-12/883C Memory |
Standard SRAM, 512KX8, 12ns, CMOS, PDSO36, PLASTIC, SOJ-36 | Micross Components | AS7C4096A-12JIN vs AS5C512K8DJ-12/883C |
| AS5C512K8DJ-12/XT Memory |
Standard SRAM, 512KX8, 12ns, CMOS, PDSO36, PLASTIC, SOJ-36 | Micross Components | AS7C4096A-12JIN vs AS5C512K8DJ-12/XT |
| AS7C4096A-12JI Memory |
Standard SRAM, 512KX8, 12ns, CMOS, PDSO36, 0.400 INCH, SOJ-36 | Alliance Memory Inc | AS7C4096A-12JIN vs AS7C4096A-12JI |
| AS5C512K8DJ-12L/883C Memory |
Standard SRAM, 512KX8, 12ns, CMOS, PDSO36, LEAD FREE, PLASTIC, SOJ-36 | Micross Components | AS7C4096A-12JIN vs AS5C512K8DJ-12L/883C |
| AS5C512K8DJ-12/IT Memory |
Standard SRAM, 512KX8, 12ns, CMOS, PDSO36, PLASTIC, SOJ-36 | Micross Components | AS7C4096A-12JIN vs AS5C512K8DJ-12/IT |
| AS5C512K8DJ-12L/XT Memory |
Standard SRAM, 512KX8, 12ns, CMOS, PDSO36, LEAD FREE, PLASTIC, SOJ-36 | Micross Components | AS7C4096A-12JIN vs AS5C512K8DJ-12L/XT |
| AS7C4096A-12JCN Memory |
Standard SRAM, 512KX8, 12ns, CMOS, PDSO36, 0.400 INCH, LEAD FREE, SOJ-36 | Alliance Memory Inc | AS7C4096A-12JIN vs AS7C4096A-12JCN |
| AS5C512K8DJ-12L/IT Memory |
Standard SRAM, 512KX8, 12ns, CMOS, PDSO36, LEAD FREE, PLASTIC, SOJ-36 | Micross Components | AS7C4096A-12JIN vs AS5C512K8DJ-12L/IT |
Descriptions
SRAM - Asynchronous Memory IC 4Mb (512K x 8) Parallel 12ns 36-SOJ
SRAM 4M, 3.3V, 12ns, FAST 512K x 8 Asynch SRAM
