All Products

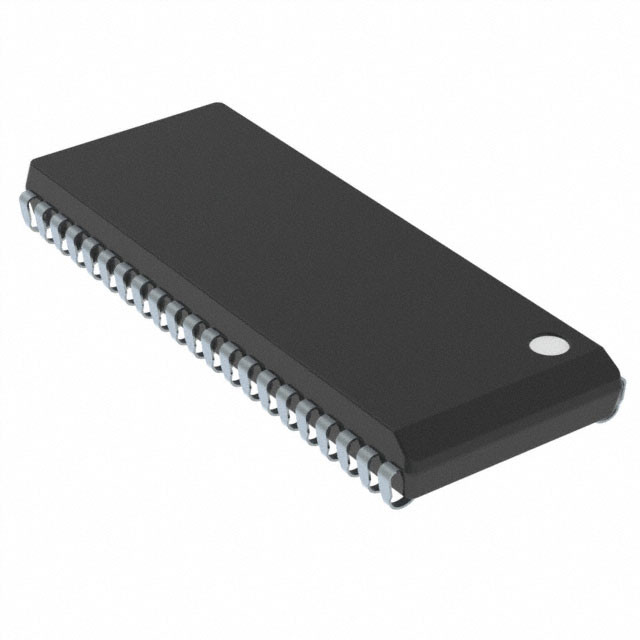

IS41LV16100B-50KL IC DRAM 16MBIT PARALLEL 42SOJ ISSI, Integrated Silicon Solution Inc
| Brand Name | ISSI, Integrated Silicon Solution Inc |
|---|---|
| Model Number | IS41LV16100B-50KL |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Memory Type | Volatile | Memory Format | DRAM |
|---|---|---|---|
| Technology | DRAM - EDO | Memory Size | 16Mbit |
| Memory Organization | 1M X 16 | Memory Interface | Parallel |
| Clock Frequency | - | Write Cycle Time - Word, Page | - |
| Access Time | 25 Ns | Voltage - Supply | 3V ~ 3.6V |
| Operating Temperature | 0°C ~ 70°C (TA) | Mounting Type | Surface Mount |
| Package / Case | 42-BSOJ (0.400", 10.16mm Width) | Supplier Device Package | 42-SOJ |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| IS41LV16100B-50KL | IC DRAM 16MBIT PARALLEL 42SOJ | |
| IS41LV16100B-50KL-TR | IC DRAM 16MBIT PARALLEL 42SOJ | |
| IS41LV16100B-50KLI | IC DRAM 16MBIT PARALLEL 42SOJ | |
| IS41LV16100B-50KLI-TR | IC DRAM 16MBIT PARALLEL 42SOJ | |
| IS41LV16100B-60KL | IC DRAM 16MBIT PARALLEL 42SOJ | |
| IS41LV16100B-60KL-TR | IC DRAM 16MBIT PARALLEL 42SOJ | |
| IS41LV16100B-60KLI | IC DRAM 16MBIT PARALLEL 42SOJ | |
| IS41LV16100B-60KLI-TR | IC DRAM 16MBIT PARALLEL 42SOJ | |
| IS41LV16105B-50KL | IC DRAM 16MBIT PARALLEL 42SOJ | |
| IS41LV16105B-50KL-TR | IC DRAM 16MBIT PARALLEL 42SOJ | |
| IS41LV16105B-50KLI | IC DRAM 16MBIT PARALLEL 42SOJ | |
| IS41LV16105B-50KLI-TR | IC DRAM 16MBIT PARALLEL 42SOJ | |
| IS41LV16105B-60KL | IC DRAM 16MBIT PARALLEL 42SOJ | |
| IS41LV16105B-60KL-TR | IC DRAM 16MBIT PARALLEL 42SOJ | |
| IS41LV16105B-60KLI | IC DRAM 16MBIT PARALLEL 42SOJ | |
| IS41LV16105B-60KLI-TR | IC DRAM 16MBIT PARALLEL 42SOJ | |
| IS41C16100C-50KLI | IC DRAM 16MBIT PARALLEL 42SOJ | |
| IS41C16100C-50KLI-TR | IC DRAM 16MBIT PARALLEL 42SOJ | |
| IS41C16105C-50KLI | IC DRAM 16MBIT PARALLEL 42SOJ | |
| IS41C16105C-50KLI-TR | IC DRAM 16MBIT PARALLEL 42SOJ | |
| IS41LV16100C-50KLI | IC DRAM 16MBIT PARALLEL 42SOJ | |
| IS41LV16100C-50KLI-TR | IC DRAM 16MBIT PARALLEL 42SOJ | |
| IS41LV16105C-50KLI | IC DRAM 16MBIT PARALLEL 42SOJ | |
| IS41LV16105C-50KLI-TR | IC DRAM 16MBIT PARALLEL 42SOJ | |
| IS41LV16100D-50KLI | IC DRAM 16MBIT PARALLEL 42SOJ | |
| IS41LV16100D-50KLI-TR | IC DRAM 16MBIT PARALLEL 42SOJ | |
| IS41LV16105D-50KLI | IC DRAM 16MBIT PARALLEL 42SOJ | |
| IS41LV16105D-50KLI-TR | IC DRAM 16MBIT PARALLEL 42SOJ |
Product Description
Product Details
DESCRIPTION
TheISSIIS41LV16100B is 1,048,576 x 16-bit high-performance CMOS Dynamic Random Access Memories. These devices offer an accelerated cycle access called EDO Page Mode. EDO Page Mode allows 1,024 random accesses within a single row with access cycle time as short as 20 ns per 16-bit word.
FEATURES
• TTL compatible inputs and outputs; tristate I/O• Refresh Interval:
— Auto refresh Mode: 1,024 cycles /16 ms
— RAS-Only, CAS-before-RAS (CBR), and Hidden
• JEDEC standard pinout
• Single power supply: 3.3V ± 10%
• Byte Write and Byte Read operation via two CAS
• Industrial Temperature Range: -40oC to +85oC
• Lead-free available
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | ISSI |
| Product Category | IC Chips |
| Series | - |
| Packaging | Tube |
| Package-Case | 42-BSOJ (0.400", 10.16mm) |
| Operating-Temperature | 0°C ~ 70°C (TA) |
| Interface | Parallel |
| Voltage-Supply | 3 V ~ 3.6 V |
| Supplier-Device-Package | 42-SOJ |
| Memory Capacity | 16M (1M x 16) |
| Memory-Type | DRAM - EDO |
| Speed | 50ns |
| Format-Memory | RAM |
Descriptions
DRAM - EDO Memory IC 16Mb (1M x 16) Parallel 25ns 42-SOJ
