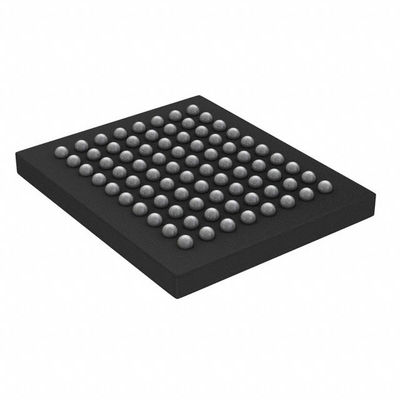

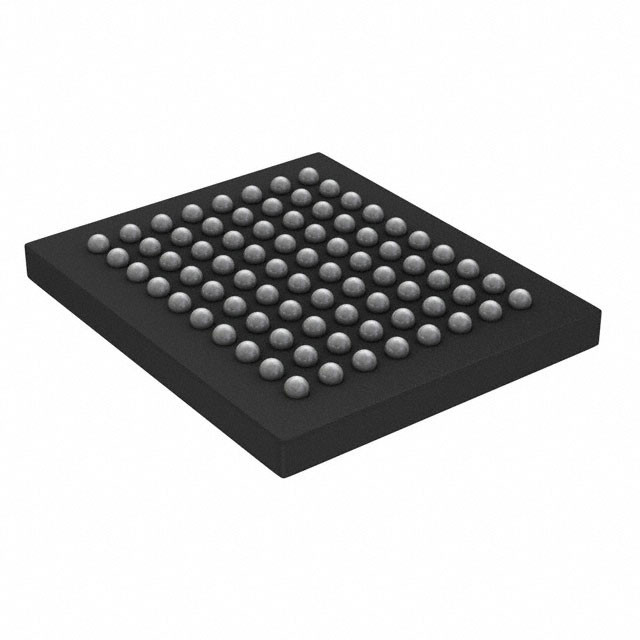

S29CD016J0MFAM010 IC FLASH 16MBIT PAR 56MHZ 80FBGA Infineon Technologies

Brand Name Infineon Technologies
Model Number S29CD016J0MFAM010
Minimum Order Quantity 1
Price Based on current price
Packaging Details anti-static bag & cardboard box
Delivery Time 3-5 work days
Payment Terms T/T
Supply Ability In stock

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Memory Type Non-Volatile Memory Format FLASH
Technology FLASH - NOR Memory Size 16Mbit
Memory Organization 512K X 32 Memory Interface Parallel
Clock Frequency 56 MHz Write Cycle Time - Word, Page 60ns
Access Time 54 Ns Voltage - Supply 1.65V ~ 2.75V
Operating Temperature -40°C ~ 125°C (TA) Mounting Type Surface Mount
Package / Case 80-LBGA Supplier Device Package 80-FBGA (13x11)
