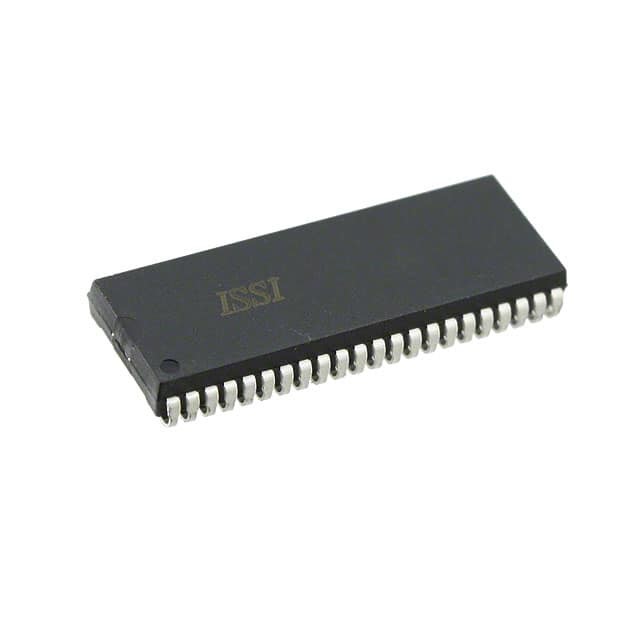

IS61C3216AL-12KLI-TR IC SRAM 512KBIT PARALLEL 44SOJ ISSI, Integrated Silicon Solution Inc
| Brand Name | ISSI, Integrated Silicon Solution Inc |
|---|---|
| Model Number | IS61C3216AL-12KLI-TR |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Memory Type | Volatile | Memory Format | SRAM |
|---|---|---|---|
| Technology | SRAM - Asynchronous | Memory Size | 512Kbit |
| Memory Organization | 32K X 16 | Memory Interface | Parallel |
| Clock Frequency | - | Write Cycle Time - Word, Page | 12ns |
| Access Time | 12 Ns | Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C (TA) | Mounting Type | Surface Mount |
| Package / Case | 44-BSOJ (0.400", 10.16mm Width) | Supplier Device Package | 44-SOJ |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| IS61C3216AL-12KLI-TR | IC SRAM 512KBIT PARALLEL 44SOJ | |
| IS61C6416AL-12KLI-TR | IC SRAM 1MBIT PARALLEL 44SOJ | |
| IS61WV6416BLL-12KLI-TR | IC SRAM 1MBIT PARALLEL 44SOJ | |
| IS61C3216AL-12KLI | IC SRAM 512KBIT PARALLEL 44SOJ | |
| IS61C6416AL-12KLI | IC SRAM 1MBIT PARALLEL 44SOJ | |
| IS61WV6416BLL-12KLI | IC SRAM 1MBIT PARALLEL 44SOJ | |
| IS61C25616AL-10KLI-TR | IC SRAM 4MBIT PARALLEL 44SOJ | |
| IS61C25616AL-10KLI | IC SRAM 4MBIT PARALLEL 44SOJ | |
| IS61WV25616BLL-10KLI-TR | IC SRAM 4MBIT PARALLEL 44SOJ | |
| IS61WV25616BLL-10KLI | IC SRAM 4MBIT PARALLEL 44SOJ | |
| IS61C6416AL-12KI | IC SRAM 1MBIT PARALLEL 44SOJ | |
| IS61C6416AL-12KI-TR | IC SRAM 1MBIT PARALLEL 44SOJ | |
| IS61LV25616AL-10K | IC SRAM 4MBIT PARALLEL 44SOJ | |
| IS61LV25616AL-10K-TR | IC SRAM 4MBIT PARALLEL 44SOJ | |
| IS61LV25616AL-10KLI | IC SRAM 4MBIT PARALLEL 44SOJ | |
| IS61LV25616AL-10KLI-TR | IC SRAM 4MBIT PARALLEL 44SOJ | |
| IS61LV6416-10KLI | IC SRAM 1MBIT PARALLEL 44SOJ | |
| IS61LV6416-10KLI-TR | IC SRAM 1MBIT PARALLEL 44SOJ | |
| IS61LV6416-12KL | IC SRAM 1MBIT PARALLEL 44SOJ | |
| IS61LV6416-12KL-TR | IC SRAM 1MBIT PARALLEL 44SOJ | |
| IS61LV6416-8KL-TR | IC SRAM 1MBIT PARALLEL 44SOJ | |
| IS61LV6416-8KL | IC SRAM 1MBIT PARALLEL 44SOJ |
Product Description
Product Details
DESCRIPTION
The ISSI IS61C3216AL is high-speed, 512Kb static RAMs organized as 32,768 words by 16 bits. They are fabricated usingISSIs high-performance CMOS technology. This highly reliable process coupled with innovative circuit design techniques, yields access times as fast as 12 ns with low power consumption.
FEATURES
• High-speed access time: 12 ns• Low Active Power: 175 mW (typical)
• Low Standby Power: 1 mW (typical) CMOS standby
• TTL compatible interface levels
• Single 5V ± 10% power supply
• Fully static operation: no clock or refresh required
• Available in 44-pin SOJ package and 44-pin TSOP (Type II)
• Commercial and Industrial temperature ranges available
• Lead-free available
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | ISSI |
| Product Category | Memory ICs |
| Series | IS61C3216AL |
| Type | Asynchronous |
| Packaging | Tape & Reel (TR) Alternate Packaging |
| Mounting-Style | SMD/SMT |
| Package-Case | 44-BSOJ (0.400", 10.16mm Width) |
| Operating-Temperature | -40°C ~ 85°C (TA) |
| Interface | Parallel |
| Voltage-Supply | 4.5 V ~ 5.5 V |
| Supplier-Device-Package | 44-SOJ |
| Memory Capacity | 512K (32K x 16) |
| Memory-Type | SRAM - Asynchronous |
| Speed | 12ns |
| Data-Rate | SDR |
| Access-Time | 12 ns |
| Format-Memory | RAM |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Interface-Type | Parallel |
| Organization | 32 k x 16 |
| Supply-Current-Max | 45 mA |
| Supply-Voltage-Max | 5.5 V |
| Supply-Voltage-Min | 4.5 V |
| Package-Case | SOJ-44 |
Descriptions
SRAM - Asynchronous Memory IC 512Kb (32K x 16) Parallel 12ns 44-SOJ
SRAM 512K 32Kx16 12ns Async SRAM
