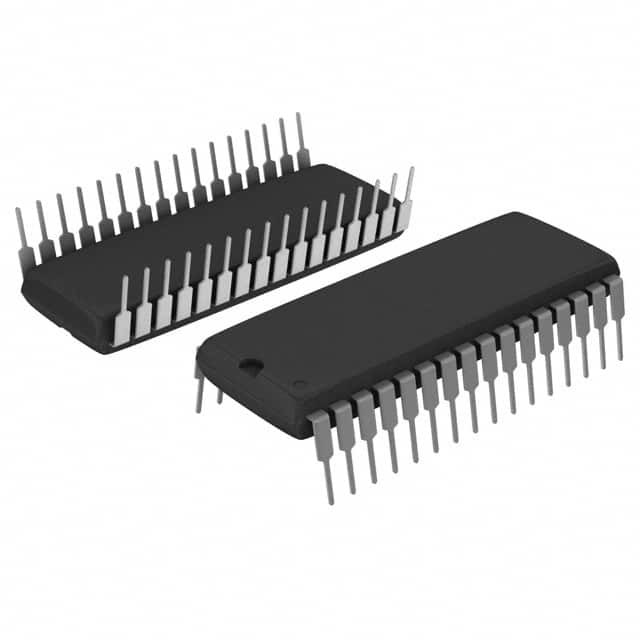

CAT28C512LI12 IC EEPROM 512KBIT PARALLEL 32DIP onsemi
| Brand Name | onsemi |
|---|---|
| Model Number | CAT28C512LI12 |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Memory Type | Non-Volatile | Memory Format | EEPROM |
|---|---|---|---|
| Technology | EEPROM | Memory Size | 512Kbit |
| Memory Organization | 64K X 8 | Memory Interface | Parallel |
| Clock Frequency | - | Write Cycle Time - Word, Page | 5ms |
| Access Time | 120 Ns | Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C (TA) | Mounting Type | Through Hole |
| Package / Case | 32-DIP (0.600", 15.24mm) | Supplier Device Package | 32-PDIP |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| CAT28C512LI12 | IC EEPROM 512KBIT PARALLEL 32DIP | |
| CAT28F001LI-12B | IC FLASH 1MBIT PARALLEL 32DIP | |
| CAT28F010LI12 | IC FLASH 1MBIT PARALLEL 32DIP | |
| CAT28F020LI12 | IC FLASH 2MBIT PARALLEL 32DIP | |
| CAT28F512LI12 | IC FLASH 512KBIT PARALLEL 32DIP | |
| CAT28C512L12 | IC EEPROM 512KBIT PARALLEL 32DIP | |
| CAT28C512LI15 | IC EEPROM 512KBIT PARALLEL 32DIP | |
| CAT28F001L-12B | IC FLASH 1MBIT PARALLEL 32DIP | |
| CAT28F001L-12T | IC FLASH 1MBIT PARALLEL 32DIP | |
| CAT28F001L-90B | IC FLASH 1MBIT PARALLEL 32DIP | |
| CAT28F010L12 | IC FLASH 1MBIT PARALLEL 32DIP | |
| CAT28F010LI90 | IC FLASH 1MBIT PARALLEL 32DIP | |
| CAT28F020L12 | IC FLASH 2MBIT PARALLEL 32DIP | |
| CAT28F512L12 | IC FLASH 512KBIT PARALLEL 32DIP | |
| CAT28F020L90 | IC FLASH 2MBIT PARALLEL 32DIP | |
| CAT28F001LI-12T | IC FLASH 1MBIT PARALLEL 32DIP | |
| CAT28F512LI90 | IC FLASH 512KBIT PARALLEL 32DIP | |
| CAT28F512L90 | IC FLASH 512KBIT PARALLEL 32DIP | |
| CAT28F020LI90 | IC FLASH 2MBIT PARALLEL 32DIP | |
| CAT28F010L90 | IC FLASH 1MBIT PARALLEL 32DIP | |
| CAT28C512L15 | IC EEPROM 512KBIT PARALLEL 32DIP |
Product Description
Product Details
DESCRIPTION
The CAT28C512/513 is a fast,low power, 5V-only CMOS parallel EEPROM organized as 64K x 8-bits. It requires a simple interface for in-system programming. On-chip address and data latches, self-timed write cycle with auto-clear and VCC power up/down write protection eliminate additional timing and protection hardware.
FEATURES
■ Fast Read Access Times: 120/150 ns■ Low Power CMOS Dissipation:
–Active: 50 mA Max.
–Standby: 200 µA Max.
■ Simple Write Operation:
–On-Chip Address and Data Latches
–Self-Timed Write Cycle with Auto-Clear
■ Fast Write Cycle Time:
–5ms Max
■ CMOS and TTL Compatible I/O
■ Automatic Page Write Operation:
–1 to 128 Bytes in 5ms
–Page Load Timer
■ End of Write Detection:
–Toggle Bit
–DATA Polling
■ Hardware and Software Write Protection
■ 100,000 Program/Erase Cycles
■ 100 Year Data Retention
■ Commercial, Industrial and Automotive Temperature Ranges
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | onsemi |
| Product Category | Memory ICs |
| Series | - |
| Packaging | Tube |
| Package-Case | 32-DIP (0.600", 15.24mm) |
| Operating-Temperature | -40°C ~ 85°C (TA) |
| Interface | Parallel |
| Voltage-Supply | 4.5 V ~ 5.5 V |
| Supplier-Device-Package | 32-PDIP |
| Memory Capacity | 512K (64K x 8) |
| Memory-Type | EEPROM |
| Speed | 120ns |
| Format-Memory | EEPROMs - Parallel |
Descriptions
EEPROM Memory IC 512Kb (64K x 8) Parallel 120ns 32-PDIP
EEPROM Parallel 512K-bit 64K x 8 5V 32-Pin PDIP Tube
