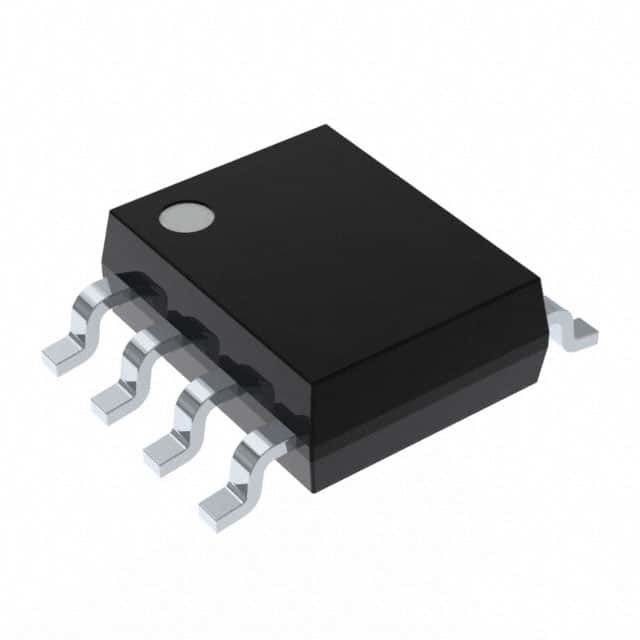

MAX5033BASA+T IC REG BUCK 5V 500MA 8SOIC Analog Devices Inc./Maxim Integrated
| Brand Name | Analog Devices Inc./Maxim Integrated |
|---|---|
| Model Number | MAX5033BASA+T |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Function | Step-Down | Output Configuration | Positive |
|---|---|---|---|
| Topology | Buck | Output Type | Fixed |
| Number Of Outputs | 1 | Voltage - Input (Min) | 7.5V |
| Voltage - Input (Max) | 76V | Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - | Current - Output | 500mA |
| Frequency - Switching | 125kHz | Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C (TJ) | Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) | Supplier Device Package | 8-SOIC |
