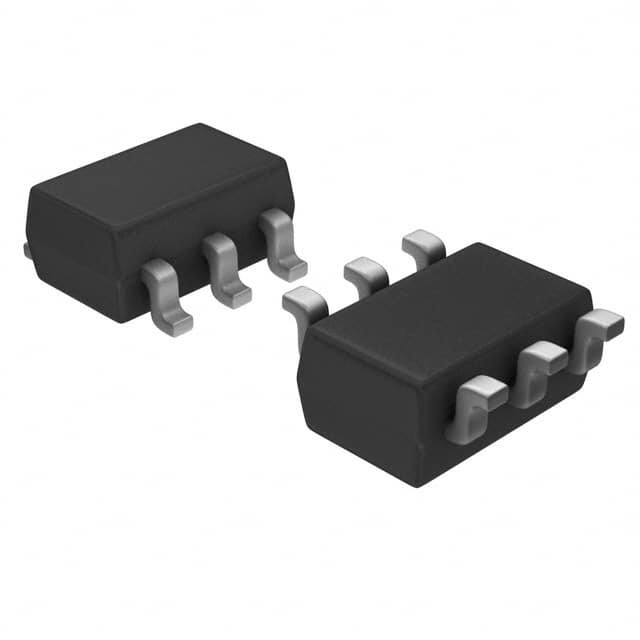

RT8258GJ6 IC REG BUCK ADJ 1.2A TSOT23-6 Richtek USA Inc.

  • RT8258GJ6 IC REG BUCK ADJ 1.2A TSOT23-6 Richtek USA Inc.
Brand Name Richtek USA Inc.
Model Number RT8258GJ6
Minimum Order Quantity 1
Price Based on current price
Packaging Details anti-static bag & cardboard box
Delivery Time 3-5 work days
Payment Terms T/T
Supply Ability In stock

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Function Step-Down Output Configuration Positive
Topology Buck Output Type Adjustable
Number Of Outputs 1 Voltage - Input (Min) 4.5V
Voltage - Input (Max) 24V Voltage - Output (Min/Fixed) 0.8V
Voltage - Output (Max) 15V Current - Output 1.2A
Frequency - Switching 700kHz Synchronous Rectifier No
Operating Temperature -40°C ~ 85°C (TA) Mounting Type Surface Mount
Package / Case SOT-23-6 Thin, TSOT-23-6 Supplier Device Package TSOT-23-6
You can tick the products you need and communicate with us in the message board.
Part Number Description
RT8258GJ6 IC REG BUCK ADJ 1.2A TSOT23-6
RT6208GE IC REG BUCK ADJ 100MA SOT23-6
XC9247B75CMR-G IC REG BUCK ADJUSTABLE 1A SOT26W
RT8259GE IC REG BUCK ADJ 1.2A SOT23-6
ISL9111EH50Z-T7A IC REG BOOST 5V 800MA SOT23-6
RT8096CHGJ6 IC REG BUCK ADJ 1A TSOT23-6
RT8097ALGE IC REG BUCK ADJ 2A SOT23-6
RT8097AHGE IC REG BUCK ADJ 2A SOT23-6
RT6224DHGJ6F IC REG BUCK ADJ 3A TSOT23-6
RT6213BHGJ6F IC REG BUCK ADJ 3A TSOT23-6
RT6214AHGJ6F IC REG BUCK ADJ 3A TSOT23-6
RT7295AGJ6F IC REG BUCK ADJ 3.5A TSOT23-6
RT6253BHGJ6F IC REG BUCK ADJ 3A TSOT23-6
RT8096BHGJ6 IC REG BUCK ADJ 1A TSOT23-6
RT6214BHRGJ6F IC REG BUCK ADJ 3A TSOT23-6
RT6214AHRGJ6F IC REG BUCK ADJ 3A TSOT23-6
RT5750AHGJ6 6V 1A SYNC ADJ ACOT BUCK TSOT-26
RT8097BHGE IC REG BUCK ADJ 2A SOT23-6
RT6272BHGJ6F IC REG BUCK ADJ 2A TSOT23-6
RT5752BHGJ6 IC REG BUCK ADJ 2A TSOT23-6
RT5752AHGJ6 IC REG BUCK ADJ 2A TSOT23-6
RT6222DHGJ6F IC REG BUCK ADJ 2A TSOT23-6
RT5752ALGJ6 IC REG BUCK ADJ 2A TSOT23-6
RT8097CHGE IC REG BUCK ADJ 2A SOT23-6
RT6252AHGJ6F IC REG BUCK ADJ 2A TSOT23-6
RT6252BHGJ6F IC REG BUCK ADJ 2A TSOT23-6
RT9266BGE IC REG BOOST ADJ 500MA SOT23-6
RT9266GE IC REG BOOST ADJ 1.6A SOT23-6
RT6212AHRGJ6F IC REG BUCK ADJ 2A TSOT23-6
RT6212BHRGJ6F IC REG BUCK ADJ 2A TSOT23-6
RT6274CHGJ6F IC REG BUCK ADJ 3.5A TSOT23-6
RT6212AHGJ6F IC REG BUCK ADJ 2A TSOT23-6
RT6224AHGJ6F IC REG BUCK ADJ 3A TSOT23-6
RT6253AHGJ6F IC REG BUCK ADJ 3A TSOT23-6
RT6200GE IC REG BUCK ADJ 600MA SOT23-6
RT6273BHGJ6F IC REG BUCK ADJ 3A TSOT23-6
RT6264BHGJ6F IC REG BUCK ADJ 4A TSOT23-6
RT6214BHGJ6F IC REG BUCK ADJ 3A TSOT23-6
RT6255BHGJ6F IC REG BUCK ADJ 5A TSOT23-6
RT6255AHGJ6F IC REG BUCK ADJ 5A TSOT23-6
S-882140AMH-M2PTFU IC REG CHARG PUMP 4V SOT23-6W
RT5796AHGE IC REG BUCK ADJ 1.5A SOT23-6
RT8259GJ6 IC REG BUCK ADJ 1.2A TSOT23-6
RT6257BHGJ6F IC REG BUCK ADJ 6A TSOT23-6
AS1320-T IC REG BOOST 3.3V 1A SOT23-6
AS1325-BSTT-50 IC REG BOOST 5V 1A SOT23-6
ISL9111AEH50Z-T7A IC REG BOOST 5V 800MA SOT23-6
RT7294CGJ6F IC REG BUCK ADJ 2.5A TSOT23-6
ISL9111EH33Z-T7A IC REG BOOST 3.3V 800MA SOT23-6
RT6222AHGJ6F IC REG BUCK ADJ 2.5A TSOT23-6
RT5796BHGE IC REG BUCK ADJ 1.5A SOT23-6
RT6212BHGJ6F IC REG BUCK ADJ 2A TSOT23-6
RT6254BHGJ6F IC REG BUCK ADJ 4A TSOT23-6
NJW1933F1-AT-TE2 600MA,500KHZ,STEP-DOWN SWITCHING
RT8096BHGE IC REG BUCK ADJ 1A SOT23-6
RT7285CGJ6 IC REG BUCK ADJ 1.5A TSOT23-6
RT8258GE IC REG BUCK ADJ 1.2A SOT23-6
RT6264AHGJ6F IC REG BUCK ADJ 4A TSOT23-6
RT7295CGJ6F IC REG BUCK ADJ 3.5A TSOT23-6
ISL9111EHADJZ-T7A IC REG BOOST ADJ 800MA SOT23-6
XC9246B65CMR-G IC REG BUCK ADJUSTABLE 1A SOT26W
XC9246B75CMR-G IC REG BUCK ADJUSTABLE 1A SOT26W
NJW1616F1-AT-TE2 600MA, 500KHZ, STEP-DOWN SWITCHI
S-882139AMH-M2OTFU IC REG CHARG PUMP 3.02V SOT23-6W
ISL9111EH33Z-T IC REG BOOST 3.3V 800MA SOT23-6
ISL9111EH50Z-T IC REG BOOST 5V 800MA SOT23-6
ISL9111EHADJZ-T IC REG BOOST ADJ 800MA SOT23-6
ISL9111AEH30Z-T IC REG BOOST 3V 800MA SOT23-6
ISL9111AEH33Z-T IC REG BOOST 3.3V 800MA SOT23-6
ISL9111AEH50Z-T IC REG BOOST 5V 800MA SOT23-6
ISL9111EH30Z-T IC REG BOOST 3V 800MA SOT23-6
XC9247B65CMR-G IC REG BUCK ADJUSTABLE 1A SOT26W
S-882145AMH-M2UTFG IC REG CHARGE PUMP 4.5V SOT23-6W
S-882130AMH-M2FTFG IC REG CHARG PUMP 3V 25MA SOT23
S-882133AMH-M2ITFG IC REG CHARGE PUMP 3.3V SOT23-6W
S-882136AMH-M2LTFG IC REG CHARGE PUMP 3.6V SOT23-6W
S-882150AMH-M2ZTFG IC REG CHARG PUMP 5V SOT23-6W
S-882155AMH-M3ETFG IC REG CHARGE PUMP 5.5V SOT23-6W
S-882125AMH-M2ATFG IC REG CHARGE PUMP 2.5V SOT23-6W
S-882135AMH-M2KTFG IC REG CHARGE PUMP 3.5V SOT23-6W
S-882140AMH-M2PTFG IC REG CHARG PUMP 4V 25MA SOT23
S-882141AMH-M2QTFU IC REG CHARGE PUMP 4.1V SOT23-6W
S-882142AMH-M2RTFU IC REG CHARGE PUMP 4.2V SOT23-6W
S-882152AMH-M3BTFG IC REG CHARGE PUMP 5.2V SOT23-6W
S-882152AMH-M3BTFU IC REG CHARGE PUMP 5.2V SOT23-6W
S-882145AMH-M2UTFU IC REG CHARGE PUMP 4.5V SOT23-6W
S-882155AMH-M3ETFU IC REG CHARGE PUMP 5.5V SOT23-6W
ISL9111AEH30Z-T7A IC REG BOOST 3V 800MA SOT23-6
ISL9111AEH33Z-T7A IC REG BOOST 3.3V 800MA SOT23-6
ISL9111EH30Z-T7A IC REG BOOST 3V 800MA SOT23-6
RT6254AHGJ6F IC REG BUCK ADJ 4A TSOT23-6
S-8363B-M6T1U2 IC REG BOOST ADJ 900MA SOT23-6
ISL9111AEHADJZ-T IC REG BOOST ADJ 800MA SOT23-6
ISL9111AEHADJZ-T7A IC REG BOOST ADJ 800MA SOT23-6
S-882130APB-M2FTFG IC REG CHARGE PUMP 3V 25MA 6SON
S-882133APB-M2ITFG IC REG CHARG PUMP 3.3V 25MA 6SON
S-882150APB-M2ZTFG IC REG CHARGE PUMP 5V 25MA 6SON
XRP7659ISTR-F IC REG BUCK ADJ 1.5A SOT23-6
MAX1836EUT+T IC REG BUCK ADJ 125MA SOT23-6
AAT3110IGU-5.0-T1 IC REG CHARG PUMP 5V 100MA SOT23
RT8580GE IC REG BOOST ADJ 330MA SOT23-6
AAT3111IGU-3.3-T1 IC REG CHARGE PUMP 3.3V SOT23-6
RT5796BHGJ6 IC REG BUCK ADJ 1.5A TSOT23-6
RT5796CHGJ6 IC REG BUCK ADJ 1.5A TSOT23-6
RT8097CLGE IC REG BUCK ADJ 2A SOT23-6
LX7104ISF IC REG BUCK ADJ 1.5A SOT23-6
RT6213AHGJ6F IC REG BUCK ADJ 3A TSOT23-6
RT5796AHGJ6 IC REG BUCK ADJ 1.5A TSOT23-6
RT8096AHGJ6 IC REG BUCK ADJ 1A TSOT23-6
RT6211AHGE IC REG BUCK ADJ 1.5A SOT23-6
RT6211BHGE IC REG BUCK ADJ 1.5A SOT23-6
RT6222BHGJ6F IC REG BUCK ADJ 2.5A TSOT23-6
RT6222CHGJ6F IC REG BUCK ADJ 2A TSOT23-6
RT7285AGJ6 IC REG BUCK ADJ 1.5A TSOT23-6
RT7294AGJ6F IC REG BUCK ADJ 2.5A TSOT23-6
RT8096AHGE IC REG BUCK ADJ 1A SOT23-6
RT6257AHGJ6F IC REG BUCK ADJ 6A TSOT23-6
RT6224CHGJ6F IC REG BUCK ADJ 3A TSOT23-6
RT6212CHGJ6F IC REG BUCK ADJ 2A TSOT23-6
PQ1R28J0000H IC REG LIN 2.8V 150MA SOT23L-6
PQ1R27J0000H IC REG LIN 2.7V 150MA SOT23L-6
PQ1R27 IC REG LIN 2.7V 150MA SOT23L-6
PQ1K253M2ZP IC REG LIN 2.5V 300MA SOT23L-6
PQ1R18J0000H IC REG LIN 1.8V 150MA SOT23L-6
RT5750BHGJ6 6V 1A SYNC ADJ ACOT BUCK TSOT-26
AS1321-T IC REG BOOST 5V 1A SOT23-6
AS1325-BSTT-33 IC REG BOOST 3.3V 1A SOT23-6
Leave a Message
Part Number Description
Product Description

Product Details



General Description

The RT8258 is a high voltage buck converter that can support the input voltage range from 4.5V to 24V and the output current can be up to 1.2A. Current Mode operation provides fast transient response and eases loop stabilization.
The chip also provides protection functions such as cycle by-cycle current limiting and thermal shutdown protection. The RT8258 is available in a SOT-23-6 and TSOT-23-6 packages.





Features

• Wide Operating Input Voltage Range : 4.5V to 24V
• Adjustable Output Voltage Range : 0.8V to 15V
• 1.2A Output Current
• 0.3Ω Internal Power MOSFET Switch
• High Efficiency up to 92%
• 700kHz Fixed Switching Frequency
• Stable with Low ESR Output Ceramic Capacitors
• Thermal Shutdown
• Cycle-By-Cycle Over Current Protection
• RoHS Compliant and Halogen Free





Applications

• Distributed Power Systems
• Battery Charger
• Pre-Regulator for Linear Regulators
• WLED Drivers





Specifications

Attribute Attribute Value
Manufacturer Richtek
Product Category DC Switching Regulators
Series -
Packaging Alternate Packaging
Package-Case SOT-23-6 Thin, TSOT-23-6
Operating-Temperature -40°C ~ 85°C (TA)
Mounting-Type Surface Mount
Output-Type Adjustable
Function Step-Down
Supplier-Device-Package TSOT-23-6
Number-of-Outputs 1 Output
Topology Buck
Frequency-Switching 700kHz
Current-Output 1.2A
Output-Configuration Positive
Output Voltage 0.8V
Voltage-Output-Max 15V
Synchronous-Rectifier No
Voltage-Input-Min 4.5V
Voltage-Input-Max 24V

Descriptions

Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 1.2A SOT-23-6 Thin, TSOT-23-6
