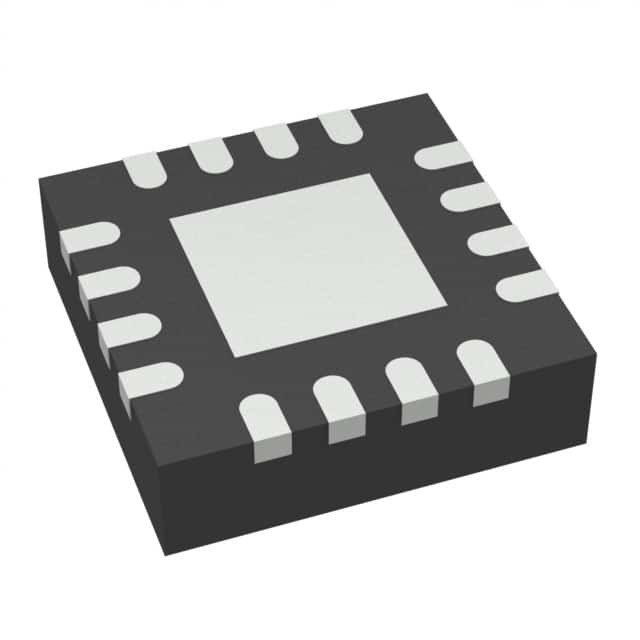

TPS55340RTER IC REG BOOST ADJ 5.25A 16WQFN Texas Instruments

TPS55340RTER Description

The TPS55340RTER is an integrated 5A wide input range boost/SEPIC/flyback DC/DC regulator in 16 pin WQFN package. This is a monolithic, non-synchronous, switching regulator with integrated 5A, 40V power switch. The device can be configured in several standard switching-regulator topologies, including boost, SEPIC and isolated flyback. The device has a wide input voltage range to support applications with input voltage from multicell batteries or regulated 3.3V, 5V, 12Vand 24V power rails. It regulates output voltage with current mode PWM (pulse width modulation) control and has an internal oscillator. The switching frequency of PWM is set by either an external resistor or by synchronizing to an external clock signal. It features a programmable soft-start function to limit inrush current during start-up and has other built-in protection features including cycle-by-cycle overcurrent limit and thermal shutdown. It is used in thunderbolt port, USB Type-C power delivery & power docking.

TPS55340RTER Features

Frequency adjustable from 100KHz to 1.2MHz
Reference voltage of ±0.7%
Pulse skipping for higher efficiency at light loads
Operating temperature range from -40°C to 150°C
Input supply range from 2.9V to 32V
Operating quiescent current is 0.5mA
2.7µA shutdown supply current
Fixed frequency current mode PWM control
Synchronization capability to external clock, adjustable soft-start time

TPS55340RTER Applications

Industrial
Power Management
Consumer Electronics
