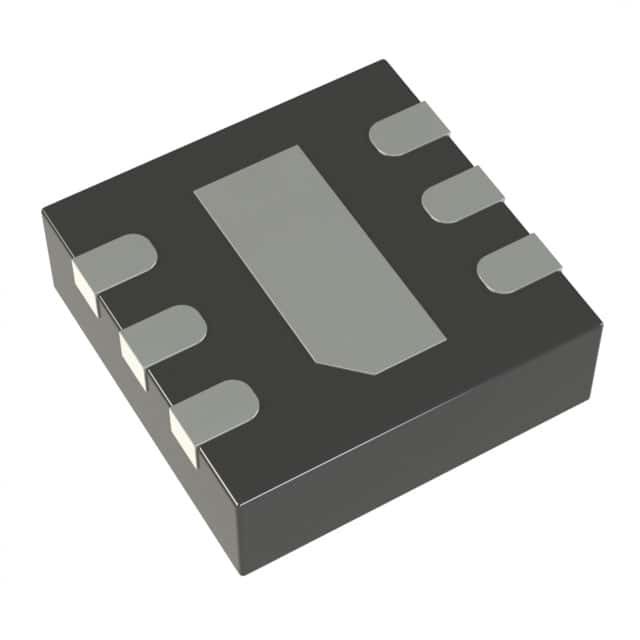

LTC3204EDC-5#TRPBF IC REG CHARGE PUMP 5V 150MA 6DFN Analog Devices Inc.
| Brand Name | Analog Devices Inc. |
|---|---|
| Model Number | LTC3204EDC-5#TRPBF |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Function | Step-Up | Output Configuration | Positive |
|---|---|---|---|
| Topology | Charge Pump | Output Type | Fixed |
| Number Of Outputs | 1 | Voltage - Input (Min) | 2.7V |
| Voltage - Input (Max) | 5.5V | Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - | Current - Output | 150mA |
| Frequency - Switching | 1.2MHz | Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 85°C (TA) | Mounting Type | Surface Mount |
| Package / Case | 6-WFDFN Exposed Pad | Supplier Device Package | 6-DFN (2x2) |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| LTC3204EDC-5#TRPBF | IC REG CHARGE PUMP 5V 150MA 6DFN | |
| LTC3204BEDC-5#TRMPBF | IC REG CHARGE PUMP 5V 150MA 6DFN | |
| LTC3542EDC#TRMPBF | IC REG BUCK ADJ 500MA 6DFN | |
| LTC3240EDC-3.3#TRMPBF | IC REG CHARGE PUMP 3.3V 6DFN | |
| LTC3221EDC-3.3#TRMPBF | IC REG CHARG PUMP 3.3V 60MA 6DFN | |
| LTC3526LEDC#TRMPBF | IC REG BOOST ADJ 550MA 6DFN | |
| LTC3204EDC-3.3#TRMPBF | IC REG CHARG PUMP 3.3V 50MA 6DFN | |
| LTC3221EDC#TRMPBF | IC REG CHARGE PUMP ADJ 60MA 6DFN | |
| LTC3526BEDC#TRMPBF | IC REG BOOST ADJ 500MA 6DFN | |
| LTC3526LEDC-2#TRMPBF | IC REG BOOST ADJ 550MA 6DFN | |
| LTC3542IDC#TRMPBF | IC REG BUCK ADJ 500MA 6DFN | |
| LTC3240EDC-2.5#TRMPBF | IC REG CHARGE PUMP 2.5V 6DFN | |
| LTC3427EDC#TRMPBF | IC REG BOOST ADJ 500MA 6DFN | |
| LTC3427EDC#TRPBF | IC REG BOOST ADJ 500MA 6DFN | |
| LTC3563EDC#TRMPBF | IC REG BUCK PROG 500MA 6DFN | |
| LTC3526LBEDC-2#TRPBF | IC REG BOOST ADJ 550MA 6DFN | |
| LTC3204EDC-5#TRMPBF | IC REG CHARGE PUMP 5V 150MA 6DFN | |
| LTC3204BEDC-5#TRPBF | IC REG CHARGE PUMP 5V 150MA 6DFN | |
| LTC3221EDC#TRPBF | IC REG CHARGE PUMP ADJ 60MA 6DFN | |
| LTC3240EDC-3.3#TRPBF | IC REG CHARGE PUMP 3.3V 6DFN | |
| LTC3221EDC-5#TRMPBF | IC REG CHARGE PUMP 5V 60MA 6DFN | |
| LT3460EDC-1#TRMPBF | IC REG BST SEPIC ADJ 180MA 6DFN | |
| LTC3526EDC-2#TRMPBF | IC REG BOOST ADJ 500MA 6DFN | |
| LTC3526LEDC#TRPBF | IC REG BOOST ADJ 550MA 6DFN | |
| LTC3542IDC#TRPBF | IC REG BUCK ADJ 500MA 6DFN | |
| LTC3526LBEDC#TRMPBF | IC REG BOOST ADJ 550MA 6DFN | |
| LTC3526LBEDC-2#TRMPBF | IC REG BOOST ADJ 550MA 6DFN | |
| LTC3526LBEDC#TRPBF | IC REG BOOST ADJ 550MA 6DFN | |
| LTC3221EDC-5#TRPBF | IC REG CHARGE PUMP 5V 60MA 6DFN | |
| LTC3526BEDC-2#TRMPBF | IC REG BOOST ADJ 500MA 6DFN | |
| LTC3221EDC-3.3#TRPBF | IC REG CHARG PUMP 3.3V 60MA 6DFN | |
| LTC3526LEDC-2#TRPBF | IC REG BOOST ADJ 550MA 6DFN | |
| LTC3459EDC#TRMPBF | IC REG BOOST ADJ 60MA 6DFN | |
| LTC3563EDC#TRPBF | IC REG BUCK PROG 500MA 6DFN | |
| LTC3204BEDC-3.3#TRPBF | IC REG CHARG PUMP 3.3V 50MA 6DFN | |
| LTC3204EDC-3.3#TRPBF | IC REG CHARG PUMP 3.3V 50MA 6DFN | |
| LTC3240EDC-2.5#TRPBF | IC REG CHARGE PUMP 2.5V 6DFN | |
| LTC3542EDC#TRPBF | IC REG BUCK ADJ 500MA 6DFN | |
| LT3460EDC-1#TRPBF | IC REG BST SEPIC ADJ 180MA 6DFN | |
| LTC3526EDC#TRPBF | IC REG BOOST ADJ 500MA 6DFN | |
| LTC3526EDC-2#TRPBF | IC REG BOOST ADJ 500MA 6DFN | |
| LTC3526BEDC-2#TRPBF | IC REG BOOST ADJ 500MA 6DFN | |
| LTC3526BEDC#TRPBF | IC REG BOOST ADJ 500MA 6DFN | |
| LTC3204BEDC-3.3#TRMPBF | IC REG CHARG PUMP 3.3V 50MA 6DFN | |
| LTC3459EDC#TRPBF | IC REG BOOST ADJ 60MA 6DFN | |
| LTC3526EDC#TRMPBF | IC REG BOOST ADJ 500MA 6DFN | |
| LTC3459EDC | IC REG BOOST ADJ 60MA 6DFN |
Product Description
Product Details
DESCRIPTION
The LTC®3204-3.3/LTC3204-5/LTC3204B-3.3/LTC3204B-5 are low noise, constant frequency (1.2MHz) switched capacitor voltage doublers. The LTC3204-3.3/LTC3204B-3.3 can produce a regulated output voltage of 3.3V from a minimum input voltage of 1.8V (2 alkaline cells) whereas the LTC3204-5/LTC3204B-5 can produce 5V from a minimum of 2.7V (Li-Ion battery) input.
FEATURES
■ Fixed 3.3V or 5V Outputs■ VIN Range:
1.8V to 4.5V (LTC3204-3.3/LTC3204B-3.3)
2.7V to 5.5V (LTC3204-5/LTC3204B-5)
■ Output Current:
Up to 150mA (LTC3204-5/LTC3204B-5)
Up to 50mA (LTC3204-3.3/LTC3204B-3.3)
■ Automatic Burst Mode® Operation with IQ = 48µA (LTC3204-3.3/LTC3204-5)
■ Constant Frequency Operation at All Loads (LTC3204B-3.3/LTC3204B-5)
■ Low Noise Constant Frequency (1.2MHz) Operation*
■ Built-In Soft-Start Reduces Inrush Current
■ Shutdown Disconnects Load from Input
■ Shutdown Current <1µA
■ Short-Circuit/Thermal Protection
■ Available in Low Profile 6-Lead DFN Package
APPLICATIONS
■ 2 AA Cell to 3.3V■ Li-Ion to 5V
■ USB On-The-Go Devices
■ White LED Drivers
■ Handheld Devices
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Analog Devices / Linear Technology |
| Product Category | DC Switching Regulators |
| Series | - |
| Packaging | Tape & Reel (TR) Alternate Packaging |
| Package-Case | 6-WFDFN Exposed Pad |
| Operating-Temperature | -40°C ~ 85°C (TA) |
| Mounting-Type | Surface Mount |
| Output-Type | Fixed |
| Function | Step-Up |
| Supplier-Device-Package | 6-DFN (2x2) |
| Number-of-Outputs | 1 Output |
| Topology | Charge Pump |
| Frequency-Switching | 1.2MHz |
| Current-Output | 150mA |
| Output-Configuration | Positive |
| Output Voltage | 5V |
| Voltage-Output-Max | - |
| Synchronous-Rectifier | No |
| Voltage-Input-Min | 2.7V |
| Voltage-Input-Max | 5.5V |
Descriptions
LTC3204 - Low Noise Regulated Charge Pump in 2 脳 2 DFN
