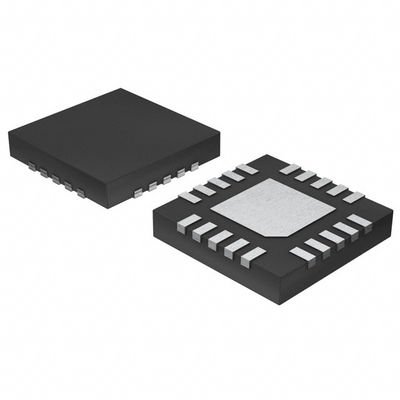

MAX17543ATP+T IC REG BUCK ADJ 2.5A 20TQFN Analog Devices Inc./Maxim Integrated
| Brand Name | Analog Devices Inc./Maxim Integrated |
|---|---|
| Model Number | MAX17543ATP+T |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Function | Step-Down | Output Configuration | Positive |
|---|---|---|---|
| Topology | Buck | Output Type | Adjustable |
| Number Of Outputs | 1 | Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 42V | Voltage - Output (Min/Fixed) | 0.9V |
| Voltage - Output (Max) | 37.8V | Current - Output | 2.5A |
| Frequency - Switching | 100kHz ~ 2.2MHz | Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) | Mounting Type | Surface Mount |
| Package / Case | 20-WFQFN Exposed Pad | Supplier Device Package | 20-TQFN (4x4) |
