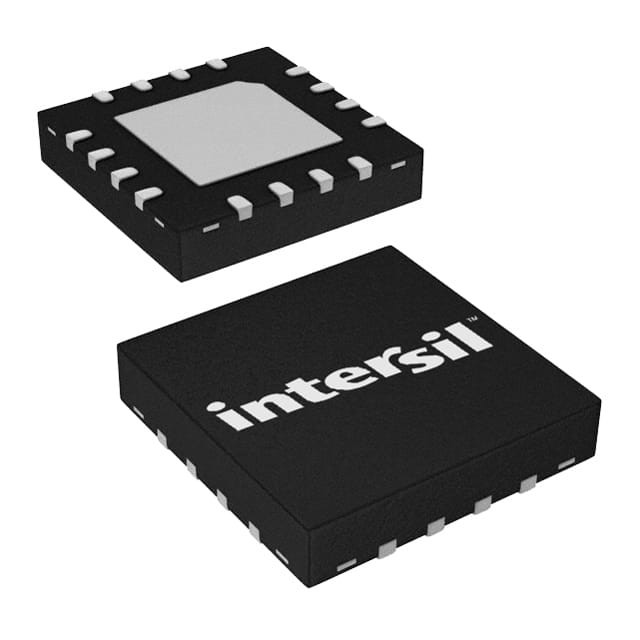

ISL8024IRTAJZ IC REG BUCK ADJUSTABLE 4A 16TQFN Renesas Electronics America Inc
| Brand Name | Renesas Electronics America Inc |
|---|---|
| Model Number | ISL8024IRTAJZ |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Function | Step-Down | Output Configuration | Positive |
|---|---|---|---|
| Topology | Buck | Output Type | Adjustable |
| Number Of Outputs | 1 | Voltage - Input (Min) | 2.7V |
| Voltage - Input (Max) | 5.5V | Voltage - Output (Min/Fixed) | 0.6V |
| Voltage - Output (Max) | 5.5V | Current - Output | 4A |
| Frequency - Switching | 490kHz ~ 4.2MHz | Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) | Mounting Type | Surface Mount |
| Package / Case | 16-WFQFN Exposed Pad | Supplier Device Package | 16-TQFN (3x3) |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| ISL8024IRTAJZ | IC REG BUCK ADJUSTABLE 4A 16TQFN | |
| ISL78234ARZ-T7A | IC REG BUCK ADJUSTABLE 4A 16TQFN | |
| ISL78233AARZ-T7A | IC REG BUCK ADJUSTABLE 3A 16TQFN | |
| ISL8024AIRTAJZ | IC REG BUCK ADJUSTABLE 4A 16TQFN | |
| ISL8024IRTAJZ-T7A | IC REG BUCK ADJUSTABLE 4A 16TQFN | |
| ISL8023AIRTAJZ | IC REG BUCK ADJUSTABLE 3A 16TQFN | |
| ISL8023IRTAJZ-T7A | IC REG BUCK ADJUSTABLE 3A 16TQFN | |
| ISL8024AIRTAJZ-T7A | IC REG BUCK ADJUSTABLE 4A 16TQFN | |
| ISL8025AIRTAJZ-T7A | IC REG BUCK ADJUSTABLE 5A 16TQFN | |
| ISL8025IRTAJZ | IC REG BUCK ADJUSTABLE 5A 16TQFN | |
| ISL8026IRTAJZ-T7A | IC REG BUCK ADJUSTABLE 6A 16TQFN | |
| ISL8025AIRTAJZ | IC REG BUCK ADJUSTABLE 5A 16TQFN | |
| ISL78235ARZ-T7A | IC REG BUCK ADJUSTABLE 5A 16TQFN | |
| ISL8023AIRTAJZ-T | IC REG BUCK ADJUSTABLE 3A 16TQFN | |
| ISL8023IRTAJZ | IC REG BUCK ADJUSTABLE 3A 16TQFN | |
| ISL8023IRTAJZ-T | IC REG BUCK ADJUSTABLE 3A 16TQFN | |
| ISL8023IRTAJZ-T7 | IC REG BUCK ADJUSTABLE 3A 16TQFN | |
| ISL8024AIRTAJZ-T | IC REG BUCK ADJUSTABLE 4A 16TQFN | |
| ISL8024IRTAJZ-T | IC REG BUCK ADJUSTABLE 4A 16TQFN | |
| ISL8024IRTAJZ-T7 | IC REG BUCK ADJUSTABLE 4A 16TQFN | |
| ISL8026FRTAJZ | IC REG BUCK ADJUSTABLE 6A 16TQFN | |
| ISL8025AIRTAJZ-T | IC REG BUCK ADJUSTABLE 5A 16TQFN | |
| ISL8025IRTAJZ-T | IC REG BUCK ADJUSTABLE 5A 16TQFN | |
| ISL8026IRTAJZ | IC REG BUCK ADJUSTABLE 6A 16TQFN | |
| ISL8026IRTAJZ-T | IC REG BUCK ADJUSTABLE 6A 16TQFN | |
| ISL8026AIRTAJZ | IC REG BUCK ADJUSTABLE 6A 16TQFN | |
| ISL8026AIRTAJZ-T | IC REG BUCK ADJUSTABLE 6A 16TQFN | |
| ISL8026FRTAJZ-T | IC REG BUCK ADJUSTABLE 6A 16TQFN | |
| ISL78233ARZ | IC REG BUCK ADJUSTABLE 3A 16TQFN | |
| ISL78233ARZ-T | IC REG BUCK ADJUSTABLE 3A 16TQFN | |
| ISL78234ARZ | IC REG BUCK ADJUSTABLE 4A 16TQFN | |
| ISL78234ARZ-T | IC REG BUCK ADJUSTABLE 4A 16TQFN | |
| ISL78233ARZ-T7A | IC REG BUCK ADJUSTABLE 3A 16TQFN | |
| ISL78235ARZ | IC REG BUCK ADJUSTABLE 5A 16TQFN | |
| ISL78235ARZ-T | IC REG BUCK ADJUSTABLE 5A 16TQFN | |
| ISL78235AARZ-T7A | IC REG BUCK ADJ 5A 16WFQFN | |
| ISL8023AIRTAJZ-T7A | IC REG BUCK ADJUSTABLE 3A 16TQFN | |
| ISL8025IRTAJZ-T7A | IC REG BUCK ADJUSTABLE 5A 16TQFN | |
| ISL8026FRTAJZ-T7A | IC REG BUCK ADJUSTABLE 6A 16TQFN |
Product Description
Product Details
The ISL8023, ISL8024 are highly efficient, monolithic, synchronous step-down DC/DC converters that can deliver 3A (ISL8023) or 4A (ISL8024) of continuous output current from a 2.7V to 5.5V input supply. The devices use current mode control architecture to deliver very low duty cycle operation at high frequency with fast transient response and excellent loop stability.
Features
• 2.7V to 5.5V Input Voltage Range• Very Low On-Resistance FET’s - P-Channel 45mΩ and N-channel 19mΩ Typical Values
• High Efficiency Synchronous Buck Regulator with up to 95% Efficiency
• 0.8% Reference Accuracy Over-temperature/Load/Line
• Complete BOM with as Few as 3 External Parts
• Start-up with Pre-Biased Output
• Internal Soft-Start - 1ms or Adjustable
• Soft-Stop Output Discharge During Disabled
• Adjustable Frequency from 500kHz to 4MHz - Default at 1MHz (8023/24), 2MHz (8023A/24A)
• External Synchronization up to 4MHz
• Over-temperature, Overcurrent, Overvoltage and Negative Overcurrent Protection
• Tiny 3x3 QFN Package
Applications
• DC/DC POL Modules• μC/µP, FPGA and DSP Power
• Plug-in DC/DC Modules for Routers and Switchers
• Portable Instruments
• Test and Measurement Systems
• Li-ion Battery Powered Devices
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Renesas |
| Product Category | DC Switching Regulators |
| Series | ISL8024 |
| Type | Step Down |
| Packaging | Tube Alternate Packaging |
| Mounting-Style | SMD/SMT |
| Package-Case | 16-WFQFN Exposed Pad |
| Operating-Temperature | -40°C ~ 85°C (TA) |
| Mounting-Type | Surface Mount |
| Output-Type | Adjustable |
| Function | Step-Down |
| Supplier-Device-Package | 16-TQFN (3x3) |
| Number-of-Outputs | 1 Output |
| Topology | Buck |
| Frequency-Switching | 490kHz ~ 4.2MHz |
| Current-Output | 4A |
| Output-Configuration | Positive |
| Output Voltage | 0.6V |
| Voltage-Output-Max | 5.5V |
| Synchronous-Rectifier | Yes |
| Voltage-Input-Min | 2.7V |
| Voltage-Input-Max | 5.5V |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Output-Voltage | 0.6 V to 5.5 V |
| Input-Voltage-MAX | 5.5 V |
| Output-Current | Adjustable |
| Switching-Frequency | 500 kHz to 4000 kHz |
| Input-Voltage-MIN | 2.7 V |
| Package-Case | QFN-EP-16 |
Descriptions
Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 4A 16-WFQFN Exposed Pad
Conv DC-DC 2.7V to 5.5V Step Down Single-Out 0.6V to 5.5V 4A 16-Pin QFN EP Tube
Voltage Regulators - Switching Regulators 4A ADJ VOUT LW QUIES CENT CUR SYNC BUCK
