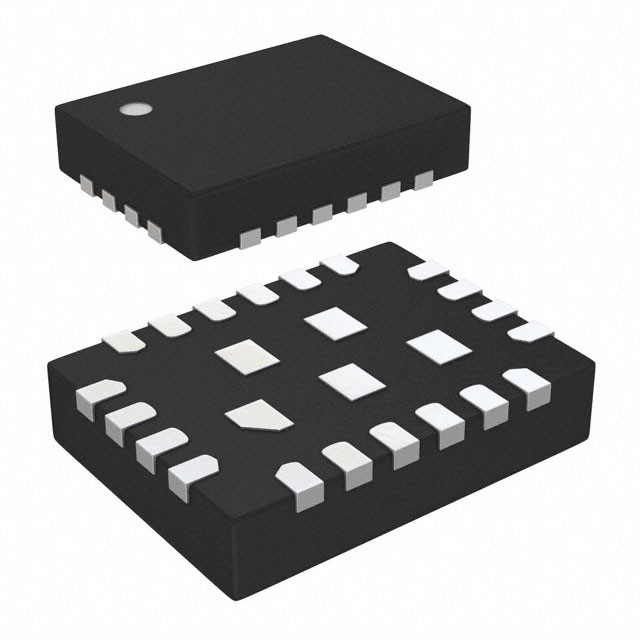

MP4470AGL-Z IC REG BUCK ADJUSTABLE 5A 20QFN Monolithic Power Systems Inc.
| Brand Name | Monolithic Power Systems Inc. |
|---|---|
| Model Number | MP4470AGL-Z |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Function | Step-Down | Output Configuration | Positive |
|---|---|---|---|
| Topology | Buck | Output Type | Adjustable |
| Number Of Outputs | 1 | Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 36V | Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | 32.4V | Current - Output | 5A |
| Frequency - Switching | 200kHz ~ 1MHz | Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) | Mounting Type | Surface Mount |
| Package / Case | 20-VFQFN Exposed Pad | Supplier Device Package | 20-QFN (3x4) |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| MP4470AGL-Z | IC REG BUCK ADJUSTABLE 5A 20QFN | |
| MP4470AGL-P | IC REG BUCK ADJUSTABLE 5A 20QFN | |
| MP9447GL-Z | IC REG BUCK ADJUSTABLE 5A 20QFN | |
| MPQ4470AGL-P | IC REG BUCK ADJUSTABLE 5A 20QFN | |
| MP9447GL-P | IC REG BUCK ADJUSTABLE 5A 20QFN | |
| MPQ4470GL-P | IC REG BUCK ADJUSTABLE 5A 20QFN | |
| MP4470GL-Z | IC REG BUCK ADJUSTABLE 5A 20QFN | |
| MPQ4470AGL-AEC1-P | IC REG BUCK ADJUSTABLE 5A 20QFN | |
| MPQ4470GL-AEC1-Z | IC REG BUCK ADJUSTABLE 5A 20QFN | |
| MP8736DL-LF-Z | IC REG BUCK ADJUSTABLE 6A 20QFN | |
| MP9473GL-Z | IC REG BUCK ADJUSTABLE 3.5A | |
| MP4473GL-Z | IC REG BUCK ADJUSTABLE 3.5A | |
| MP9473GL-P | IC REG BUCK ADJUSTABLE 3.5A | |
| MP8736DL-LF-P | IC REG BUCK ADJUSTABLE 6A 20QFN | |
| MPQ4473GL-Z | IC REG BUCK ADJUSTABLE 3.5A IND | |
| MP4473GL-P | IC REG BUCK ADJUSTABLE 3.5A | |
| MPQ4473GL-AEC1-Z | IC REG BUCK ADJ 3.5A 20QFN | |
| MP4470GL-P | IC REG BUCK ADJUSTABLE 5A 20QFN | |
| MPQ4470GL-Z | IC REG BUCK ADJUSTABLE 5A 20QFN | |
| MPQ4473GL-P | IC REG BUCK ADJUSTABLE 3.5A IND | |
| MPQ4473GL-AEC1-P | IC REG BUCK ADJ 3.5A 20QFN | |
| MPQ4470AGL-Z | IC REG BUCK ADJUSTABLE 5A 20QFN | |
| MPQ4470AGL-AEC1-Z | IC REG BUCK ADJUSTABLE 5A 20QFN | |
| MPQ4470GL-AEC1-P | IC REG BUCK ADJUSTABLE 5A 20QFN | |
| MP38900DL-B-LF-P | IC REG BUCK ADJUSTABLE 10A 20QFN | |
| MP38900DL-B-LF-Z | IC REG BUCK ADJUSTABLE 10A 20QFN | |
| MP38900DL-LF-P | IC REG BUCK ADJUSTABLE 10A 20QFN | |
| MP38900DL-LF-Z | IC REG BUCK ADJUSTABLE 10A 20QFN | |
| NB6381DL-LF-P | IC REG BUCK ADJUSTABLE 8A 20QFN | |
| NB6381DL-LF-Z | IC REG BUCK ADJUSTABLE 8A 20QFN | |
| NB638DL-LF-P | IC REG BUCK ADJUSTABLE 7A 20QFN | |
| NB639DL-LF-P | IC REG BUCK ADJUSTABLE 8A 20QFN | |
| NB639DL-LF-Z | IC REG BUCK ADJUSTABLE 8A 20QFN | |
| NB638DL-LF-Z | IC REG BUCK ADJUSTABLE 7A 20QFN | |
| MP38900DL-Z | IC REG BUCK ADJUSTABLE 10A 20QFN | |
| MP38900DL-B-Z | IC REG BUCK ADJUSTABLE 10A 20QFN |
Product Description
Product Details
DESCRIPTION
The MP4470/4470A is a fully-integrated, high frequency, synchronous, rectified, step-down, switch-mode converter. It offers a very compact solution to achieve a 5A, continuous-output current over a wide input-supply range with excellent load and line regulation. It also provides fast transient response and good stability for wide input-supply and load range. The MP4470/4470A operates at high efficiency over a wide output current load range.
FEATURES
• Wide 4.5V-to-36V Operating Input Range• Guaranteed 5A, Continuous Output Current
•Internal 40mΩHigh-Side, 20mΩLow-Side Power MOSFETs
•Proprietary Switching-Loss-Reduction Technology
• 1% Reference Voltage
• Programmable Soft-Start Time
• Low Drop-out Mode
• 200kHz-to-1MHz Switching Frequency
• SCP, OCP, OVP Latch(MP4470 only), UVP, and Thermal Shutdown
• Output Adjustable from 0.8V to 0.9×VIN
• Available in a 3×4mm 20-pin QFN Package
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Monolithic Power Systems |
| Product Category | DC Switching Regulators |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Package-Case | 20-VFQFN Exposed Pad |
| Operating-Temperature | -40°C ~ 125°C (TJ) |
| Mounting-Type | Surface Mount |
| Output-Type | Adjustable |
| Function | Step-Down |
| Supplier-Device-Package | 20-QFN (3x4) |
| Number-of-Outputs | 1 Output |
| Topology | Buck |
| Frequency-Switching | 200kHz ~ 1MHz |
| Current-Output | 5A |
| Output-Configuration | Positive |
| Output Voltage | 0.8V |
| Voltage-Output-Max | 32.4V |
| Synchronous-Rectifier | Yes |
| Voltage-Input-Min | 4.5V |
| Voltage-Input-Max | 36V |
Descriptions
Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 5A 20-VFQFN Exposed Pad
Voltage Regulators - Switching Regulators 36V,5A sync Buck 3x4QFN w/o OVP Latch
