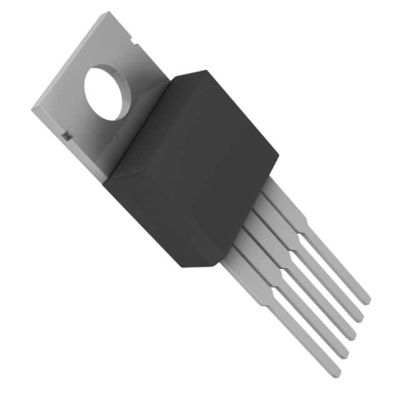

AP1501-T5G-U IC REG BUCK ADJ 3A TO220-5 Diodes Incorporated
| Brand Name | Diodes Incorporated |
|---|---|
| Model Number | AP1501-T5G-U |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Function | Step-Down | Output Configuration | Positive |
|---|---|---|---|
| Topology | Buck | Output Type | Adjustable |
| Number Of Outputs | 1 | Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 40V | Voltage - Output (Min/Fixed) | 1.23V |
| Voltage - Output (Max) | 37V | Current - Output | 3A |
| Frequency - Switching | 150kHz | Synchronous Rectifier | No |
| Operating Temperature | -20°C ~ 85°C (TA) | Mounting Type | Through Hole |
| Package / Case | TO-220-5 | Supplier Device Package | TO-220-5 |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| AP1501-T5G-U | IC REG BUCK ADJ 3A TO220-5 | |
| AP1506-50T5RL-U | IC REG BUCK 5V 3A TO220-5R | |
| AP1506-33T5L-U | IC REG BUCK 3.3V 3A TO220-5 | |
| AP1501A-50T5L-U | IC REG BUCK 5V 5A TO220-5 | |
| AP1501A-T5L-U | IC REG BUCK ADJ 5A TO220-5 | |
| AP1512A-T5L-U | IC REG BUCK ADJ 3A TO220-5 | |
| AP1501-12T5G-U | IC REG BUCK 3A TO220-5 | |
| AP1501-12T5RG-U | IC REG BUCK 3A TO220-5 | |
| AP1501-33T5G-U | IC REG BUCK 3A TO220-5 | |
| AP1501-33T5RG-U | IC REG BUCK 3A TO220-5 | |
| AP1501-50T5G-U | IC REG BUCK 3A TO220-5 | |
| AP1501-50T5RG-U | IC REG BUCK 3A TO220-5 | |
| AP1501A-12T5RG-U | IC REG BUCK 3A TO220-5 | |
| AP1501A-33T5G-U | IC REG BUCK 3A TO220-5 | |
| AP1501A-33T5RG-U | IC REG BUCK 3A TO220-5 | |
| AP1501A-50T5G-U | IC REG BUCK 3A TO220-5 | |
| AP1501A-T5G-U | IC REG BUCK 3A TO220-5 | |
| AP1501A-T5RG-U | IC REG BUCK 3A TO220-5R | |
| AP1501-T5RG-U | IC REG BUCK 3A TO220-5 | |
| AP1506-12T5G-U | IC REG BUCK 3A TO220-5 | |
| AP1506-12T5RG-U | IC REG BUCK 3A TO220-5 | |
| AP1506-33T5G-U | IC REG BUCK 3A TO220-5 | |
| AP1506-33T5RG-U | IC REG BUCK 3A TO220-5 | |
| AP1506-50T5G-U | IC REG BUCK 3A TO220-5 | |
| AP1506-50T5RG-U | IC REG BUCK 3A TO220-5 | |
| AP1506-T5G-U | IC REG BUCK 3A TO220-5 | |
| AP1506-T5RG-U | IC REG BUCK 3A TO220-5 | |
| AP3003T-12E1 | IC REG BUCK TO220-5 | |
| AP3003T-3.3E1 | IC REG BUCK TO220-5 | |
| AP3003T-5.0E1 | IC REG BUCK TO220-5 | |
| AP3003T-ADJE1 | IC REG BUCK TO220-5 | |
| AP1501-12T5L-U | IC REG BUCK 12V 3A TO220-5L | |
| AP1501-33T5L-U | IC CONV DC-DC 3A 3.3V TO220-5L | |
| AP1501A-33T5L-U | IC CONV DC-DC 5A 3.3V TO220-5L | |
| AP1501A-12T5G-U | IC REG DC-DC BUCK TO220-5 |
Product Description
Product Details
General Description
The AP1501 is a fully integrated step-down DC/DC converter, with the ability to drive 3A load without the need of additional driver components. The AP1501 operates at a switching frequency of 150KHZ enabling the use of small size filter components. As a result, board space is reduced and BOM costs are lowered.
Features
• Output voltage: 3.3V, 5V, 12V and adjustable output version• Adjustable version output voltage range, 1.23V to 37V+4%
• 150KHZ +15% fixed switching frequency
• Voltage mode non-synchronous PWM control
• Thermal-shutdown and current-limit protection
• ON/OFF shutdown control input
• Operating voltage can be up to 40V
• Output load current: 3A
• Low power standby mode
• Built-in switching transistor on chip
• Lead Free packages: TO263-5L and TO220-5L(R)
• TO263-5L and TO220-5L(R): Available in “Green” Molding Compound (No Br, Sb)
• Lead Free Finish/RoHS Compliant (Note 1)
Applications
• Simple High-efficiency step-down regulator• On-card switching regulators
• Positive to negative converter
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Diodes Incorporated |
| Product Category | DC Switching Regulators |
| Series | AP1501T |
| Type | Voltage Converter |
| Packaging | Tube |
| Unit-Weight | 0.105822 oz |
| Mounting-Style | Through Hole |
| Operating-Temperature-Range | - 20 C to + 85 C |
| Package-Case | TO-220-5 |
| Operating-Temperature | -20°C ~ 85°C (TA) |
| Mounting-Type | Through Hole |
| Output-Type | Adjustable |
| Function | Step-Down |
| Supplier-Device-Package | TO-220-5 |
| Number-of-Outputs | 1 Output |
| Topology | Buck |
| Frequency-Switching | 150kHz |
| Current-Output | 3A |
| Output-Configuration | Positive |
| Output Voltage | 1.23V |
| Voltage-Output-Max | 37V |
| Synchronous-Rectifier | No |
| Voltage-Input-Min | 4.5V |
| Voltage-Input-Max | 40V |
| Shutdown | Shutdown |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 20 C |
| Output-Voltage | 1.23 V to 37 V |
| Operating-Supply-Current | 5 mA |
| Input-Voltage | 4.5 V to 40 V |
| Input-Voltage-MAX | 40 V |
| Output-Current | 3 A |
| Switching-Frequency | 150 kHz |
| Input-Voltage-MIN | 4.5 V |
| Supply-Voltage-Min | 4.5 V |
| Package-Case | TO-220-5 |
| Manufacturer Part# | Description | Manufacturer | Compare |
| AP1501-T5L-U Power Circuits |
Switching Regulator, Voltage-mode, 6.5A, 173kHz Switching Freq-Max, BIPolar, ROHS COMPLIANT, TO-220, 5 PIN | Diodes Incorporated | AP1501-T5G-U vs AP1501-T5L-U |
| AP1501-T5 Power Circuits |
6.5A SWITCHING REGULATOR, 173kHz SWITCHING FREQ-MAX, PSFM5, TO-220, 5 PIN | Diodes Incorporated | AP1501-T5G-U vs AP1501-T5 |
| AP1501-T5L Power Circuits |
IC,SMPS CONTROLLER,VOLTAGE-MODE,BIPOLAR,SIP,5PIN,PLASTIC | Diodes Incorporated | AP1501-T5G-U vs AP1501-T5L |
Descriptions
Buck Switching Regulator IC Positive Adjustable 1.23V 1 Output 3A TO-220-5
Conv DC-DC 4.5V to 40V Step Down Single-Out 1.23V to 37V 3A 5-Pin(5+Tab) TO-220 Tube
Voltage Regulators - Switching Regulators DCDC Conv HV Buck 150kHz 3A load 40V
