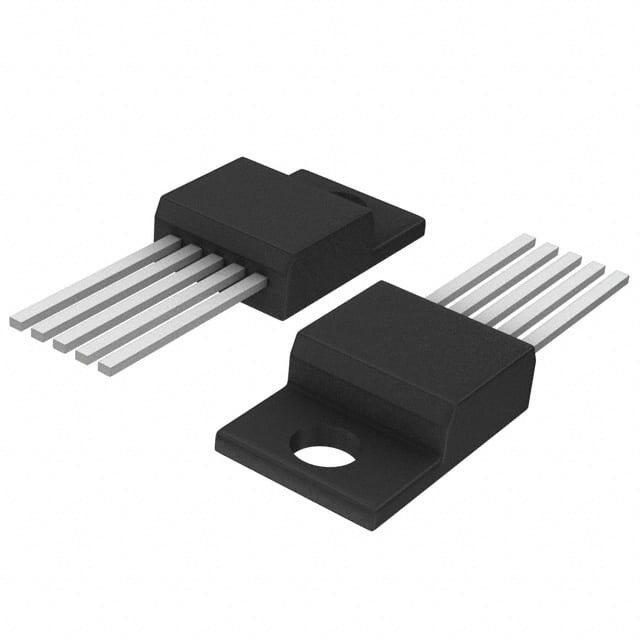

LM2575T-ADJG IC REG BUCK ADJ 1A TO220-5 onsemi
| Brand Name | onsemi |
|---|---|
| Model Number | LM2575T-ADJG |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Function | Step-Down | Output Configuration | Positive |
|---|---|---|---|
| Topology | Buck | Output Type | Adjustable |
| Number Of Outputs | 1 | Voltage - Input (Min) | 4.75V |
| Voltage - Input (Max) | 40V | Voltage - Output (Min/Fixed) | 1.23V |
| Voltage - Output (Max) | 37V | Current - Output | 1A |
| Frequency - Switching | 52kHz | Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C (TJ) | Mounting Type | Through Hole |
| Package / Case | TO-220-5 | Supplier Device Package | TO-220-5 |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| LM2575T-ADJG | IC REG BUCK ADJ 1A TO220-5 | |
| MC33166TG | IC REG BUCK BST ADJ 3.3A TO220-5 | |
| LM2576T-005G | IC REG MULTI CONFG 5V 3A TO220-5 | |
| LM2575T-5G | IC REG BUCK 5V 1A TO220-5 | |
| LM2575T-3.3G | IC REG BUCK 3.3V TO220-5 | |
| LM2575T-12G | IC REG BUCK 12V 1A TO220-5 | |
| LM2575T-15G | IC REG BUCK 15V 1A TO220-5 | |
| LM2576T-15G | IC REG MULT CONFG 15V 3A TO220-5 | |
| MC34166TG | IC REG BUCK BST ADJ 3.3A TO220-5 | |
| LM2576T-3.3G | IC REG MULTI CONFG 3.3V TO220-5 | |
| MC33167TG | IC REG BUCK BST ADJ 5.5A TO220-5 | |
| LM2576T-ADJG | IC REG MULT CONFG ADJ 3A TO220-5 | |
| LM2576T-012G | IC REG MULT CONFG 12V 3A TO220-5 | |
| LM2576T-005 | IC REG MULTI CONFG 5V 3A TO220-5 | |
| LM2575T-ADJ | IC REG BUCK ADJ 1A D2PAK-5 | |
| LM2576T-ADJ | IC REG MULT CONFG ADJ 3A TO220-5 | |
| MC33166T | IC REG BUCK BST ADJ 3.3A TO220-5 | |
| MC33167T | IC REG BUCK BST ADJ 5.5A TO220-5 | |
| MC34167T | IC REG BUCK BST ADJ 5.5A TO220-5 | |
| MC34166T | IC REG BUCK BST ADJ 3.3A TO220-5 | |
| LM2576T-3.3 | IC REG MULTI CONFG 3.3V TO220-5 | |
| MC34167TG | IC REG BUCK BST ADJ 5.5A TO220-5 | |
| LM2575T-012 | IC REG BUCK 12V 1A TO220-5 | |
| LM2575T-015 | IC REG BUCK 15V 1A TO220-5 | |
| LM2576T-012 | IC REG MULT CONFG 12V 3A TO220-5 | |
| LM2576T-015 | IC REG MULT CONFG 15V 3A TO220-5 | |
| LM2575T-3.3 | IC REG BUCK 3.3V TO220-5 | |
| LM2596TADJG | IC REG MULT CONFG ADJ 3A TO220-5 | |
| LM2595TADJG | IC REG MULT CONFG ADJ 1A TO220-5 |
Product Description
Product Details
The LM2575 series of regulators are monolithic integrated circuits ideally suited for easy and convenient design of a step−down switching regulator (buck converter). All circuits of this series are capable of driving a 1.0 A load with excellent line and load regulation.
These devices are available in fixed output voltages of 3.3 V, 5.0 V,12 V, 15 V, and an adjustable output version. These regulators were designed to minimize the number of external components to simplify the power supply design. Standard series of inductors optimized for use with the LM2575 are offered by several different inductor manufacturers.
Features
•3.3 V, 5.0 V, 12 V, 15 V, and Adjustable Output Versions•Adjustable Version Output Voltage Range of 1.23 V to 37 V ±4%
Maximum Over Line and Load Conditions
•Guaranteed 1.0 A Output Current
•Wide Input Voltage Range: 4.75 V to 40 V
•Requires Only 4 External Components
•52 kHz Fixed Frequency Internal Oscillator
•TTL Shutdown Capability, Low Power Standby Mode
•High Efficiency
•Uses Readily Available Standard Inductors
•Thermal Shutdown and Current Limit Protection
•Moisture Sensitivity Level (MSL) Equals 1
•Pb−Free Packages are Available
Applications
•Simple and High−Efficiency Step−Down (Buck) Regulators•Efficient Pre−Regulator for Linear Regulators
•On−Card Switching Regulators
•Positive to Negative Converters (Buck−Boost)
•Negative Step−Up Converters
•Power Supply for Battery Chargers
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | onsemi |
| Product Category | DC Switching Regulators |
| Series | LM2575 |
| Type | Charge Pump |
| Packaging | Tube |
| Unit-Weight | 0.105822 oz |
| Mounting-Style | Through Hole |
| Package-Case | TO-220-5 |
| Operating-Temperature | -40°C ~ 125°C (TJ) |
| Mounting-Type | Through Hole |
| Output-Type | Adjustable |
| Function | Step-Up, Step-Down, Step-Up/Step-Down |
| Supplier-Device-Package | TO-220-5 |
| Number-of-Outputs | 1 Output |
| Topology | Buck, Boost, Buck-Boost |
| Frequency-Switching | 52kHz |
| Current-Output | 1A |
| Output-Configuration | Positive or Negative |
| Output Voltage | 1.23V |
| Voltage-Output-Max | 37V |
| Synchronous-Rectifier | No |
| Voltage-Input-Min | 4.75V |
| Voltage-Input-Max | 40V |
| Output-Voltage | 1.23 V to 37 V |
| Input-Voltage-MAX | 45 V |
| Output-Current | 1 A |
| Switching-Frequency | 52 kHz |
| Package-Case | TO-220-5 |
Functional compatible component
Form,Package,Functional compatible component
| Manufacturer Part# | Description | Manufacturer | Compare |
| MIC4575BT Power Circuits |
3.2A SWITCHING REGULATOR, 220kHz SWITCHING FREQ-MAX, SFM5, TO-220, 5 PIN | Rochester Electronics LLC | LM2575T-ADJG vs MIC4575BT |
| LM2595T-ADJ/NOPB Power Circuits |
SIMPLE SWITCHER Power Converter 150 KHz 1A Step-Down Voltage Regulator 5-TO-220 | Texas Instruments | LM2575T-ADJG vs LM2595T-ADJ/NOPB |
| LM2575HVT-ADJ/NOPB Power Circuits |
SIMPLE SWITCHER 1A Step-Down Voltage Regulator 5-TO-220 -40 to 125 | Texas Instruments | LM2575T-ADJG vs LM2575HVT-ADJ/NOPB |
| LM2575T-ADJ Power Circuits |
3.2 A SWITCHING REGULATOR, 63 kHz SWITCHING FREQ-MAX, PSFM5, TO-220. 5 PIN | Rochester Electronics LLC | LM2575T-ADJG vs LM2575T-ADJ |
| LM2575HVT-ADJ Power Circuits |
IC 3.2 A SWITCHING REGULATOR, 63 kHz SWITCHING FREQ-MAX, PSFM5, TO-220, 5 PIN, Switching Regulator or Controller | National Semiconductor Corporation | LM2575T-ADJG vs LM2575HVT-ADJ |
| LM2595T-ADJ Power Circuits |
SIMPLE SWITCHER Power Converter 150 KHz 1A Step-Down Voltage Regulator 5-TO-220 | Texas Instruments | LM2575T-ADJG vs LM2595T-ADJ |
| LM2575WT Power Circuits |
3.2A SWITCHING REGULATOR, 63kHz SWITCHING FREQ-MAX, SFM5 | Microchip Technology Inc | LM2575T-ADJG vs LM2575WT |
| LM2575T-ADJ/NOPB Power Circuits |
SIMPLE SWITCHER 1A Step-Down Voltage Regulator 5-TO-220 -40 to 125 | Texas Instruments | LM2575T-ADJG vs LM2575T-ADJ/NOPB |
| MIC4575WT Power Circuits |
3.2A SWITCHING REGULATOR, 220kHz SWITCHING FREQ-MAX, SFM5 | Microchip Technology Inc | LM2575T-ADJG vs MIC4575WT |
| LM2575T-ADJG Power Circuits |
Buck Regulator, Switching, Adjustable Output Voltage, 1.0 A Adjustable 1.23 V to 37 V, TO-220 5 LEAD, 50-TUBE | ON Semiconductor | LM2575T-ADJG vs LM2575T-ADJG |
Descriptions
Buck, Boost, Buck-Boost Switching Regulator IC Positive or Negative Adjustable 1.23V 1 Output 1A TO-220-5
Conv DC-DC 4.75V to 40V Step Down Single-Out 1.23V to 37V 1A 5-Pin(5+Tab) TO-220 Tube
Voltage Regulators - Switching Regulators 1A 1.23-37V ADJ Buck PWM
