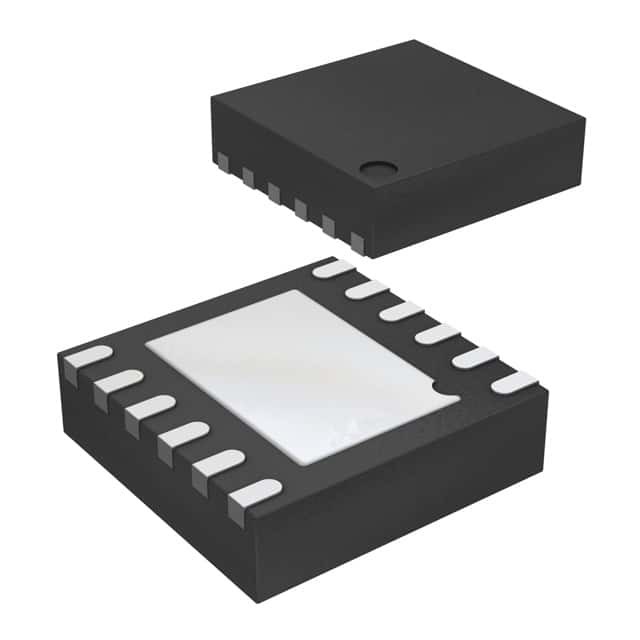

MIC33050-GYHL-TR IC REG BUCK 1.8V 600MA 12MLF Microchip Technology
| Brand Name | Microchip Technology |
|---|---|
| Model Number | MIC33050-GYHL-TR |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Function | Step-Down | Output Configuration | Positive |
|---|---|---|---|
| Topology | Buck | Output Type | Fixed |
| Number Of Outputs | 1 | Voltage - Input (Min) | 2.7V |
| Voltage - Input (Max) | 5.5V | Voltage - Output (Min/Fixed) | 1.8V |
| Voltage - Output (Max) | - | Current - Output | 600mA |
| Frequency - Switching | 4MHz | Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) | Mounting Type | Surface Mount |
| Package / Case | 12-VFDFN Exposed Pad, 12-MLF® | Supplier Device Package | 12-MLF™ (3x3) |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| MIC33050-GYHL-TR | IC REG BUCK 1.8V 600MA 12MLF | |
| MIC2230-AAYML-TR | IC REG BUCK ADJ 800MA DL 12MLF | |
| MIC33050-SYHL-TR | IC REG BUCK 3.3V 600MA 12MLF | |
| MIC2253-06YML-TR | IC REG BOOST ADJ 3.5A 12MLF | |
| MIC22200YML-TR | IC REG BUCK ADJUSTABLE 2A 12MLF | |
| MIC33050-4YHL-TR | IC REG BUCK 1.2V 600MA 12MLF | |
| MIC2207YML-TR | IC REG BUCK ADJUSTABLE 3A 12MLF | |
| MIC2238-S4YML-TR | IC REG BUCK 1.2V/3.3V 0.8A 12MLF | |
| MIC33050-AYHL-TR | IC REG BUCK ADJ 600MA 12MLF | |
| MIC22205YML-TR | IC REG BUCK ADJUSTABLE 2A 12MLF | |
| MIC4720YML-TR | IC REG BUCK ADJUSTABLE 2A 12MLF | |
| MIC4723YML-TR | IC REG BUCK ADJUSTABLE 3A 12MLF | |
| MIC2230-GFHYML-TR | IC REG BUCK 1.545V/1.8V DL 12MLF | |
| MIC2230-G4YML-TR | IC REG BUCK 1.2V/1.8V 0.8A 12MLF | |
| MIC2230-GSYML-TR | IC REG BUCK 1.8V/3.3V 0.8A 12MLF | |
| MIC2230-J4YML-TR | IC REG BUCK 1.2V/2.5V 0.8A 12MLF | |
| MIC2230-S4YML-TR | IC REG BUCK 1.2V/3.3V 0.8A 12MLF | |
| MIC2230-SSYML-TR | IC REG BUCK 3.3V 800MA DL 12MLF | |
| MIC33050-CYHL-TR | IC REG BUCK 1V 600MA 12MLF | |
| MIC2267YML-TR | IC REG BUCK ADJ 500MA 12MLF | |
| MIC2238-GFHYML-TR | IC REG BUCK 1.575V/1.8V DL 12MLF | |
| MIC2238-G4YML-TR | IC REG BUCK 1.2V/1.8V 0.8A 12MLF | |
| MIC2238-GSYML-TR | IC REG BUCK 1.8V/3.3V 0.8A 12MLF | |
| MIC2238-J4YML-TR | IC REG BUCK 1.2V/2.5V 0.8A 12MLF | |
| MIC2238-SSYML-TR | IC REG BUCK 3.3V 800MA DL 12MLF | |
| MIC4722YML-TR | IC REG BUCK ADJUSTABLE 3A 12MLF | |
| MIC2208YML-TR | IC REG BUCK ADJUSTABLE 3A 12MLF | |
| MIC33050-AYHL-T5 | IC REG BUCK ADJ 600MA 12MLF |
Product Description
Product Details
General Description
The MIC33153 is a high-efficiency 4MHz 1.2A synchronous buck regulator with an internal inductor, HyperLight Load™ mode, Power Good (PG) output indicator, and programmable soft start. HyperLight Load™ provides very high efficiency at light loads and ultra-fast transient response which makes the MIC33153 perfectly suited for supplying processor core voltages. An additional benefit of this proprietary architecture is very low output ripple voltage throughout the entire load range with the use of small output capacitors.
Features
• Internal inductor− Simplifies design to two external capacitors
• Input voltage: 2.7V to 5.5V
• Output voltage: fixed or adjustable (0.62V to 3.6V)
• Up to 1.2 A output current
• Up to 93% peak efficiency
• 85% typical efficiency at 1mA
• Power Good (PG) output
• Programmable soft start
• 22µA typical quiescent current
• 4MHz PWM operation in continuous mode
• Ultra-fast transient response
• Low ripple output voltage
− 35mVpp ripple in HyperLight Load™ mode
− 7mV output voltage ripple in full PWM mode
• 0.01µA shutdown current
• Thermal shutdown and current limit protection
• 14-pin 3.0 x 3.5 x 1.1mm MLF® package
• –40°C to +125°C junction temperature range
Applications
• Solid State Drives (SSD)• Mobile handsets
• Portable media/MP3 players
• Portable navigation devices (GPS)
• WiFi/WiMax/WiBro modules
• Wireless LAN cards
• Portable applications
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Microchip Technology |
| Product Category | DC Switching Regulators |
| Series | HyperLight LoadR |
| Type | Synchronous Buck Regulator |
| Packaging | Alternate Packaging |
| Mounting-Style | SMD/SMT |
| Package-Case | 12-VFDFN Exposed Pad, 12-MLFR |
| Operating-Temperature | -40°C ~ 125°C (TJ) |
| Mounting-Type | Surface Mount |
| Output-Type | Fixed |
| Function | Step-Down |
| Supplier-Device-Package | 12-MLF? (3x3) |
| Number-of-Outputs | 1 Output |
| Topology | Buck |
| Frequency-Switching | 4MHz |
| Current-Output | 600mA |
| Output-Configuration | Positive |
| Output Voltage | 1.8V |
| Voltage-Output-Max | - |
| Synchronous-Rectifier | Yes |
| Voltage-Input-Min | 2.7V |
| Voltage-Input-Max | 5.5V |
| Maximum Operating Temperature | + 125 C |
| Operating temperature range | - 40 C |
| Output-Voltage | 1.8 V |
| Operating-Supply-Current | 20 uA |
| Input-Voltage | 2.7 V to 5.5 V |
| Input-Voltage-MAX | 5.5 V |
| Output-Current | 600 mA |
| Switching-Frequency | 4 MHz |
| Input-Voltage-MIN | 2.7 V |
| Load-Regulation | 0.3 % |
| Part-#-Aliases | MIC33050-GYHL TR |
| Supply-Voltage-Min | 2.7 V |
| Package-Case | MLF-12 |
Descriptions
Buck Switching Regulator IC Positive Fixed 1.8V 1 Output 600mA 12-VFDFN Exposed Pad, 12-MLF?
Conv DC-DC 2.7V to 5.5V Step Down Single-Out 1.8V 0.6A 12-Pin HDFN EP T/R
Voltage Regulators - Switching Regulators
