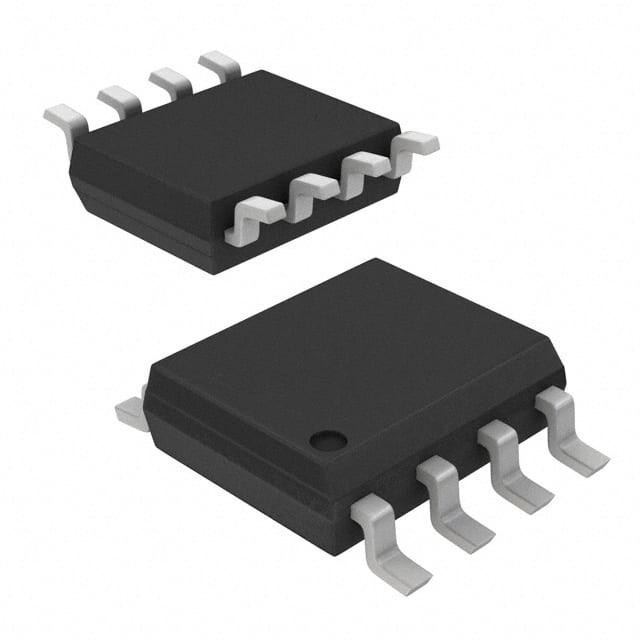

ICL7660CBAZ-T IC REG CHARG PUMP INV 45MA 8SOIC Renesas Electronics America Inc
| Brand Name | Renesas Electronics America Inc |
|---|---|
| Model Number | ICL7660CBAZ-T |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Function | Ratiometric | Output Configuration | Positive Or Negative |
|---|---|---|---|
| Topology | Charge Pump | Output Type | Fixed |
| Number Of Outputs | 1 | Voltage - Input (Min) | 1.5V |
| Voltage - Input (Max) | 10V | Voltage - Output (Min/Fixed) | -Vin, 2Vin |
| Voltage - Output (Max) | - | Current - Output | 45mA |
| Frequency - Switching | 10kHz | Synchronous Rectifier | No |
| Operating Temperature | 0°C ~ 70°C (TA) | Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) | Supplier Device Package | 8-SOIC |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| ICL7660CBAZ-T | IC REG CHARG PUMP INV 45MA 8SOIC | |
| ICL7660ACBAZA-T | IC REG CHARG PUMP INV 45MA 8SOIC | |
| ICL7660CBAZ | IC REG CHARG PUMP INV 45MA 8SOIC | |
| ICL7660SIBAZT | IC REG CHARG PUMP INV 45MA 8SOIC | |
| ICL7660CBAZA-T | IC REG CHARG PUMP INV 45MA 8SOIC | |
| ICL7660ACBAZA | IC REG CHARG PUMP INV 45MA 8SOIC | |
| ICL7660SIBAZ | IC REG CHARG PUMP INV 45MA 8SOIC | |
| ICL7660CBAZA | IC REG CHARG PUMP INV 45MA 8SOIC | |
| ICL7660SCBAZ | IC REG CHARG PUMP INV 45MA 8SOIC | |
| ICL7660AIBAZA | IC REG CHARG PUMP INV 45MA 8SOIC | |
| ICL7660AIBAZA-T | IC REG CHARG PUMP INV 45MA 8SOIC | |
| ICL7660SCBAZ-T | IC REG CHARG PUMP INV 45MA 8SOIC | |
| ICL7660CBA | IC REG CHARG PUMP INV 45MA 8SOIC | |
| ICL7660SCBA | IC REG CHARG PUMP INV 45MA 8SOIC | |
| ICL7660SIBA | IC REG CHARG PUMP INV 45MA 8SOIC | |
| ICL7660AIBA | IC REG CHARG PUMP INV 45MA 8SOIC | |
| ICL7660ACBA | IC REG CHARG PUMP INV 45MA 8SOIC | |
| ICL7660ACBA-T | IC REG CHARG PUMP INV 45MA 8SOIC | |
| ICL7660AIBA-T | IC REG CHARG PUMP INV 45MA 8SOIC | |
| ICL7660CBA-T | IC REG CHARG PUMP INV 45MA 8SOIC | |
| ICL7660SCBA-T | IC REG CHARG PUMP INV 45MA 8SOIC | |
| ICL7660SIBAT | IC REG CHARG PUMP INV 45MA 8SOIC | |
| ISL9110SIINZ-T | IC REG BUCK BOOST 20WLCSP | |
| ISL9110SIIAZ-T | IC REG BUCK BOOST 20WLCSP |
Product Description
Product Details
The Intersil ICL7660 and ICL7660A are monolithic CMOS power supply circuits which offer unique performance advantages over previously available devices. The ICL7660 performs supply voltage conversions from positive to negative for an input range of +1.5V to +10.0V resulting in complementary output voltages of -1.5V to -10.0V and the ICL7660A does the same conversions with an input range of +1.5V to +12.0V resulting in complementary output voltages of -1.5V to -12.0V. Only 2 noncritical external capacitors are needed for the charge pump and charge reservoir functions. The ICL7660 and ICL7660A can also be connected to function as voltage doublers and will generate output voltages up to +18.6V with a +10V input.
Features
• Simple Conversion of +5V Logic Supply to±5V Supplies• Simple Voltage Multiplication (VOUT= (-) nVIN)
• Typical Open Circuit Voltage Conversion Efficiency 99.9%
• Typical Power Efficiency 98%
• Wide Operating Voltage Range
- ICL7660 . . . . . . . . . . . . . . . . . . . . . . . . . . 1.5V to 10.0V
- ICL7660A . . . . . . . . . . . . . . . . . . . . . . . . . 1.5V to 12.0V
• ICL7660A 100% Tested at 3V
• Easy to Use - Requires Only2 External Non-Critical Passive Components
• No External Diode Over Full Temp. and Voltage Range
• Pb-Free Plus Anneal Available (RoHS Compliant)
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Renesas |
| Product Category | DC Switching Regulators |
| Series | ICL7660 |
| Type | Charge Pumps |
| Packaging | Alternate Packaging |
| Unit-Weight | 0.019048 oz |
| Mounting-Style | SMD/SMT |
| Package-Case | 8-SOIC (0.154", 3.90mm Width) |
| Operating-Temperature | 0°C ~ 70°C (TA) |
| Mounting-Type | Surface Mount |
| Output-Type | Fixed |
| Function | Ratiometric |
| Supplier-Device-Package | 8-SOIC |
| Number-of-Outputs | 1 Output |
| Topology | Charge Pump |
| Frequency-Switching | 10kHz |
| Current-Output | 45mA |
| Output-Configuration | Positive or Negative |
| Output Voltage | -Vin, 2Vin |
| Voltage-Output-Max | - |
| Synchronous-Rectifier | No |
| Voltage-Input-Min | 1.5V |
| Voltage-Input-Max | 10V |
| Maximum Operating Temperature | + 70 C |
| Operating temperature range | 0 C |
| Output-Voltage | - 1.5 V to - 10 V 18.6 V |
| Output-Current | 45 mA |
| Package-Case | SOIC-8 |
Descriptions
Charge Pump Switching Regulator IC Positive or Negative Fixed -Vin, 2Vin 1 Output 45mA 8-SOIC (0.154", 3.90mm Width)
Charge Pump INV/STPUP/STPDN -1.5V to -10V/18.6V 45mA 8-Pin SOIC N T/R
Voltage Regulators - Switching Regulators CMOS VAGE CNVRTR COM
