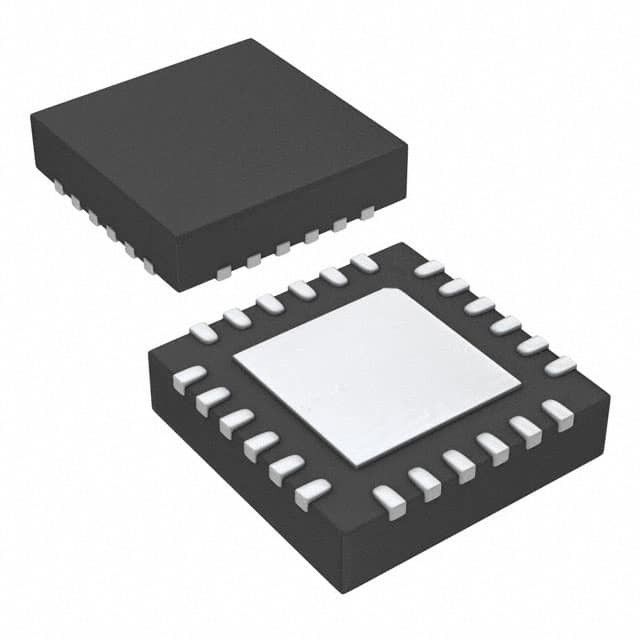

ISL8033IRZ-T7A IC REG BUCK ADJ 3A DL 24QFN Renesas Electronics America Inc
| Brand Name | Renesas Electronics America Inc |
|---|---|
| Model Number | ISL8033IRZ-T7A |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Function | Step-Down | Output Configuration | Positive |
|---|---|---|---|
| Topology | Buck | Output Type | Adjustable |
| Number Of Outputs | 2 | Voltage - Input (Min) | 2.85V |
| Voltage - Input (Max) | 6V | Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | 6V | Current - Output | 3A |
| Frequency - Switching | 1.1MHz | Synchronous Rectifier | Yes |
| Operating Temperature | -55°C ~ 125°C (TJ) | Mounting Type | Surface Mount |
| Package / Case | 24-VFQFN Exposed Pad | Supplier Device Package | 24-QFN (4x4) |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| ISL8033IRZ-T7A | IC REG BUCK ADJ 3A DL 24QFN | |
| NN30195A-VB | IC REG BUCK ADJUSTABLE 6A 24QFN | |
| NN30295A-VB | IC REG BUCK ADJUSTABLE 6A 24QFN | |
| ISL8033AIRZ | IC REG BUCK ADJ 3A DL 24QFN | |
| XC9519A12AZR-G | IC REG BUCK BST ADJ 2A DL 24QFN | |
| ISL8033AIRZ-T | IC REG BUCK ADJ 3A DL 24QFN | |
| ISL8033IRZ-T | IC REG BUCK ADJ 3A DL 24QFN | |
| ISL8036IRZ-T | IC REG BUCK ADJ 3A SGL/DL 24QFN | |
| ISL8036AIRZ-T | IC REG BUCK ADJ 3A SGL/DL 24QFN | |
| ISL78236ARZ | IC REG BUCK ADJ 3A DL 24QFN | |
| ISL78236ARZ-T | IC REG BUCK ADJ 3A DL 24QFN | |
| ISL8502IRZ-T | IC REG BUCK ADJUSTABLE 2A 24QFN | |
| ISL8502IRZ | IC REG BUCK ADJUSTABLE 2A 24QFN | |
| ISL8502AIRZ-T | IC REG BUCK ADJUSTABLE 2A 24QFN | |
| NN30310AAVB | IC REG BUCK ADJUSTABLE 3A 24QFN | |
| MB39C015QN-G-EFE1 | IC REG BUCK ADJ 800MA DL 24QFN | |
| XC9266B06CZR-G | IC REG BUCK ADJUSTABLE 6A 24QFN | |
| XC9266B06DZR-G | IC REG BUCK ADJUSTABLE 6A 24QFN | |
| MB39C007WQN-G-JN-ERE1 | IC REG BUCK ADJ 800MA DL 24QFN | |
| MB39C015WQN-G-JN-ERE1 | IC REG BUCK ADJ 800MA DL 24QFN | |
| NCP1594AMNTXG | IC REG BUCK ADJUSTABLE 4A 24WQFN | |
| ER2120QI | IC REG BUCK ADJUSTABLE 2A 24QFN |
Product Description
Product Details
ISL8033 is a dual integrated power controller rated for 3A per channel with a 1MHz step-down regulator that is ideal for any low power low-voltage applications. The ISL8033A offers 2.5MHz operation for smaller more compacted design. The channels are 180° out-of-phase for input RMS current and EMI reduction. It is optimized for generating low output voltages down to 0.8V each. The supply voltage range is from 2.85V to 6V, allowing for the use of a single Li+ cell, three NiMH cells or a regulated 5V input. It has a guaranteed minimum output current of 3A each when ISET is connected to VDD. The output current of each output is
selectable by setting ISET pin.
Features
• Dual 3A High Efficiency Synchronous Buck Regulator with up to 95% Efficiency• 2% Output Accuracy Over-Temperature/Load/Line
• Internal Digital Soft-Start - 1.5ms
• External Synchronization up to 6MHz (ISL8033)
• Internal Current Mode Compensation
• Peak Current Limiting and Hiccup Mode Short Circuit Protection
• Adjustable Peak Overload Current
• Negative Current Protection
• Pb-Free (RoHS Compliant)
Applications
• DC/DC POL Modules• µC/µP, FPGA and DSP Power
• Plug-in DC/DC Modules for Routers and Switchers
• Test and Measurement Systems
• Li-ion Battery Power Devices
• Bar Code Readers
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Renesas |
| Product Category | DC Switching Regulators |
| Series | - |
| Packaging | Alternate Packaging |
| Package-Case | 24-VFQFN Exposed Pad |
| Operating-Temperature | -55°C ~ 125°C (TJ) |
| Mounting-Type | Surface Mount |
| Output-Type | Adjustable |
| Function | Step-Down |
| Supplier-Device-Package | 24-QFN (4x4) |
| Number-of-Outputs | 2 Outputs |
| Topology | Buck |
| Frequency-Switching | 1.1MHz |
| Current-Output | 3A |
| Output-Configuration | Positive |
| Output Voltage | 0.8V |
| Voltage-Output-Max | 6V |
| Synchronous-Rectifier | Yes |
| Voltage-Input-Min | 2.85V |
| Voltage-Input-Max | 6V |
Descriptions
Buck Switching Regulator IC Positive Adjustable 0.8V 2 Output 3A 24-VFQFN Exposed Pad
Conv DC-DC 2.85V to 6V Step Down Single-Out 0.8V to 6V 3A 24-Pin QFN EP T/R
Voltage Regulators - Switching Regulators Dual 1MHz, 3A Per Ch annel NCurrent Shari
