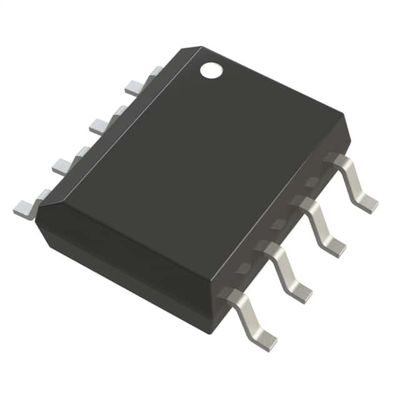

AZ34063UMTR-G1 IC REG BUCK BST ADJ 1.5A 8SOIC Diodes Incorporated
| Brand Name | Diodes Incorporated |
|---|---|
| Model Number | AZ34063UMTR-G1 |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Function | Step-Up, Step-Down | Output Configuration | Positive Or Negative |
|---|---|---|---|
| Topology | Buck, Boost | Output Type | Adjustable |
| Number Of Outputs | 1 | Voltage - Input (Min) | 3V |
| Voltage - Input (Max) | 36V | Voltage - Output (Min/Fixed) | 1.25V |
| Voltage - Output (Max) | 36V | Current - Output | 1.5A (Switch) |
| Frequency - Switching | Up To 180kHz | Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 85°C (TA) | Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) | Supplier Device Package | 8-SOIC |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| AZ34063UMTR-G1 | IC REG BUCK BST ADJ 1.5A 8SOIC | |
| AP3431MTR-G1 | IC REG BUCK ADJ 2A SYNC 8SOIC | |
| AP3435MPTR-G1 | IC REG BUCK ADJ 3.5A SYNC 8SOIC | |
| AP3202MTR-G1 | IC REG BUCK ADJUSTABLE 2A 8SOIC | |
| AP3502FMTR-G1 | IC REG BUCK ADJUSTABLE 2A 8SOIC | |
| AP3502HMTR-G1 | IC REG BUCK ADJUSTABLE 2A 8SOIC | |
| AP3502MPTR-G1 | IC REG BUCK ADJUSTABLE 2A 8SOIC | |
| AZ34063AMTR-E1 | IC REG BUCK BST ADJ 1.5A 8SOIC | |
| AZ34063AMTR-G1 | IC REG BUCK BST ADJ 1.5A 8SOIC | |
| AZ34063CMTR-G1 | IC REG BUCK BST ADJ 1A 8SOIC | |
| AP3502UHMTR-G1 | IC REG BUCK | |
| AP1515-33SG-13 | IC REG BUCK 8SOP | |
| AP1515-SG-13 | IC REG BUCK 8SOP | |
| AP1530SDPG-13 | IC REG BUCK CONVERTER 8SOP | |
| AP1534ASG-13 | IC REG PWM CONVERTER 8SO | |
| AP1537SG-13 | IC REG PWM CONVERTER 8SOP | |
| AZ34063DMTR-G1 | IC REG BUCK BST ADJ 1A 8SOIC | |
| AP3502EMTR-G1 | IC REG BUCK ADJUSTABLE 2A 8SOIC | |
| AP3502MTR-G1 | IC REG BUCK ADJUSTABLE 2A 8SOIC | |
| AP3512EMTR-G1 | IC REG BUCK ADJUSTABLE 2A 8SOIC | |
| AP3502UFMTR-G1 | IC REG DC-DC BUCK 8SOIC |
Product Description
Product Details
General Description
The AZ34063 is a monolithic switching regulator control circuit containing the primary functionsrequired for DC-DC converters. This device consists of internal temperature compensated reference, voltage comparator, controlled duty cycle oscillator with active current limit circuit, driver and high current output switch. This device is specifically designed to be used in Step-Down, Step-Up and Voltage-Inverting applications with a minimum number of external com
ponents.
The AZ34063 is available in 2 packages: SOIC-8 and DIP-8.
Features
• Operation from 3.0V to 36V Input• Low Standby Current
• Current Limiting
• Output Switch Current to 0.8A
• Output Voltage Adjustable
• Operation Frequency up to 65KHz (CT=330
• Precision 2% Reference
Applications
Battery Chargers
NICs/ Switches/ Hubs
ADSL Modems
Negative Voltage Power Supplies
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Diodes Incorporated |
| Product Category | DC Switching Regulators |
| Series | AZ34063 |
| Type | DC/DC Converters |
| Packaging | Alternate Packaging |
| Unit-Weight | 0.002610 oz |
| Mounting-Style | SMD/SMT |
| Package-Case | 8-SOIC (0.154", 3.90mm Width) |
| Operating-Temperature | -40°C ~ 85°C (TA) |
| Mounting-Type | Surface Mount |
| Output-Type | Adjustable |
| Function | Step-Up, Step-Down |
| Supplier-Device-Package | 8-SOIC |
| Number-of-Outputs | 1 Output |
| Topology | Buck, Boost |
| Frequency-Switching | Up to 180kHz |
| Current-Output | 1.5A (Switch) |
| Output-Configuration | Positive or Negative |
| Output Voltage | 1.25V |
| Voltage-Output-Max | 36V |
| Synchronous-Rectifier | No |
| Voltage-Input-Min | 3V |
| Voltage-Input-Max | 36V |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Output-Voltage | 1.25 V to 36 V |
| Operating-Supply-Current | 4 mA |
| Input-Voltage-MAX | 36 V |
| Output-Current | 1.5 A |
| Switching-Frequency | 180 kHz |
| Input-Voltage-MIN | 3 V |
| Supply-Voltage-Min | 3 V |
| Package-Case | SOIC-8 |
Functional compatible component
Form,Package,Functional compatible component
| Manufacturer Part# | Description | Manufacturer | Compare |
| MC33063AVDG Power Circuits |
Buck / Boost / Inverting Regulator, Switching, 1.5 A TA= -40°C to 125°C, SOIC-8 Narrow Body, 98-TUBE | ON Semiconductor | AZ34063UMTR-G1 vs MC33063AVDG |
| AZ34063UP-G1 Power Circuits |
Switching Regulator, Voltage-mode, 1.5A, 45kHz Switching Freq-Max, PDIP8, GREEN, DIP-8 | Diodes Incorporated | AZ34063UMTR-G1 vs AZ34063UP-G1 |
| MC33063AQDRQ1 Power Circuits |
Automotive Catalog 1.5-A Peak Boost/Buck/Inverting Switching Regulator 8-SOIC -40 to 125 | Texas Instruments | AZ34063UMTR-G1 vs MC33063AQDRQ1 |
| MC33063AVDR2 Power Circuits |
1.5A SWITCHING REGULATOR, 100kHz SWITCHING FREQ-MAX, PDSO8, SOIC-8 | Rochester Electronics LLC | AZ34063UMTR-G1 vs MC33063AVDR2 |
| MC33063AVD Power Circuits |
1.5A SWITCHING REGULATOR, 100kHz SWITCHING FREQ-MAX, PDSO8, SOIC-8 | Rochester Electronics LLC | AZ34063UMTR-G1 vs MC33063AVD |
| AZ34063UM-G1 Power Circuits |
Switching Regulator, Voltage-mode, 1.5A, 45kHz Switching Freq-Max, PDSO8, GREEN, SOIC-8 | Diodes Incorporated | AZ34063UMTR-G1 vs AZ34063UM-G1 |
| MC33063AVDR2G Power Circuits |
Buck / Boost / Inverting Regulator, Switching, 1.5 A TA= -40°C to 125°C, SOIC-8 Narrow Body, 2500-REEL | ON Semiconductor | AZ34063UMTR-G1 vs MC33063AVDR2G |
Descriptions
Buck, Boost Switching Regulator IC Positive or Negative Adjustable 1.25V 1 Output 1.5A (Switch) 8-SOIC (0.154", 3.90mm Width)
Conv DC-DC 3V to 36V Inv/Step Up/Step Down Single-Out 8-Pin SOIC T/R
Voltage Regulators - Switching Regulators 1.5A Step-Down/Up 3.0V to 36V 180kHz
