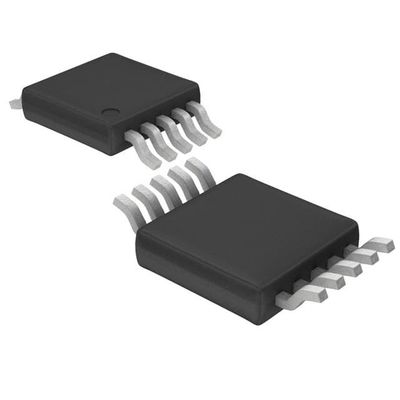

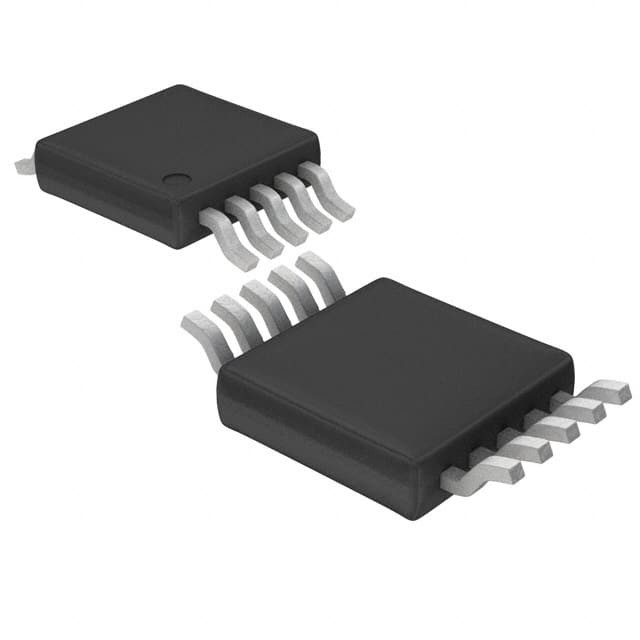

MP2108DK-LF-P IC REG BUCK ADJUSTABLE 2A 10MSOP Monolithic Power Systems Inc.
| Brand Name | Monolithic Power Systems Inc. |
|---|---|
| Model Number | MP2108DK-LF-P |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Function | Step-Down | Output Configuration | Positive |
|---|---|---|---|
| Topology | Buck | Output Type | Adjustable |
| Number Of Outputs | 1 | Voltage - Input (Min) | 2.6V |
| Voltage - Input (Max) | 6V | Voltage - Output (Min/Fixed) | 0.9V |
| Voltage - Output (Max) | 5V | Current - Output | 2A |
| Frequency - Switching | 740kHz | Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) | Mounting Type | Surface Mount |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Supplier Device Package | 10-MSOP |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| MP2108DK-LF-P | IC REG BUCK ADJUSTABLE 2A 10MSOP | |
| MP2106DK-LF-Z | IC REG BUCK ADJ 800MA 10MSOP | |
| MP1567DK-LF-Z | IC REG BUCK ADJ 1.2A 10MSOP | |
| MP2361DK-LF-Z | IC REG BUCK ADJUSTABLE 2A 10MSOP | |
| MP2108DK-LF-Z | IC REG BUCK ADJUSTABLE 2A 10MSOP | |
| MP2106DK-LF-P | IC REG BUCK ADJ 800MA 10MSOP | |
| MP1567DK-LF-P | IC REG BUCK ADJ 1.2A 10MSOP | |
| MP2102DK-LF-Z | IC REG BUCK ADJ 800MA DL 10MSOP | |
| MP2361DK-LF-P | IC REG BUCK ADJUSTABLE 2A 10MSOP | |
| MP2102DK-LF-P | IC REG BUCK ADJ 800MA DL 10MSOP | |
| MP2351DK-LF-P | IC REG BUCK ADJ 1.5A 10MSOP | |
| MP2351DK-LF-Z | IC REG BUCK ADJ 1.5A 10MSOP | |
| MP2905EK-LF-Z | IC REG BUCK ADJUSTABLE 10MSOP | |
| MP2905EK-LF-P | IC REG BUCK ADJUSTABLE 10MSOP | |
| MP1567DK-LF | SWITCHING VOLTAGE REGULATORS | |
| MP2106DK-LF | IC REG BUCK ADJ 800MA 10MSOP | |
| MP2905EK-LF | IC REG BUCK ADJUSTABLE | |
| MP2102DK-LF | IC REG BUCK ADJ 0.8A DL SYNC 10M | |
| MP2108DK-LF | IC REG BUCK ADJ 2A SYNC 10MSOP | |
| MP2361DK-LF | IC REG BUCK ADJ 2A 10MSOP |
Product Description
Product Details
DESCRIPTION
The MP2108 is a 2A, 740KHz synchronous buck converter designed for low voltage applications requiring high efficiency. It is capable of providing output voltages as low as 0.9V, and integrates top and bottom switches to minimize power loss and component count. The 740KHz switching frequency allows for small filtering components, further reducing the solution size.
FEATURES
• 2A Output Current• Synchronous Rectification
• Internal 160mΩ and 190mΩ Power Switches
• Input Range of 2.6V to 6V
• Over 95% Efficiency
• Under Voltage Lockout Protection
• Soft-Start Operation
• Thermal Shutdown
• Internal Current Limit (Source & Sink)
• Tiny 10-Pin MSOP and 3x3 QFN Packages
APPLICATIONS
• SOHO Routers, PCMCIA Cards, Mini PCI• Handheld Computers, PDAs
• Cell phones, Digital Still and Video Cameras
• Small LCD Displays
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Monolithic Power Systems |
| Product Category | DC Switching Regulators |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Package-Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Operating-Temperature | -40°C ~ 85°C (TA) |
| Mounting-Type | Surface Mount |
| Output-Type | Adjustable |
| Function | Step-Down |
| Supplier-Device-Package | 10-MSOP |
| Number-of-Outputs | 1 Output |
| Topology | Buck |
| Frequency-Switching | 740kHz |
| Current-Output | 2A |
| Output-Configuration | Positive |
| Output Voltage | 0.9V |
| Voltage-Output-Max | 5V |
| Synchronous-Rectifier | Yes |
| Voltage-Input-Min | 2.6V |
| Voltage-Input-Max | 6V |
Descriptions
Buck Switching Regulator IC Positive Adjustable 0.9V 1 Output 2A 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Voltage Regulators - Switching Regulators 2A, 6V, 720kHz Synch Buck Converter
