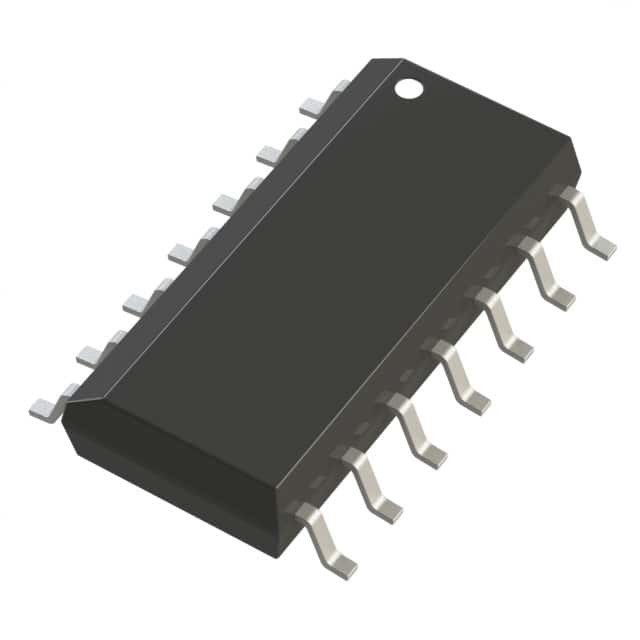

AD8534ARZ-REEL IC OPAMP GP 4 CIRCUIT 14SOIC Analog Devices Inc.
| Brand Name | Analog Devices Inc. |
|---|---|
| Model Number | AD8534ARZ-REEL |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Amplifier Type | General Purpose | Number Of Circuits | 4 |
|---|---|---|---|
| Output Type | Rail-to-Rail | Slew Rate | 5V/µs |
| Gain Bandwidth Product | 3 MHz | -3db Bandwidth | - |
| Current - Input Bias | 5 PA | Voltage - Input Offset | 25 MV |
| Current - Supply | 750µA (x4 Channels) | Current - Output / Channel | 250 MA |
| Voltage - Supply Span (Min) | 2.7 V | Voltage - Supply Span (Max) | 6 V |
| Operating Temperature | -40°C ~ 85°C | Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) | Supplier Device Package | 14-SOIC |
