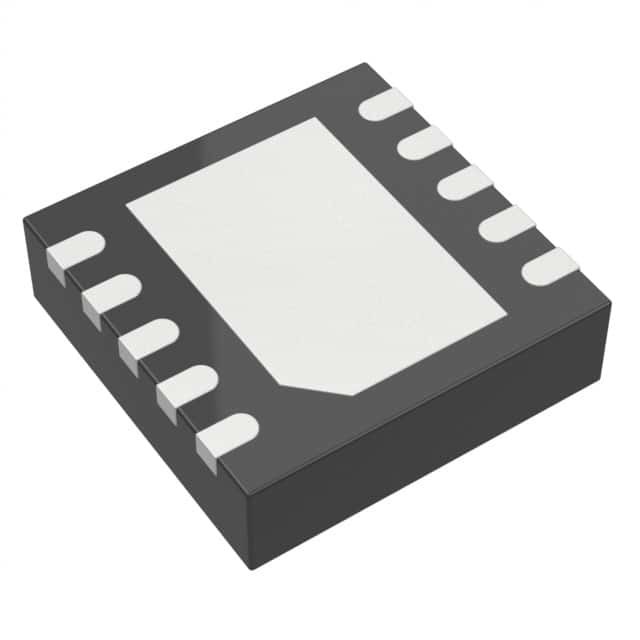

LTC6084CDD#PBF IC CMOS 2 CIRCUIT 10DFN Analog Devices Inc.



DESCRIPTION

The LTC®6084/LTC6085 are dual/quad, low cost, low offset, rail-to-rail input/output, unity-gain stable CMOS operational amplifi ers that feature 1pA of input bias current.
A 1.5MHz gain bandwidth, and 0.5V/μs slew rate, along with the wide supply range and a low 0.75mV offset, make the LTC6084/LTC6085 useful in an extensive variety of applications from data acquisition to medical equipment and consumer electronics. The 110μA supply current and the shutdown mode are ideal for signal processing applications which demand performance with minimal power.





FEATURES

■ Low Offset Voltage: 750μV Maximum
■ Low Offset Drift: 5μV/°C Maximum
■ Low Input Bias Current:
1pA (Typical at 25°C)
40pA (≤85°C)
■ Rail-to-Rail Inputs and Outputs
■ 2.5V to 5.5V Operation Voltage
■ Gain Bandwidth Product: 1.5MHz
■ CMRR: 70dB Minimum
■ PSRR: 94dB Minimum
■ Supply Current: 110μA per Amplifi er
■ Shutdown Current: 1.1μA per Amplifi er
■ Available in 8-Lead MSOP and 10-Lead DFN
Packages (LTC6084) and 16-Lead SSOP and DFN
Packages (LTC6085)





APPLICATIONS

■ Portable Test Equipment
■ Medical Equipment
■ Consumer Electronics
■ Data Acquisition
