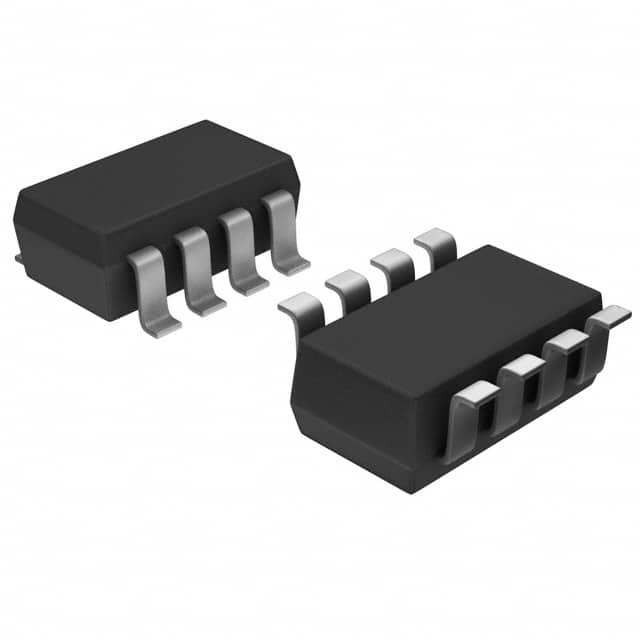

MAX4232AKA+T IC CMOS 2 CIRCUIT SOT23-8 Analog Devices Inc./Maxim Integrated
| Brand Name | Analog Devices Inc./Maxim Integrated |
|---|---|
| Model Number | MAX4232AKA+T |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Amplifier Type | CMOS | Number Of Circuits | 2 |
|---|---|---|---|
| Output Type | Rail-to-Rail | Slew Rate | 10V/µs |
| Gain Bandwidth Product | 10 MHz | -3db Bandwidth | - |
| Current - Input Bias | 1 PA | Voltage - Input Offset | 850 µV |
| Current - Supply | 1.2mA (x2 Channels) | Current - Output / Channel | 200 MA |
| Voltage - Supply Span (Min) | 2.7 V | Voltage - Supply Span (Max) | 5.5 V |
| Operating Temperature | -40°C ~ 125°C | Mounting Type | Surface Mount |
| Package / Case | SOT-23-8 | Supplier Device Package | SOT-23-8 |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| MAX4232AKA+T | IC CMOS 2 CIRCUIT SOT23-8 | |
| MAX9916EKA+T | IC OPAMP GP 2 CIRCUIT SOT23-8 | |
| MAX44251AKA+T | IC OPAMP ZER-DRIFT 2CIRC SOT23-8 | |
| MAX4491AKA+T | IC OPAMP GP 2 CIRCUIT SOT23-8 | |
| MAX4413EKA+T | IC OPAMP VFB 2 CIRCUIT SOT23-8 | |
| MAX4494AKA+T | IC OPAMP GP 2 CIRCUIT SOT23-8 | |
| MAX4402AKA+T | IC OPAMP GP 2 CIRCUIT SOT23-8 | |
| MAX4471EKA+T | IC OPAMP GP 2 CIRCUIT SOT23-8 | |
| MAX4246AKA+T | IC OPAMP GP 2 CIRCUIT SOT23-8 | |
| MAX4351EKA+T | IC OPAMP VFB 2 CIRCUIT SOT23-8 | |
| MAX9912EKA+T | IC OPAMP GP 2 CIRCUIT SOT23-8 | |
| MAX4337EKA+T | IC OPAMP GP 2 CIRCUIT SOT23-8 | |
| MAX4482AKA+T | IC OPAMP GP 2 CIRCUIT SOT23-8 | |
| MAX4474EKA+T | IC OPAMP GP 2 CIRCUIT SOT23-8 | |
| MAX4451EKA+T | IC OPAMP VFB 2 CIRCUIT SOT23-8 | |
| MAX4453EKA+T | IC OPAMP GP 2 CIRCUIT SOT23-8 | |
| MAX44242AKA+T | IC OPAMP GP 2 CIRCUIT SOT23-8 | |
| MAX4402AKA/V+T | IC OPAMP GP 2 CIRCUIT SOT23-8 | |
| MAX4353EKA-T | IC OPAMP GP 2 CIRCUIT SOT23-8 | |
| MAX4402AKA-T | IC OPAMP GP 2 CIRCUIT SOT23-8 | |
| MAX4413EKA-T | IC OPAMP VFB 2 CIRCUIT SOT23-8 | |
| MAX4451EKA-T | IC OPAMP VFB 2 CIRCUIT SOT23-8 | |
| MAX4453EKA-T | IC OPAMP GP 2 CIRCUIT SOT23-8 | |
| MAX4486AKA-T | IC OPAMP GP 2 CIRCUIT SOT23-8 | |
| LMX358AKA+T | IC OPAMP GP 2 CIRCUIT SOT23-8 | |
| MAX4494AKA/V+T | IC OPAMP GP 2 CIRCUIT SOT23-8 | |
| MAX9624AKA+T | IC OPAMP GP 2 CIRCUIT SOT23-8 | |
| MAX9625AKA+T | IC OPAMP GP 2 CIRCUIT SOT23-8 | |
| LMX358AKA-T | IC OPAMP GP 2 CIRCUIT SOT23-8 | |
| MAX4232AKA-T | IC CMOS 2 CIRCUIT SOT23-8 | |
| MAX4246AKA-T | IC OPAMP GP 2 CIRCUIT SOT23-8 | |
| MAX4337EKA-T | IC OPAMP GP 2 CIRCUIT SOT23-8 | |
| MAX44271AKA+T | IC OPAMP GP 2 CIRCUIT SOT23-8 | |
| MAX4474EKA-T | IC OPAMP GP 2 CIRCUIT SOT23-8 | |
| MAX4482AKA-T | IC OPAMP GP 2 CIRCUIT SOT23-8 | |
| MAX4491AKA-T | IC OPAMP GP 2 CIRCUIT SOT23-8 | |
| MAX4494AKA-T | IC OPAMP GP 2 CIRCUIT SOT23-8 | |
| MAX4494AKA+G0N | IC OPAMP GP 2 CIRCUIT SOT23-8 | |
| MAX9916EKA+TCGJ | IC OPAMP GP 2 CIRCUIT SOT23-8 | |
| MAX4232AKA+TG002 | IC CMOS 2 CIRCUIT SOT23-8 | |
| MAX4232AKA+TGC1 | IC CMOS 2 CIRCUIT SOT23-8 | |
| MAX4337EKA+G05 | IC OPAMP GP 2 CIRCUIT SOT23-8 | |
| MAX9916EKA+CGJ | IC OPAMP GP 2 CIRCUIT SOT23-8 | |
| MAX4486AKA+ | IC OPAMP GP 2 CIRCUIT SOT23-8 | |
| MAX4353EKA+T | IC OPAMP VFB 2 CIRCUIT SOT23-8 | |
| MAX4486AKA+T | IC OPAMP GP 2 CIRCUIT SOT23-8 | |
| MAX4451EKA+G069 | IC OPAMP VFB 2 CIRCUIT SOT23-8 | |
| MAX4232AKA+G05 | IC CMOS 2 CIRCUIT SOT23-8 | |
| MAX4232AKA+G002 | IC CMOS 2 CIRCUIT SOT23-8 | |
| MAX4491AKA+G29 | IC OPAMP GP 2 CIRCUIT SOT23-8 | |
| MAX4232AKA+GC1 | IC CMOS 2 CIRCUIT SOT23-8 | |
| MAX4232AKA/V+T | IC CMOS 2 CIRCUIT SOT23-8 | |
| MAX4232AKA+TG069 | IC CMOS 2 CIRCUIT SOT23-8 | |
| MAX4353EKA+ | IC OPAMP GP 2 CIRCUIT SOT23-8 |
Product Description
Product Details
General Description
The MAX4230–MAX4234 single/dual/quad, high-output drive CMOS op amps feature 200mA of peak output current, rail-to-rail input, and output capability from a single 2.7V to 5.5V supply. These amplifiers exhibit a high slew rate of 10V/µs and a gain-bandwidth product (GBWP) of 10MHz. The MAX4230–MAX4234 can drive typical headset levels (32Ω), as well as bias an RF power amplifier (PA) in wireless handset applications.
Features
♦200mA Output Drive Capability♦Rail-to-Rail Input and Output
♦1.1mA Supply Current per Amplifier
♦2.7V to 5.5V Single-Supply Operation
♦10MHz Gain-Bandwidth Product
♦High Slew Rate: 10V/µs
♦100dB Voltage Gain (RL= 100kΩ)
♦85dB Power-Supply Rejection Ratio
♦No Phase Reversal for Overdriven Inputs
♦Unity-Gain Stable for Capacitive Loads to 780pF
♦Low-Power Shutdown Mode Reduces Supply Current to < 1µA
♦Available in 5-Pin SC70 Package (MAX4230) and 6-Pin, UCSP and Thin µDFN Packages (MAX4231)
♦Available in 10-Bump UCSP Package (MAX4233)
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Maxim Integrated |
| Product Category | IC Chips |
| Series | MAX4232 |
| Product | Operational Amplifiers |
| Packaging | Reel |
| Mounting-Style | SMD/SMT |
| Technology | CMOS |
| Number-of-Channels | 2 Channel |
| Amplifier-Type | Wideband Amplifier |
| Shutdown | No Shutdown |
| Maximum Operating Temperature | + 125 C |
| Operating temperature range | - 40 C |
| Operating-Supply-Current | 1.1 mA |
| Part-#-Aliases | MAX4232 |
| Supply-Voltage-Max | 5.5 V |
| Supply-Voltage-Min | 2.7 V |
| Package-Case | SOT-23-8 |
| Ib-Input-Bias-Current | 1 pA |
| Vos-Input-Offset-Voltage | 6 mV |
| PSRR-Power-Supply-Rejection-Ratio | 73 dB |
| Vcm-Common-Mode-Voltage | 2.7 V to 5.5 V |
| Output-Current-per-Channel | 200 mA |
| CMRR-Common-Mode-Rejection-Ratio | 52 dB |
| GBP-Gain-Bandwidth-Product | 10 MHz |
| SR-Slew-Rate | 10 V/us |
| en-Input-Voltage-Noise-Density | 15 nV/sqrt Hz at 2.7 V |
| Maximum-Dual-Supply-Voltage | +/- 2.5 V |
| Minimum-Dual-Supply-Voltage | +/- 1.35 V |
Functional compatible component
Form,Package,Functional compatible component
| Manufacturer Part# | Description | Manufacturer | Compare |
| MAX4232AUA+T Amplifier Circuits |
Operational Amplifier, 2 Func, 8000uV Offset-Max, BICMOS, PDSO8, PACKAGE-8 | Maxim Integrated Products | MAX4232AKA+T vs MAX4232AUA+T |
| MAX4232AUA-T Amplifier Circuits |
Operational Amplifier, 2 Func, 8000uV Offset-Max, CMOS, PDSO8, MICRO, MO-187C-AA, SOP-8 | Maxim Integrated Products | MAX4232AKA+T vs MAX4232AUA-T |
| MAX4232AUA+ Amplifier Circuits |
Operational Amplifier, 2 Func, 8000uV Offset-Max, CMOS, PDSO8, MICRO, SOP-8 | Maxim Integrated Products | MAX4232AKA+T vs MAX4232AUA+ |
| MAX4232AUA Amplifier Circuits |
Operational Amplifier, 2 Func, 8000uV Offset-Max, CMOS, PDSO8, MICRO, MO-187C-AA, SOP-8 | Maxim Integrated Products | MAX4232AKA+T vs MAX4232AUA |
| MAX4232AKA-T Amplifier Circuits |
Operational Amplifier, 2 Func, 8000uV Offset-Max, CMOS, PDSO8, MO-178, SOT-23, 8 PIN | Maxim Integrated Products | MAX4232AKA+T vs MAX4232AKA-T |
Descriptions
General Purpose Amplifier 2 Circuit Rail-to-Rail SOT-23-8
Operational Amplifiers - Op Amps 10MHz 10V/us Rail-Rail I/O
