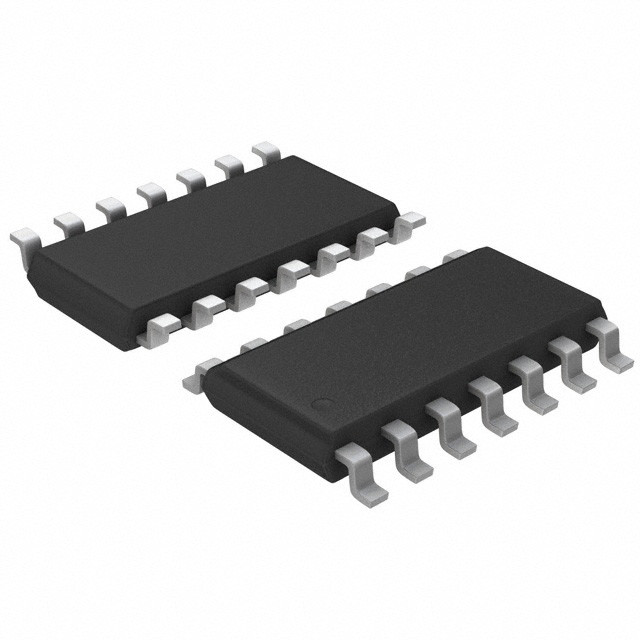

LM2902NSR IC OPAMP GP 4 CIRCUIT 14SO Texas Instruments
| Brand Name | Texas Instruments |
|---|---|
| Model Number | LM2902NSR |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Amplifier Type | General Purpose | Number Of Circuits | 4 |
|---|---|---|---|
| Output Type | - | Slew Rate | 0.5V/µs |
| Gain Bandwidth Product | 1.2 MHz | -3db Bandwidth | - |
| Current - Input Bias | 20 NA | Voltage - Input Offset | 3 MV |
| Current - Supply | 1.4mA (x4 Channels) | Current - Output / Channel | 30 MA |
| Voltage - Supply Span (Min) | 3 V | Voltage - Supply Span (Max) | 26 V |
| Operating Temperature | -40°C ~ 125°C (TA) | Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.209", 5.30mm Width) | Supplier Device Package | 14-SO |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| LM2902NSR | IC OPAMP GP 4 CIRCUIT 14SO | |
| MC3403NSR | IC OPAMP GP 4 CIRCUIT 14SO | |
| LM324KANSR | IC OPAMP GP 4 CIRCUIT 14SO | |
| LM348NSR | IC OPAMP GP 4 CIRCUIT 14SO | |
| LM324KNSR | IC OPAMP GP 4 CIRCUIT 14SO | |
| TL064INSR | IC OPAMP JFET 4 CIRCUIT 14SO | |
| TLC27M4CNS | IC OPAMP GP 4 CIRCUIT 14SO | |
| TLC27L4CNS | IC CMOS 4 CIRCUIT 14SO | |
| TLC274CNS | IC OPAMP GP 4 CIRCUIT 14SO | |
| TLC274BCNS | IC OPAMP GP 4 CIRCUIT 14SO | |
| LM324NSR | IC OPAMP GP 4 CIRCUIT 14SO | |
| TL064CNSR | IC OPAMP JFET 4 CIRCUIT 14SO | |
| TLC27L4CNSR | IC CMOS 4 CIRCUIT 14SO | |
| TLC274CNSR | IC OPAMP GP 4 CIRCUIT 14SO | |
| LM324ANSR | IC OPAMP GP 4 CIRCUIT 14SO | |
| TL084CNSR | IC OPAMP JFET 4 CIRCUIT 14SO | |
| TL074CNSR | IC OPAMP JFET 4 CIRCUIT 14SO | |
| TL064INS | IC OPAMP JFET 4 CIRCUIT 14SO | |
| TLC27M4CNSR | IC OPAMP GP 4 CIRCUIT 14SO | |
| TLC2274CNS | IC OPAMP GP 4 CIRCUIT 14SO | |
| LM2902KNSR | IC OPAMP GP 4 CIRCUIT 14SO | |
| TL074ACNSR | IC OPAMP JFET 4 CIRCUIT 14SO | |
| TL084ACNSR | IC OPAMP JFET 4 CIRCUIT 14SO | |
| TL034CNSR | IC OPAMP JFET 4 CIRCUIT 14SO | |
| TLC2274CNSR | IC OPAMP GP 4 CIRCUIT 14SO | |
| TL054CNSR | IC OPAMP JFET 4 CIRCUIT 14SO | |
| TLC27L9CNSR | IC OPAMP GP 4 CIRCUIT 14SO | |
| LM324NSRE4 | IC OPAMP GP 4 CIRCUIT 14SO | |
| LM324NSRG4 | IC OPAMP GP 4 CIRCUIT 14SO | |
| TL074BCNSR | IC OPAMP JFET 4 CIRCUIT 14SO | |
| TL074BCNSRE4 | IC OPAMP JFET 4 CIRCUIT 14SO | |
| TLC1079CNSR | IC CMOS 4 CIRCUIT 14SO | |
| TLC1079CNSRG4 | IC CMOS 4 CIRCUIT 14SO | |
| TLC2274CNSR-A | IC OPAMP GP 4 CIRCUIT 14SO | |
| LM2902KNS | IC OPAMP GP 4 CIRCUIT 14SO | |
| LM2902KNSE4 | IC OPAMP GP 4 CIRCUIT 14SO | |
| LM2902KNSG4 | IC OPAMP GP 4 CIRCUIT 14SO | |
| LM2902KNSRG4 | IC OPAMP GP 4 CIRCUIT 14SO | |
| LM324ANSRG4 | IC OPAMP GP 4 CIRCUIT 14SO | |
| LM348NSRG4 | IC OPAMP GP 1MHZ 14SO | |
| TL074BCNSRG4 | IC OPAMP JFET 4 CIRCUIT 14SO | |
| TL074CNSRG4 | IC OPAMP JFET 4 CIRCUIT 14SO | |
| TLC1079CNS | IC CMOS 4 CIRCUIT 14SO | |
| TLC2274CNSG4 | IC OPAMP GP 4 CIRCUIT 14SO | |
| TLC2274CNSR-AG4 | IC OPAMP GP 4 CIRCUIT 14SO | |
| TLC279CNS | IC CMOS 4 CIRCUIT 14SO | |
| TLC279CNSG4 | IC CMOS 4 CIRCUIT 14SO | |
| TLC27L4BCNS | IC CMOS 4 CIRCUIT 14SO | |
| TLC27L9CNS | IC OPAMP GP 4 CIRCUIT 14SO | |
| TLC27L9CNSG4 | IC OPAMP GP 4 CIRCUIT 14SO |
Product Description
Product Details
DESCRIPTION
The LM124/SA534/LM2902 series consists of four independent, high-gain, internally frequency-compensated operational amplifiers designed specifically to operate from a single power supply over a wide range of voltages.
FEATURES
• Internally frequency-compensated for unity gain• Large DC voltage gain: 100dB
• Wide bandwidth (unity gain): 1MHz (temperature-compensated)
• Wide power supply range Single supply: 3VDC to 30VDC or dual
supplies: ±1.5VDC to ±15VDC
• Very low supply current drain: essentially independent of supply
voltage (1mW/op amp at +5VDC)
• Low input biasing current: 45nADC (temperature-compensated)
• Low input offset voltage: 2mVDC and offset current: 5nADC
• Differential input voltage range equal to the power supply voltage
• Large output voltage: 0VDC to VCC-1.5VDC swing
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Texas Instruments |
| Product Category | Instrumentation Amplifier |
| Series | LM2902 |
| Product | Operational Amplifiers |
| Packaging | Reel |
| Unit-Weight | 0.007348 oz |
| Mounting-Style | SMD/SMT |
| Technology | Bipolar |
| Number-of-Channels | 4 Channel |
| Amplifier-Type | High Gain Amplifier |
| Shutdown | No Shutdown |
| Maximum Operating Temperature | + 125 C |
| Operating temperature range | - 40 C |
| Operating-Supply-Current | 3 mA |
| Supply-Voltage-Max | 26 V |
| Supply-Voltage-Min | 3 V |
| Package-Case | SOP-14 |
| Ib-Input-Bias-Current | 250 nA |
| Vos-Input-Offset-Voltage | 7 mV |
| Vcm-Common-Mode-Voltage | Negative Rail to Positive Rail - 1.5 V |
| Output-Current-per-Channel | 30 mA |
| CMRR-Common-Mode-Rejection-Ratio | 50 dB |
| GBP-Gain-Bandwidth-Product | 1.2 MHz |
| SR-Slew-Rate | 0.5 V/us |
| en-Input-Voltage-Noise-Density | 35 nV/sqrt Hz |
| Maximum-Dual-Supply-Voltage | +/- 13 V |
| Minimum-Dual-Supply-Voltage | +/- 1.5 V |
Functional compatible component
Form,Package,Functional compatible component
| Manufacturer Part# | Description | Manufacturer | Compare |
| LM2902NE4 Amplifier Circuits |
Quadruple general-purpose operational amplifier ? 14-PDIP -40 to 125 | Texas Instruments | LM2902NSR vs LM2902NE4 |
| LM2902N/NOPB Amplifier Circuits |
Low power standard quad operational amplifier 14-PDIP -40 to 85 | Texas Instruments | LM2902NSR vs LM2902N/NOPB |
Descriptions
General Purpose Amplifier 4 Circuit 14-SOP
Op Amp Quad GP 卤13V/26V 14-Pin SOP T/R
Operational Amplifiers - Op Amps Quad General-Purpose Op Amp
