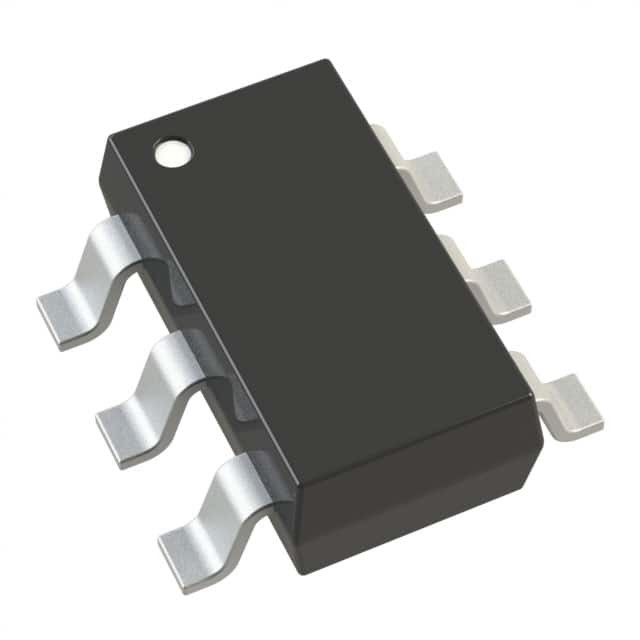

AD8591ARTZ-REEL7 Amplifier IC Chip GP 1 CIRCUIT SOT23-6 Analog Devices Inc
| Brand Name | Analog Devices Inc. |
|---|---|
| Model Number | AD8591ARTZ-REEL7 |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Amplifier Type | General Purpose | Number Of Circuits | 1 |
|---|---|---|---|
| Output Type | Rail-to-Rail | Slew Rate | 5V/µs |
| Gain Bandwidth Product | 3 MHz | -3db Bandwidth | - |
| Current - Input Bias | 5 PA | Voltage - Input Offset | 2 MV |
| Current - Supply | 1.25mA | Current - Output / Channel | 250 MA |
| Voltage - Supply Span (Min) | 2.5 V | Voltage - Supply Span (Max) | 6 V |
| Operating Temperature | -40°C ~ 85°C | Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 | Supplier Device Package | SOT-23-6 |
| Highlight | AD8591ARTZ-REEL7,AD8591ARTZ-REEL7 Amplifier IC Chip |
||
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| AD8591ARTZ-REEL7 | IC OPAMP GP 1 CIRCUIT SOT23-6 | |
| ADA4851-1WYRJZ-R7 | IC OPAMP VFB 1 CIRCUIT SOT23-6 | |
| AD8027ARTZ-REEL7 | IC OPAMP VFB 1 CIRCUIT SOT23-6 | |
| ADA4841-1YRJZ-R7 | IC OPAMP VFB 1 CIRCUIT SOT23-6 | |
| AD8063ARTZ-REEL7 | IC OPAMP VFB 1 CIRCUIT SOT23-6 | |
| ADA4841-1YRJZ-R2 | IC OPAMP VFB 1 CIRCUIT SOT23-6 | |
| AD8027ARTZ-R2 | IC OPAMP VFB 1 CIRCUIT SOT23-6 | |
| ADA4895-1ARJZ-R2 | IC OPAMP GP 1 CIRCUIT SOT23-6 | |
| ADA4851-1YRJZ-RL7 | IC OPAMP VFB 1 CIRCUIT SOT23-6 | |
| ADA4860-1YRJZ-RL7 | IC OPAMP CFA 1 CIRCUIT SOT23-6 | |
| ADM4073HWRJZ-REEL7 | IC CURR SENSE 1 CIRCUIT SOT23-6 | |
| ADM4073TWRJZ-REEL7 | IC CURR SENSE 1 CIRCUIT SOT23-6 | |
| ADM4073FWRJZ-REEL7 | IC CURR SENSE 1 CIRCUIT SOT23-6 | |
| ADA4897-1ARJZ-RL | IC OPAMP VFB 1 CIRCUIT SOT23-6 | |
| ADA4895-1ARJZ-R7 | IC OPAMP GP 1 CIRCUIT SOT23-6 | |
| ADA4897-1ARJZ-R7 | IC OPAMP VFB 1 CIRCUIT SOT23-6 | |
| ADA4897-1ARJZ-R2 | IC OPAMP VFB 1 CIRCUIT SOT23-6 | |
| ADA4897-1SRJZ-EPR7 | IC OPAMP GP 1 CIRCUIT SOT23-6 | |
| ADA4805-1ARJZ-R2 | IC OPAMP GP 1 CIRCUIT SOT23-6 | |
| ADA4805-1ARJZ-R7 | IC OPAMP GP 1 CIRCUIT SOT23-6 | |
| ADA4807-1ARJZ-R7 | IC OPAMP VFB 1 CIRCUIT SOT23-6 | |
| ADA4807-1ARJZ-R2 | IC OPAMP VFB 1 CIRCUIT SOT23-6 | |
| AD8063ART-R2 | IC OPAMP VF R-R LP 50MA SOT23-6 | |
| AD8063ART-REEL | IC OPAMP VF R-R LP 50MA SOT23-6 | |
| AD8063ART-REEL7 | IC OPAMP VFB 1 CIRCUIT SOT23-6 | |
| AD8063ARTZ-REEL | IC OPAMP VFB 1 CIRCUIT SOT23-6 | |
| AD8591ART-REEL | IC OPAMP GP R-R CMOS SOT23-6 | |
| AD8591ART-REEL7 | IC OPAMP GP R-R CMOS SOT23-6 | |
| AD8591ARTZ-REEL | IC OPAMP GP 1 CIRCUIT SOT23-6 | |
| AD8027ART-R2 | IC OPAMP R-R LDIST LN LP SOT23-6 | |
| AD8027ART-REEL7 | IC OPAMP R-R LDIST LN LP SOT23-6 | |
| AD8027ARTZ-REEL | IC OPAMP VFB 1 CIRCUIT SOT23-6 | |
| ADA4851-1YRJZ-R2 | IC OPAMP VFB 1 CIRCUIT SOT23-6 | |
| ADA4851-1YRJZ-RL | IC OPAMP VFB 1 CIRCUIT SOT23-6 | |
| ADA4841-1YRJZ-RL | IC OPAMP VFB 1 CIRCUIT SOT23-6 | |
| ADA4860-1YRJZ-RL | IC OPAMP CFA 1 CIRCUIT SOT23-6 | |
| ADM4073WFWRJZ-RL7 | IC AMP CURR SENSE 50V/V SOT23-6 | |
| ADA4895-1ARJZ-RL | IC OPAMP GP 1 CIRCUIT SOT23-6 | |
| AD8063ARTZ-R2 | IC OPAMP VFB 1 CIRCUIT SOT23-6 | |
| ADA4860-1YRJZ-R2 | IC OPAMP CFA 1 CIRCUIT SOT23-6 |
Product Description
Product Details
GENERAL DESCRIPTION
The AD8591, AD8592, and AD8594 are single, dual, and quad rail-to-rail, input and output single-supply amplifiers featuring 250 mA output drive current and a power saving shutdown mode. The AD8592 includes an independent shutdown function for each amplifier. When both amplifiers are in shutdown mode, the total supply current is reduced to less than 1 μA. The AD8591 and AD8594 include a single master shutdown function that reduces the total supply current to less than 1 μA. All amplifier outputs are in a high impedance state when in shutdown mode.FEATURES
Single-supply operation: 2.5 V to 6 V
High output current: ±250 mA
Extremely low shutdown supply current: 100 nA
Low supply current: 750 μA/Amp
Wide bandwidth: 3 MHz
Slew rate: 5 V/μs
No phase reversal
Very low input bias current
High impedance outputs when in shutdown mode
Unity-gain stable
APPLICATIONS
Mobile communication handset audio
PC audio
PCMCIA/modem line driving
Battery-powered instrumentation
Data acquisition
ASIC input or output amplifiers
LCD display reference level drivers
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Analog Devices |
| Product Category | Instrumentation Amplifier |
| Series | AD8591 |
| Product | Precision Amplifiers |
| Packaging | Reel |
| Unit-Weight | 0.001270 oz |
| Mounting-Style | SMD/SMT |
| Output-Type | Rail to Rail Input/Output |
| Number-of-Channels | 1 Channel |
| Shutdown | Shutdown |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Operating-Supply-Current | 1.75 mA |
| Supply-Voltage-Max | 6 V |
| Supply-Voltage-Min | 2.5 V |
| Package-Case | SOT-23-6 |
| Ib-Input-Bias-Current | 60 pA |
| Vos-Input-Offset-Voltage | 2 mV |
| PSRR-Power-Supply-Rejection-Ratio | 55 dB |
| Output-Current-per-Channel | 250 mA |
| CMRR-Common-Mode-Rejection-Ratio | 47 dB |
| GBP-Gain-Bandwidth-Product | 3 MHz |
| SR-Slew-Rate | 5 V/us |
| en-Input-Voltage-Noise-Density | 45 nV/sqrt Hz at 5 V |
| Voltage-Gain-dB | 89.54 dB |
Functional compatible component
Form,Package,Functional compatible component
| Manufacturer Part# | Description | Manufacturer | Compare |
| AD8591ART Amplifier Circuits |
IC OP-AMP, 30000 uV OFFSET-MAX, 2.2 MHz BAND WIDTH, PDSO6, SOT-23, 6 PIN, Operational Amplifier | Analog Devices Inc | AD8591ARTZ-REEL7 vs AD8591ART |
| MCP608-I/ST Amplifier Circuits |
OP-AMP, 250 uV OFFSET-MAX, 0.155 MHz BAND WIDTH, PDSO8, 4.40 MM, PLASTIC, TSSOP-8 | Microchip Technology Inc | AD8591ARTZ-REEL7 vs MCP608-I/ST |
| MCP608T-I/ST Amplifier Circuits |
OP-AMP, 250 uV OFFSET-MAX, 0.155 MHz BAND WIDTH, PDSO14, PLASTIC, TSSOP-14 | Microchip Technology Inc | AD8591ARTZ-REEL7 vs MCP608T-I/ST |
| AD8591ART-REEL Amplifier Circuits |
OP-AMP, 30000 uV OFFSET-MAX, 2.2 MHz BAND WIDTH, PDSO6, SOT-23, 6 PIN | Rochester Electronics LLC | AD8591ARTZ-REEL7 vs AD8591ART-REEL |
| TC1035ECHRT Amplifier Circuits |
OP-AMP, 1500 uV OFFSET-MAX, 0.09 MHz BAND WIDTH, PDSO6, EIAJ, SC-74, SOT-23A, 6 PIN | Microchip Technology Inc | AD8591ARTZ-REEL7 vs TC1035ECHRT |
| TC1035ECH Amplifier Circuits |
OP-AMP, 1500 uV OFFSET-MAX, 0.09 MHz BAND WIDTH, PDSO6, EIAJ, SC-74, SOT-23A, 6 PIN | Microchip Technology Inc | AD8591ARTZ-REEL7 vs TC1035ECH |
| AD8591ARTZ-REEL Amplifier Circuits |
OP-AMP, 30000uV OFFSET-MAX, 2.2MHz BAND WIDTH, PDSO6, SOT-23, 6 PIN | Analog Devices Inc | AD8591ARTZ-REEL7 vs AD8591ARTZ-REEL |
| TC1035ECHTR Amplifier Circuits |
OP-AMP, 1500 uV OFFSET-MAX, 0.09 MHz BAND WIDTH, PDSO6, EIAJ, SC-74, SOT-23A, 6 PIN | Microchip Technology Inc | AD8591ARTZ-REEL7 vs TC1035ECHTR |
| MCP608TI/ST Amplifier Circuits |
OP-AMP, 250 uV OFFSET-MAX, 0.155 MHz BAND WIDTH, PDSO8, 4.40 MM, PLASTIC, TSSOP-8 | Microchip Technology Inc | AD8591ARTZ-REEL7 vs MCP608TI/ST |
| MCP608I/ST Amplifier Circuits |
OP-AMP, 250 uV OFFSET-MAX, 0.155 MHz BAND WIDTH, PDSO8, 4.40 MM, PLASTIC, TSSOP-8 | Microchip Technology Inc | AD8591ARTZ-REEL7 vs MCP608I/ST |
Descriptions
General Purpose Amplifier 1 Circuit Rail-to-Rail SOT-23-6
OP Amp Single GP R-R I/O 6V 6-Pin SOT-23 T/R
Precision Amplifiers CMOS SGL Spply RRIO w/+-250mA Outpt Crnt
