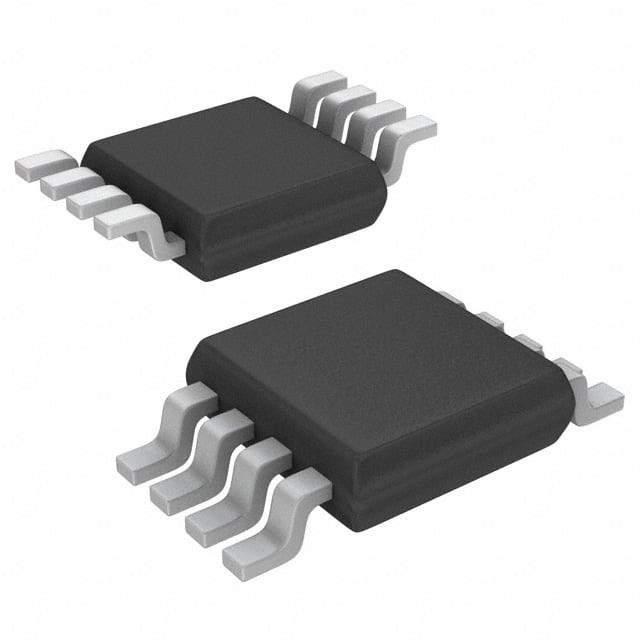

ISL28118MUZ-T7A OPAMP IC GP 1 CIRCUIT 8MSOP Renesas Electronics America Inc
| Brand Name | Renesas Electronics America Inc |
|---|---|
| Model Number | ISL28118MUZ-T7A |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Amplifier Type | General Purpose | Number Of Circuits | 1 |
|---|---|---|---|
| Output Type | Rail-to-Rail | Slew Rate | 1.2V/µs |
| Gain Bandwidth Product | 4 MHz | -3db Bandwidth | - |
| Current - Input Bias | 230 NA | Voltage - Input Offset | 25 µV |
| Current - Supply | 850µA | Current - Output / Channel | 28 MA |
| Voltage - Supply Span (Min) | 3 V | Voltage - Supply Span (Max) | 40 V |
| Operating Temperature | -55°C ~ 125°C | Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Supplier Device Package | 8-MSOP |
| Highlight | ISL28118MUZ-T7A,ISL28118MUZ-T7A OPAMP IC |
||
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| ISL28118MUZ-T7A | IC OPAMP GP 1 CIRCUIT 8MSOP | |
| ISL28107FUZ-T7A | IC OPAMP GP 1 CIRCUIT 8MSOP | |
| ISL28217FUZ-T7A | IC OPAMP GP 2 CIRCUIT 8MSOP | |
| ISL28217FUZ | IC OPAMP GP 2 CIRCUIT 8MSOP | |
| ISL28227FUBZ-T7A | IC OPAMP GP 2 CIRCUIT 8MSOP | |
| ISL28118FUZ-T13 | IC OPAMP GP 1 CIRCUIT 8MSOP | |
| ISL28118FUZ-T7 | IC OPAMP GP 1 CIRCUIT 8MSOP | |
| ISL28118FUZ | IC OPAMP GP 1 CIRCUIT 8MSOP | |
| ISL28227FUZ-T13 | IC OPAMP GP 2 CIRCUIT 8MSOP | |
| ISL28227FUZ | IC OPAMP GP 2 CIRCUIT 8MSOP | |
| ISL28227FUZ-T7 | IC OPAMP GP 2 CIRCUIT 8MSOP | |
| ISL28217FUZ-T13 | IC OPAMP GP 2 CIRCUIT 8MSOP | |
| ISL28217FUZ-T7 | IC OPAMP GP 2 CIRCUIT 8MSOP | |
| ISL28227FUBZ-T13 | IC OPAMP GP 2 CIRCUIT 8MSOP | |
| ISL28227FUBZ-T7 | IC OPAMP GP 2 CIRCUIT 8MSOP | |
| ISL28227FUBZ | IC OPAMP GP 2 CIRCUIT 8MSOP | |
| ISL28218FUZ-T13 | IC OPAMP GP 2 CIRCUIT 8MSOP | |
| ISL28218FUZ-T7 | IC OPAMP GP 2 CIRCUIT 8MSOP | |
| ISL28218FUZ-T7A | IC OPAMP GP 2 CIRCUIT 8MSOP | |
| ISL28207FUZ-T7A | IC OPAMP GP 2 CIRCUIT 8MSOP | |
| ISL28118MUZ-T13 | IC OPAMP GP 1 CIRCUIT 8MSOP | |
| ISL28118MUZ-T7 | IC OPAMP GP 1 CIRCUIT 8MSOP | |
| ISL28127FUZ | IC OPAMP GP 1 CIRCUIT 8MSOP | |
| ISL28127FUZ-T13 | IC OPAMP GP 1 CIRCUIT 8MSOP | |
| ISL28117FUBZ | IC OPAMP GP 1 CIRCUIT 8MSOP | |
| ISL28117FUBZ-T13 | IC OPAMP GP 1 CIRCUIT 8MSOP | |
| ISL28117FUBZ-T7 | IC OPAMP GP 1 CIRCUIT 8MSOP | |
| ISL28127FUBZ | IC OPAMP GP 1 CIRCUIT 8MSOP | |
| ISL28127FUBZ-T13 | IC OPAMP GP 1 CIRCUIT 8MSOP | |
| ISL28127FUBZ-T7 | IC OPAMP GP 1 CIRCUIT 8MSOP | |
| ISL28107FUZ-T13 | IC OPAMP GP 1 CIRCUIT 8MSOP | |
| ISL28117FUZ-T13 | IC OPAMP GP 1 CIRCUIT 8MSOP | |
| ISL28107FUZ | IC OPAMP GP 1 CIRCUIT 8MSOP | |
| ISL28117FUZ | IC OPAMP GP 1 CIRCUIT 8MSOP | |
| ISL28107FUZ-T7 | IC OPAMP GP 1 CIRCUIT 8MSOP | |
| ISL28117FUZ-T7 | IC OPAMP GP 1 CIRCUIT 8MSOP | |
| ISL28117FUBZ-T7A | IC OPAMP GP 1 CIRCUIT 8MSOP | |
| ISL28127FUBZ-T7A | IC OPAMP GP 1 CIRCUIT 8MSOP | |
| ISL28127FUZ-T7A | IC OPAMP GP 1 CIRCUIT 8MSOP |
Product Description
Product Details
The ISL28117 and ISL28217 are a family of very high precision amplifiers featuring low noise vs power consumption, low offset voltage, low IBIAS current and low temperature drift making them the ideal choice for applications requiring both high DC accuracy and AC performance. The combination of precision, low noise, and small footprint provides the user with outstanding value and flexibility relative to similar competitive parts. Applications for these amplifiers include precision active filters, medical and analytical instrumentation, precision power supply controls, and industrial controls. The ISL28117 single and ISL28217 dual are offered in an 8 Ld SOIC package. Both devices are offered in standard pin configurations and operate over the extended temperature range to -40°C to +125°C.
Features
• Low Input Offset . . . . . . . . . . . . . . ±50µV, Max.• Superb Offset TC . . . . . . . . . . . . 0.6µV/°C, Max.
• Input Bias Current . . . . . . . . . . . . . . ±1nA, Max.
• Input Bias Current TC . . . . . . . . . .±5pA/°C, Max.
• Low Current Consumption . . . . . . . . . . . . .440µA
• Voltage Noise. . . . . . . . . . . . . . . . . . . . . 8nV/Hz
• Wide Supply Range. . . . . . . . . . . . . . 4.5V to 40V
• Operating Temperature Range . . -40°C to +125°C
• Small Package Offerings in Single and Dual
• Pb-Free (RoHS Compliant)
Applications
• Precision Instruments• Medical Instrumentation
• Spectral Analysis Equipment
• Active Filter Blocks
• Thermocouples and RTD Reference Buffers
• Data Acquisition
• Power Supply Control
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Renesas |
| Product Category | IC Chips |
| Series | ISL28118 |
| Product | Precision Amplifiers |
| Packaging | Reel |
| Unit-Weight | 0.004938 oz |
| Mounting-Style | SMD/SMT |
| Number-of-Channels | 1 Channel |
| Maximum Operating Temperature | + 125 C |
| Operating temperature range | - 55 C |
| Operating-Supply-Current | 0.85 mA |
| Supply-Voltage-Max | 40 V |
| Supply-Voltage-Min | 3 V |
| Package-Case | MSOP-8 |
| Ib-Input-Bias-Current | - 230 nA |
| Vos-Input-Offset-Voltage | 25 uV |
| PSRR-Power-Supply-Rejection-Ratio | 124 dB |
| Output-Current-per-Channel | 40 mA |
| CMRR-Common-Mode-Rejection-Ratio | 118 dB |
| GBP-Gain-Bandwidth-Product | 4 MHz |
Descriptions
General Purpose Amplifier 1 Circuit Rail-to-Rail 8-MSOP
Op Amp Single GP R-R O/P 卤20V/40V 8-Pin MSOP T/R
Precision Amplifiers ISL28118MUZ 40V LW NOISE RAIL-RAIL OUT
