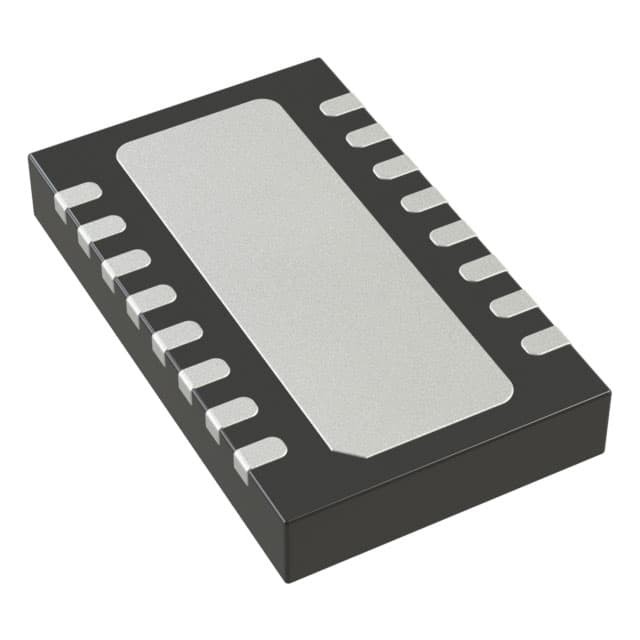

LTC6079IDHC#PBF CMOS Amplifier IC 4 CIRCUIT 16DFN Rail-to-Rail Output
| Brand Name | Analog Devices Inc. |
|---|---|
| Model Number | LTC6079IDHC#PBF |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Amplifier Type | CMOS | Number Of Circuits | 4 |
|---|---|---|---|
| Output Type | Rail-to-Rail | Slew Rate | 0.05V/µs |
| Gain Bandwidth Product | 750 KHz | -3db Bandwidth | - |
| Current - Input Bias | 0.2 PA | Voltage - Input Offset | 10 µV |
| Current - Supply | 55µA (x4 Channels) | Current - Output / Channel | 25 MA |
| Voltage - Supply Span (Min) | 2.7 V | Voltage - Supply Span (Max) | 5.5 V |
| Operating Temperature | -40°C ~ 85°C | Mounting Type | Surface Mount |
| Package / Case | 16-WFDFN Exposed Pad | Supplier Device Package | 16-DFN (5x3) |
| Highlight | LTC6079IDHC#PBF,LTC6079IDHC#PBF CMOS Amplifier IC,16DFN CMOS Amplifier IC |
||
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| LTC6079IDHC#PBF | IC CMOS 4 CIRCUIT 16DFN | |
| LT1491AIDHC#PBF | IC OPAMP GP 4 CIRCUIT 16DFN | |
| LTC6242IDHC#PBF | IC CMOS 4 CIRCUIT 16DFN | |
| LTC6082CDHC#PBF | IC CMOS 4 CIRCUIT 16DFN | |
| LTC6242HVCDHC#PBF | IC CMOS 4 CIRCUIT 16DFN | |
| LTC6242HVIDHC#PBF | IC CMOS 4 CIRCUIT 16DFN | |
| LTC6088CDHC#PBF | IC CMOS 4 CIRCUIT 16DFN | |
| LT6005HDHC#PBF | IC OPAMP GP 4 CIRCUIT 16DFN | |
| LT6002CDHC#PBF | IC OPAMP GP 4 CIRCUIT 16DFN | |
| LTC6088HDHC#PBF | IC CMOS 4 CIRCUIT 16DFN | |
| LTC6085HDHC#PBF | IC CMOS 4 CIRCUIT 16DFN | |
| LTC6082IDHC#PBF | IC CMOS 4 CIRCUIT 16DFN | |
| LTC6079IDHC#TRPBF | IC CMOS 4 CIRCUIT 16DFN | |
| LT6005CDHC#PBF | IC OPAMP GP 4 CIRCUIT 16DFN | |
| LTC6079CDHC#PBF | IC CMOS 4 CIRCUIT 16DFN | |
| LT1491ACDHC#PBF | IC OPAMP GP 4 CIRCUIT 16DFN | |
| LT6002IDHC#PBF | IC OPAMP GP 4 CIRCUIT 16DFN | |
| LTC6088CDHC#TRPBF | IC CMOS 4 CIRCUIT 16DFN | |
| LTC6085CDHC#TRPBF | IC CMOS 4 CIRCUIT 16DFN | |
| LT6005CDHC#TRPBF | IC OPAMP GP 4 CIRCUIT 16DFN | |
| LTC6085HDHC#TRPBF | IC CMOS 4 CIRCUIT 16DFN | |
| LTC6088HDHC#TRPBF | IC CMOS 4 CIRCUIT 16DFN | |
| LT6005IDHC#TRPBF | IC OPAMP GP 4 CIRCUIT 16DFN | |
| LT6002CDHC#TRPBF | IC OPAMP GP 4 CIRCUIT 16DFN | |
| LT6005HDHC#TRPBF | IC OPAMP GP 4 CIRCUIT 16DFN | |
| LTC6085CDHC#PBF | IC CMOS 4 CIRCUIT 16DFN | |
| LTC6242CDHC#TRPBF | IC CMOS 4 CIRCUIT 16DFN | |
| LT6002IDHC#TRPBF | IC OPAMP GP 4 CIRCUIT 16DFN | |
| LTC6242IDHC#TRPBF | IC CMOS 4 CIRCUIT 16DFN | |
| LTC6079CDHC#TRPBF | IC CMOS 4 CIRCUIT 16DFN | |
| LT6005IDHC#PBF | IC OPAMP GP 4 CIRCUIT 16DFN | |
| LTC6082CDHC#TRPBF | IC CMOS 4 CIRCUIT 16DFN | |
| LTC6242CDHC#PBF | IC CMOS 4 CIRCUIT 16DFN | |
| LTC6242HVCDHC#TRPBF | IC CMOS 4 CIRCUIT 16DFN | |
| LT1491ACDHC#TRPBF | IC OPAMP GP 4 CIRCUIT 16DFN | |
| LTC6082IDHC#TRPBF | IC CMOS 4 CIRCUIT 16DFN | |
| LTC6242HVIDHC#TRPBF | IC CMOS 4 CIRCUIT 16DFN | |
| LT1491AIDHC#TRPBF | IC OPAMP GP 4 CIRCUIT 16DFN |
Product Description
Product Details
DESCRIPTION
The LTC®6078/LTC6079 are dual/quad, low offset, low noise operational amplifiers with low power consumption and rail-to-rail input/output swing.
Input offset voltage is trimmed to less than 25µV and the CMOS inputs draw less than 50pA of bias current. The low offset drift, excellent CMRR, and high voltage gain make it a good choice for precision signal conditioning. Each amplifi er draws only 54µA current on a 3V supply. The
micropower, rail-to-rail operation of the LTC6078/LTC6079 is well suited for portable instruments and single supply applications.
The LTC6078/LTC6079 are specified on power supply voltages of 3V and 5V from –40 to 125°C. The dual amplifier LTC6078 is available in 8-lead MSOP and 10-lead DFN packages. The quad amplifier LTC6079 is available in 16-lead SSOP and DFN packages.
FEATURES
■ Maximum Offset Voltage of 25µV (25°C)■ Maximum Offset Drift of 0.7µV/°C
■ Maximum Input Bias: 1pA (25°C) 50pA (≤85°C)
■ Micropower: 54µA per Amp
■ 95dB CMRR (Min)
■ 100dB PSRR (Min)
■ Input Noise Voltage Density: 16nV/√Hz
■ Rail-to-Rail Inputs and Outputs
■ 2.7V to 5.5V Operation Voltage
■ LTC6078 Available in 8-Lead MSOP and 10-Lead DFN Packages; LTC6079 Available in 16-Lead SSOP and DFN Packages
APPLICATIONS
■ Photodiode Amplifier
■ High Impedance Sensor Amplifier
■ Microvolt Accuracy Threshold Detection
■ Instrumentation Amplifiers
■ Battery Powered Applications
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Analog Devices / Linear Technology |
| Product Category | Instrumentation Amplifier |
| Categories | Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Linear Technology |
| Series | - |
| Packaging | Tube |
| Part-Status | Active |
| Amplifier-Type | General Purpose |
| Number-of-Circuits | 4 Circuits |
| Output-Type | Rail-to-Rail |
| Slew-Rate | 0.05 V/?s |
| Gain-Bandwidth-Product | 750kHz |
| Current-Input-Bias | 0.2pA |
| Voltage-Input-Offset | 10?V |
| Current-Supply | 55?A |
| Voltage-Supply-Single-Dual-± | 2.7 V ~ 5.5 V |
| Operating-Temperature | -40°C ~ 85°C |
| Mounting-Type | Surface Mount |
| Package-Case | 16-WFDFN Exposed Pad |
| Supplier-Device-Package | 16-DFN-EP (5x3) |
| Base-Part-Number | LTC6079 |
Descriptions
General Purpose Amplifier 4 Circuit Rail-to-Rail 16-DFN-EP (5x3)
LTC6079 - Micropower Precision, Quad CMOS Rail-to-Rail Input/Output Amplifiers
