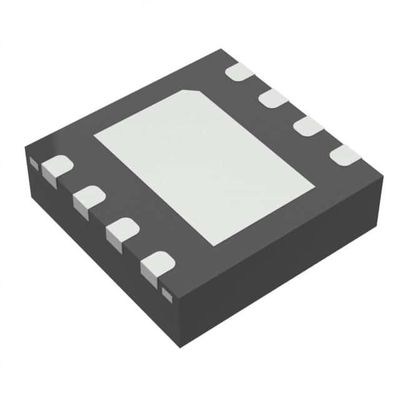

ISL24021IRT065Z-T7A IC VOLTAGE FEEDBACK 1 CIRC 8TDFN Renesas Electronics America Inc
| Brand Name | Renesas Electronics America Inc |
|---|---|
| Model Number | ISL24021IRT065Z-T7A |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Amplifier Type | Voltage Feedback | Number Of Circuits | 1 |
|---|---|---|---|
| Output Type | Rail-to-Rail | Slew Rate | 19V/µs |
| Gain Bandwidth Product | - | -3db Bandwidth | 27 MHz |
| Current - Input Bias | 2 NA | Voltage - Input Offset | 1.4 MV |
| Current - Supply | 2.2mA | Current - Output / Channel | 300 MA |
| Voltage - Supply Span (Min) | 4.5 V | Voltage - Supply Span (Max) | 19 V |
| Operating Temperature | -40°C ~ 85°C | Mounting Type | Surface Mount |
| Package / Case | 8-WDFN Exposed Pad | Supplier Device Package | 8-TDFN (3x3) |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| ISL24021IRT065Z-T7A | IC VOLTAGE FEEDBACK 1 CIRC 8TDFN | |
| ISL28208FRTZ-T7A | IC OPAMP GP 2 CIRCUIT 8TDFN | |
| ISL28117FRTZ-T7A | IC OPAMP GP 1 CIRCUIT 8TDFN | |
| ISL28127FRTZ-T13 | IC OPAMP GP 1 CIRCUIT 8TDFN | |
| ISL28127FRTZ | IC OPAMP GP 1 CIRCUIT 8TDFN | |
| ISL24021IRT065Z-T13 | IC VOLTAGE FEEDBACK 1 CIRC 8TDFN | |
| ISL28207FRTZ | IC OPAMP GP 2 CIRCUIT 8TDFN | |
| ISL28208FRTZ-T13 | IC OPAMP GP 2 CIRCUIT 8TDFN | |
| ISL28208FRTZ-T7 | IC OPAMP GP 2 CIRCUIT 8TDFN | |
| ISL28208FRTZ | IC OPAMP GP 2 CIRCUIT 8TDFN | |
| ISL24021IRT065Z | IC VOLTAGE FEEDBACK 1 CIRC 8TDFN | |
| ISL28117FRTBZ | IC OPAMP GP 1 CIRCUIT 8TDFN | |
| ISL28117FRTBZ-T13 | IC OPAMP GP 1 CIRCUIT 8TDFN | |
| ISL28117FRTBZ-T7 | IC OPAMP GP 1 CIRCUIT 8TDFN | |
| ISL28207FRTZ-T13 | IC OPAMP GP 2 CIRCUIT 8TDFN | |
| ISL28217FRTBZ-T13 | IC OPAMP GP 2 CIRCUIT 8TDFN | |
| ISL28217FRTZ-T13 | IC OPAMP GP 2 CIRCUIT 8TDFN | |
| ISL28227FRTBZ-T13 | IC OPAMP GP 2 CIRCUIT 8TDFN | |
| ISL28227FRTZ-T13 | IC OPAMP GP 2 CIRCUIT 8TDFN | |
| ISL28207FRTZ-T7 | IC OPAMP GP 2 CIRCUIT 8TDFN | |
| ISL28217FRTBZ-T7 | IC OPAMP GP 2 CIRCUIT 8TDFN | |
| ISL28217FRTZ-T7 | IC OPAMP GP 2 CIRCUIT 8TDFN | |
| ISL28217FRTBZ | IC OPAMP GP 2 CIRCUIT 8TDFN | |
| ISL28217FRTZ | IC OPAMP GP 2 CIRCUIT 8TDFN | |
| ISL28227FRTBZ | IC OPAMP GP 2 CIRCUIT 8TDFN | |
| ISL28227FRTZ | IC OPAMP GP 2 CIRCUIT 8TDFN | |
| ISL28107FRTZ-T7A | IC OPAMP GP 1 CIRCUIT 8TDFN | |
| ISL28117FRTBZ-T7A | IC OPAMP GP 1 CIRCUIT 8TDFN | |
| ISL28127FRTBZ-T7A | IC OPAMP GP 1 CIRCUIT 8TDFN |
Product Description
Product Details
1A Rail-to-Rail Input-Output Operational Amplifier
The ISL24021 is a high output current, high voltage, rail-to-rail voltage feedback amplifier. The ISL24021 is capable of ±1A peak output short circuit current. The amplifier exhibits beyond the rail input capability, rail-to-rail output capability and is unity gain stable.
Features
• ±1A Output Short Circuit Current• 4.5V to 19V Maximum Supply Voltage Range
• 2.0mA Supply Current
• 18V/µs Slew Rate
• 25MHz -3dB Bandwidth
• ±300mA Continuous Output Current
• Unity-Gain Stable
• Beyond the Rails Input Capability
• Rail-to-Rail Output Swing
• Built-in Thermal Protection
• -40°C to +85°C Ambient Temperature Range
• Pb-Free (RoHS Compliant)
Applications
• TFT-LCD Panels• VCOM Driver
• Video Processing
• Audio Processing
• Active Filters
• Test Equipment
• Battery-Powered Applications
• Portable Equipment
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Renesas |
| Product Category | Instrumentation Amplifier |
| Series | ISL24021 |
| Product | Operational Amplifiers |
| Packaging | Reel |
| Mounting-Style | SMD/SMT |
| Shutdown | Shutdown |
| Package-Case | TDFN-EP-8 |
Descriptions
Voltage Feedback Amplifier 1 Circuit Rail-to-Rail 8-TDFN (3x3)
Op Amp Single Volt Fdbk R-R I/O 19V 8-Pin TDFN EP T/R
Operational Amplifiers - Op Amps ISL24021IRTZ 1AMP OU TPUT CUR SNGL RRIO
