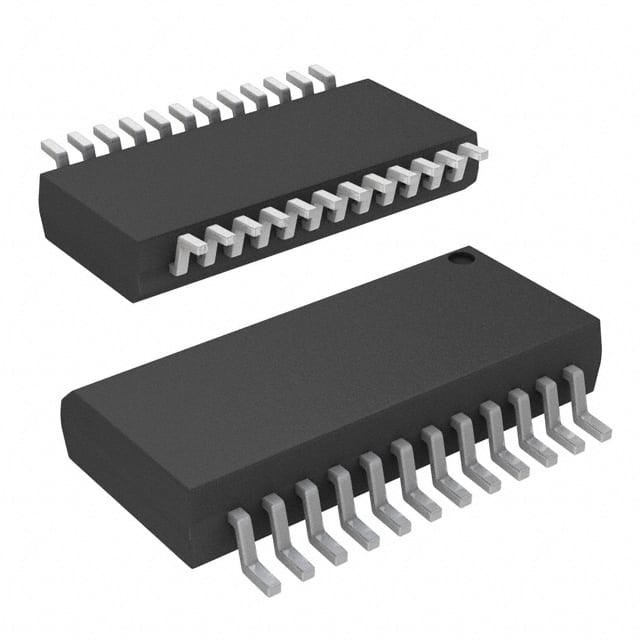

EL5375IUZ-T7 IC OPAMP DIFF 3 CIRCUIT 24QSOP Renesas Electronics America Inc
| Brand Name | Renesas Electronics America Inc |
|---|---|
| Model Number | EL5375IUZ-T7 |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Amplifier Type | Differential | Number Of Circuits | 3 |
|---|---|---|---|
| Output Type | - | Slew Rate | 900V/µs |
| Gain Bandwidth Product | 200 MHz | -3db Bandwidth | 550 MHz |
| Current - Input Bias | 12.5 µA | Voltage - Input Offset | 3 MV |
| Current - Supply | 9.6mA (x3 Channels) | Current - Output / Channel | 67 MA |
| Voltage - Supply Span (Min) | 4.75 V | Voltage - Supply Span (Max) | 11 V |
| Operating Temperature | -40°C ~ 85°C (TA) | Mounting Type | Surface Mount |
| Package / Case | 24-SSOP (0.154", 3.90mm Width) | Supplier Device Package | 24-QSOP |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| EL5375IUZ-T7 | IC OPAMP DIFF 3 CIRCUIT 24QSOP | |
| EL5375IUZ | IC OPAMP DIFF 3 CIRCUIT 24QSOP | |
| EL5375IUZ-T13 | IC OPAMP DIFF 3 CIRCUIT 24QSOP | |
| EL5370IU | IC OPAMP DIFF 3 CIRCUIT 24QSOP | |
| EL5372IU | IC OPAMP DIFF 3 CIRCUIT 24QSOP | |
| EL5373IU | IC OPAMP DIFF 3 CIRCUIT 24QSOP | |
| EL5375IU | IC OPAMP DIFF 3 CIRCUIT 24QSOP | |
| EL5370IU-T7 | IC OPAMP DIFF 3 CIRCUIT 24QSOP | |
| EL5372IU-T7 | IC OPAMP DIFF 3 CIRCUIT 24QSOP | |
| EL5373IU-T7 | IC OPAMP DIFF 3 CIRCUIT 24QSOP | |
| EL5375IU-T7 | IC OPAMP DIFF 3 CIRCUIT 24QSOP | |
| EL5370IUZ | IC OPAMP DIFF 3 CIRCUIT 24QSOP | |
| EL5373IUZ | IC OPAMP DIFF 3 CIRCUIT 24QSOP | |
| EL5372IUZ-T7 | IC OPAMP DIFF 3 CIRCUIT 24QSOP | |
| EL5370IU-T13 | IC OPAMP DIFF 3 CIRCUIT 24QSOP | |
| EL5370IUZ-T13 | IC OPAMP DIFF 3 CIRCUIT 24QSOP | |
| EL5370IUZ-T7 | IC OPAMP DIFF 3 CIRCUIT 24QSOP | |
| EL5372IU-T13 | IC OPAMP DIFF 3 CIRCUIT 24QSOP | |
| EL5372IUZ | IC OPAMP DIFF 3 CIRCUIT 24QSOP | |
| EL5372IUZ-T13 | IC OPAMP DIFF 3 CIRCUIT 24QSOP | |
| EL5373IU-T13 | IC OPAMP DIFF 3 CIRCUIT 24QSOP | |
| EL5373IUZ-T13 | IC OPAMP DIFF 3 CIRCUIT 24QSOP | |
| EL5373IUZ-T7 | IC OPAMP DIFF 3 CIRCUIT 24QSOP | |
| EL5375IU-T13 | IC OPAMP DIFF 3 CIRCUIT 24QSOP | |
| ISL28474FAZ-T7 | IC INST AMP 4 CIRCUIT 24QSOP | |
| ISL28474FAZ | IC INST AMP 4 CIRCUIT 24QSOP | |
| EL5373IUZR5293-T7 | IC OPAMP DIFF 3 CIRCUIT 24QSOP |
Product Description
Product Details
The EL5175 and EL5375 are single and triple high bandwidth amplifiers designed to extract the difference signal from noisy environments. They are primarily targeted for applications such as receiving signals from twisted-pair lines or any application where common mode noise injection is likely to occur.
Features
• Differential input range ±2.3V• 550MHz 3dB bandwidth
• 900V/µs slew rate
• 60mA maximum output current
• Single 5V or dual ±5V supplies
• Low power, 9.6mA per channel
• Pb-free available (RoHS compliant)
Applications
• Twisted-pair receivers• Differential line receivers
• VGA over twisted-pair
• Differential to single-ended amplification
• Reception of analog signals in a noisy environment
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Renesas |
| Product Category | Instrumentation Amplifier |
| Series | EL5375 |
| Product | Differential Amplifiers |
| Packaging | Reel |
| Unit-Weight | 0.009016 oz |
| Mounting-Style | SMD/SMT |
| Number-of-Channels | 3 Channel |
| Amplifier-Type | Driver |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Operating-Supply-Current | 33 mA |
| Supply-Voltage-Max | 11 V |
| Supply-Voltage-Min | 4.75 V |
| Package-Case | QSOP-24 |
| Ib-Input-Bias-Current | 25 uA |
| Vos-Input-Offset-Voltage | 30 mV |
| PSRR-Power-Supply-Rejection-Ratio | 45 dB |
| GBP-Gain-Bandwidth-Product | 200 MHz |
| Gain-V-V | 1 V/V |
| Maximum-Input-Resistance | 150 kOhms |
Descriptions
Differential Amplifier 3 Circuit 24-QSOP
SP Amp DIFF Line Receiver Amp Triple 卤5.5V/11V 24-Pin QSOP T/R
Differential Amplifiers EL5375IUZ 500 MHZ TPL DIFF LINECVR
