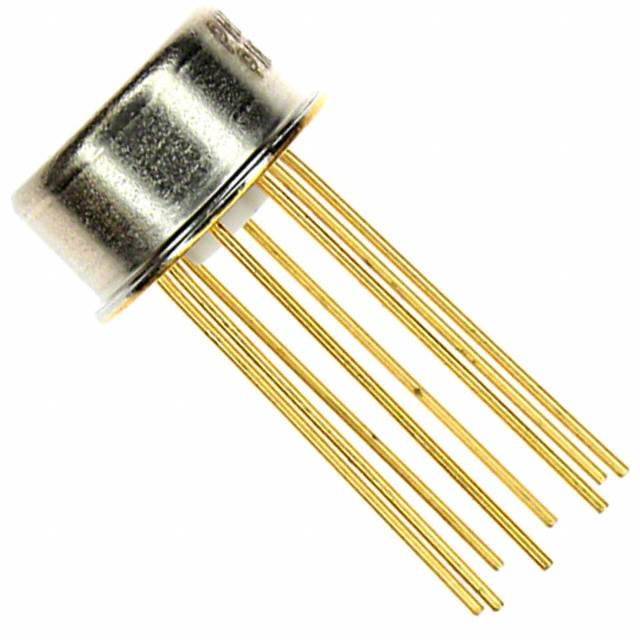

OP77FJZ IC OPAMP GP 1 CIRCUIT TO99-8 Analog Devices Inc.
| Brand Name | Analog Devices Inc. |
|---|---|
| Model Number | OP77FJZ |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Amplifier Type | General Purpose | Number Of Circuits | 1 |
|---|---|---|---|
| Output Type | - | Slew Rate | 0.3V/µs |
| Gain Bandwidth Product | 600 KHz | -3db Bandwidth | - |
| Current - Input Bias | 1.2 NA | Voltage - Input Offset | 20 µV |
| Current - Supply | - | Current - Output / Channel | - |
| Voltage - Supply Span (Min) | 6 V | Voltage - Supply Span (Max) | 36 V |
| Operating Temperature | -25°C ~ 85°C | Mounting Type | Through Hole |
| Package / Case | TO-99-8 Metal Can | Supplier Device Package | TO-99-8 |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| OP77FJZ | IC OPAMP GP 1 CIRCUIT TO99-8 | |
| JM38510/13501BGA | IC OPAMP GP 1 CIRCUIT TO99-8 | |
| JM38510/13503BGA | IC OPAMP GP 1 CIRCUIT TO99-8 | |
| JM38510/13502BGA | IC OPAMP GP 1 CIRCUIT TO99-8 | |
| JM38510/11405BGA | IC OPAMP JFET 1 CIRCUIT TO99-8 | |
| AMP03FJZ | IC OPAMP DIFF 1 CIRCUIT TO99-8 | |
| AD549JH | IC OPAMP GP 1MHZ TO99-8 | |
| AD549LH | IC OPAMP GP 1MHZ TO99-8 | |
| AD744AH | IC OPAMP BIFET 13MHZ PREC TO99-8 | |
| AMP03BJ | IC AMP DIFF PREC LDIST TO99-8 | |
| AMP03FJ | IC AMP DIFF PREC LDIST TO99-8 | |
| OP27GJ | IC OPAMP GP 8MHZ LN PREC TO99-8 | |
| OP42AJ | IC OPAMP JFET 10MHZ PREC TO99-8 | |
| OP42EJ | IC OPAMP JFET 1 CIRCUIT TO99-8 | |
| OP42FJ | IC OPAMP JFET 1 CIRCUIT TO99-8 | |
| AD549JHZ | IC OPAMP GP 1 CIRCUIT TO99-8 | |
| AMP03BJZ | IC OPAMP DIFF 1 CIRCUIT TO99-8 | |
| OP27GJZ | IC OPAMP GP 1 CIRCUIT TO99-8 | |
| AD549LHZ | IC OPAMP GP 1 CIRCUIT TO99-8 | |
| AD549KHZ | IC OPAMP GP 1 CIRCUIT TO99-8 | |
| 5962-8773802GA | IC OPAMP GP 1 CIRCUIT TO99-8 | |
| 5962-8851301GA | IC OPAMP JFET 1 CIRCUIT TO99-8 | |
| AD549SH/883B | IC OPAMP GP 1 CIRCUIT TO99-8 | |
| OP27AJ/883C | IC OPAMP GP 1 CIRCUIT TO99-8 |
Product Description
Product Details
GENERAL DESCRIPTION
The OP77 has outstanding gain of 10,000,000 or more that is maintained over the full 10 V output range. This gain-linearity eliminates incorrectable system nonlinearities common in previous monolithic op amps and provides superior performance in high closed-loop gain applications. Low initial VOS drift and rapid stabilization time, combined with only 50 mW of power consumption, are significant improvements over previous designs. These characteristics, plus the TCVOS of 0.3 μV/°C maximum and the low VOS of 25 μV maximum, eliminates the need for VOS adjustment and increases system accuracy over temperature.
FEATURES
Outstanding gain linearityUltrahigh gain, 5000 V/mV min
Low VOS over temperature, 55 μV max
TCVOS, 0.3 μV/°C max
High PSRR, 3 μV/V max
Low power consumption, 60 mW max
Available in die form
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Analog Devices |
| Product Category | Instrumentation Amplifier |
| Series | OP77 |
| Product | Precision Amplifiers |
| Packaging | Bulk |
| Mounting-Style | Through Hole |
| Number-of-Channels | 1 Channel |
| Shutdown | No Shutdown |
| Pd-Power-Dissipation | 60 mW |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 25 C |
| Supply-Voltage-Max | 18 V |
| Supply-Voltage-Min | 3 V |
| Package-Case | TO-99-8 |
| Ib-Input-Bias-Current | 2.8 nA |
| Vos-Input-Offset-Voltage | 20 uV |
| PSRR-Power-Supply-Rejection-Ratio | 123.1 dB (Typ) |
| GBP-Gain-Bandwidth-Product | 600 kHz |
| SR-Slew-Rate | 0.3 V/us |
| en-Input-Voltage-Noise-Density | 10.5 nV/sqrt Hz at +/- 15 V |
| Voltage-Gain-dB | 135.56 dB |
| Manufacturer | Analog Devices Inc. |
| Product-Category | Precision Amplifiers |
| RoHS | Details |
| Supply-Voltage-Max | 18 V |
| Maximum-Operating-Temperature | + 85 C |
| Minimum-Operating-Temperature | - 25 C |
| Brand | Analog Devices |
Descriptions
General Purpose Amplifier 1 Circuit TO-99-8
OP Amp Single GP 卤22V 8-Pin TO-99 Tube
Precision Amplifiers LOW OFFSET VTG IC
