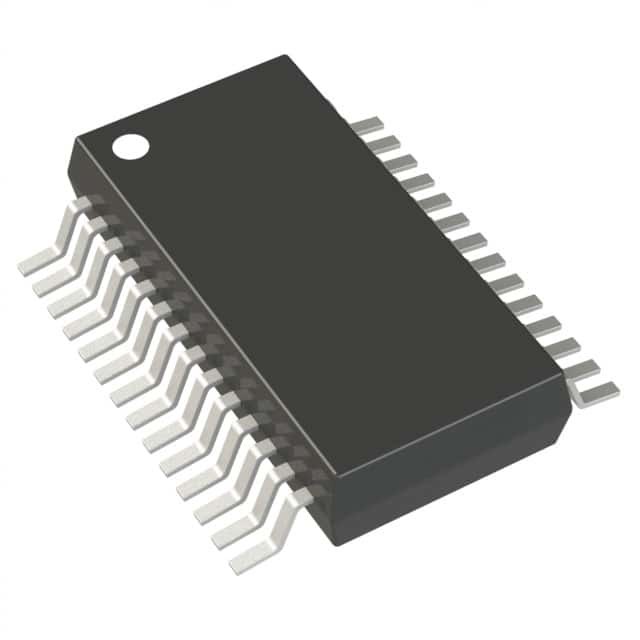

EL5378IUZ IC OPAMP DIFF 3 CIRC 28SSOP/QSOP Renesas Electronics America Inc
| Brand Name | Renesas Electronics America Inc |
|---|---|
| Model Number | EL5378IUZ |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Amplifier Type | Differential | Number Of Circuits | 3 |
|---|---|---|---|
| Output Type | Differential | Slew Rate | 1000V/µs |
| Gain Bandwidth Product | 350 MHz | -3db Bandwidth | 700 MHz |
| Current - Input Bias | 14 µA | Voltage - Input Offset | 1.9 MV |
| Current - Supply | 12.5mA (x3 Channels) | Current - Output / Channel | 100 MA |
| Voltage - Supply Span (Min) | 4.75 V | Voltage - Supply Span (Max) | 11 V |
| Operating Temperature | -40°C ~ 85°C | Mounting Type | Surface Mount |
| Package / Case | 28-SSOP (0.154", 3.90mm Width) | Supplier Device Package | 28-SSOP/QSOP |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| EL5378IUZ | IC OPAMP DIFF 3 CIRC 28SSOP/QSOP | |
| EL5378IUZ-T13 | IC OPAMP DIFF 3 CIRC 28SSOP/QSOP | |
| EL5378IUZ-T7 | IC OPAMP DIFF 3 CIRC 28SSOP/QSOP | |
| EL5371IU | IC OPAMP DIFF 3 CIRCUIT 28QSOP | |
| EL5374IU | IC OPAMP DIFF 3 CIRC 28SSOP/QSOP | |
| EL5371IU-T7 | IC OPAMP DIFF 3 CIRCUIT 28QSOP | |
| EL5374IU-T7 | IC OPAMP DIFF 3 CIRC 28SSOP/QSOP | |
| EL5374IUZ | IC OPAMP DIFF 3 CIRC 28SSOP/QSOP | |
| EL5371IU-T13 | IC OPAMP DIFF 3 CIRCUIT 28QSOP | |
| EL5374IU-T13 | IC OPAMP DIFF 3 CIRC 28SSOP/QSOP | |
| EL5374IUZ-T13 | IC OPAMP DIFF 3 CIRC 28SSOP/QSOP | |
| EL5374IUZ-T7 | IC OPAMP DIFF 3 CIRC 28SSOP/QSOP | |
| EL5378IU | IC OPAMP DIFF 3 CIRCUIT 28QSOP | |
| EL5378IU-T13 | IC OPAMP DIFF 3 CIRCUIT 28QSOP | |
| EL5378IU-T7 | IC OPAMP DIFF 3 CIRCUIT 28QSOP | |
| ISL28470FAZ | IC INST AMP 4 CIRCUIT 28QSOP | |
| EL5371IUZ | IC OPAMP DIFF 3 CIRCUIT 28QSOP | |
| EL5371IUZ-T13 | IC OPAMP DIFF 3 CIRCUIT 28QSOP | |
| EL5371IUZ-T7 | IC OPAMP DIFF 3 CIRCUIT 28QSOP | |
| ISL28470FAZ-T7 | IC INST AMP 4 CIRCUIT 28QSOP | |
| ISL28470FAZ-T7A | IC INST AMP 4 CIRCUIT 28QSOP |
Product Description
Product Details
The EL5178 and EL5378 are single and triple high bandwidth amplifiers with an output in differential form. They are primarily targeted for applications such as driving twisted-pair lines in component video applications. The inputs can be in either single-ended or differential form but the outputs are always in differential form.
On the EL5178 and EL5378, two feedback inputs provide the user with the ability to set the gain of each device
Features
• Fully differential inputs, outputs, and feedback• Differential input range ±2.3V
• 700MHz 3dB bandwidth
• 1000V/µs slew rate
• Low distortion at 5MHz and 20MHz
• Single 5V or dual ±5V supplies
• 60mA maximum output current
• Low power - 12.5mA per channel
• Pb-free available (RoHS compliant)
Applications
• Twisted-pair driver• Differential line driver
• VGA over twisted-pair
• ADSL/HDSL driver
• Single ended to differential amplification
• Transmission of analog signals in a noisy environment
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Renesas |
| Product Category | Instrumentation Amplifier |
| Series | EL5378 |
| Product | Differential Amplifiers |
| Packaging | Tube |
| Mounting-Style | SMD/SMT |
| Number-of-Channels | 3 Channel |
| Amplifier-Type | Driver |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Operating-Supply-Current | 42 mA |
| Supply-Voltage-Max | 11 V |
| Supply-Voltage-Min | 4.75 V |
| Package-Case | QSOP-28 |
| Ib-Input-Bias-Current | 7 uA |
| Vos-Input-Offset-Voltage | 30 mV |
| PSRR-Power-Supply-Rejection-Ratio | 60 dB |
| GBP-Gain-Bandwidth-Product | 350 MHz |
| Gain-V-V | 2 V/V |
| Maximum-Input-Resistance | 150 kOhms |
Descriptions
Differential Amplifier 3 Circuit Differential 28-QSOP
SP Amp DIFF Line Driver Amp Triple 卤5.5V/11V 28-Pin QSOP Tube
Differential Amplifiers EL5378IUZ 700MHZ DIF TWISTED-PAIR DRVRS
