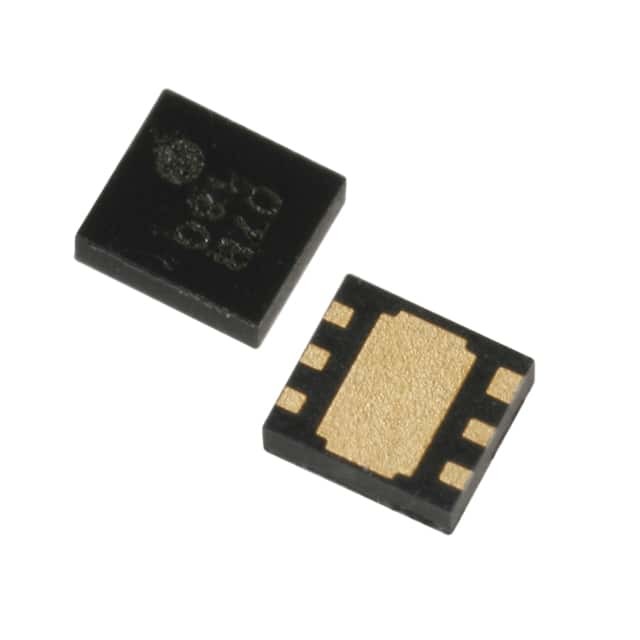

XC6121E616ER-G IC SUPERVISOR 1 CHANNEL 6USPC Torex Semiconductor Ltd



■ GENERAL DESCRIPTION

The XC61C series are highly precise, low power consumption voltage detectors, manufactured using CMOS and laser trimming technologies.
Detect voltage is extremely accurate with minimal temperature drift.
Both CMOS and N-channel open drain output configurations are available.





◆ CMOS

◆ Highly Accurate:± 1% (VDF=2.6V~5.0V) ± 2% (VDF=0.8V~6.0V)
◆ Low Power Consumption: 0.7μ A (VIN=1.5V)





■ FEATURES

Highly Accurate : ± 2%
(Low Voltage VD: 0.8V~1.5V)
(Standard Voltage VD: 1.6V~6.0V)
± 1%
(Standard Voltage VD: 2.6V~5.0V)
Low Power Consumption : 0.7μ A (TYP.) [VIN=1.5V]
Detect Voltage Range :0.8V ~ 6.0V in 100mV increments
Operating Voltage Range :0.7V ~ 6.0V (Low Voltage)
0.7V～ 10.0V (Standard Voltage)
Detect Voltage Temperature Characteristics
: ± 100ppm/℃ (TYP.) @Ta=25 OC
Output Configuration : N-channel open drain or CMOS
Ultra Small Packages : SSOT-24 (150mW)
SOT-23 (250mW)
SOT-25 (250mW)
SOT-89 (500mW)
TO-92 (300mW)
USP-6B (100mW)
USP-6C (100mW)
USP-4 (120mW)





■ APPLICATIONS

● Microprocessor reset circuitry
● Memory battery back-up circuits
● Power-on reset circuits
● Power failure detection
● System battery life and charge voltage monitors
