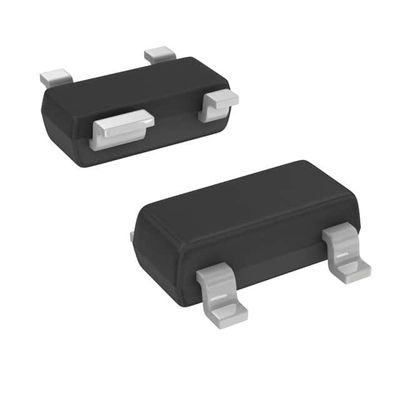

APX811-31UG-7 IC SUPERVISOR 1 CHANNEL SOT143 Diodes Incorporated



General Description

The APX321/APX358/APX324 are low voltage (2.5V to 5.5V) single, dual and quad operational amplifiers. The APX321/APX358/APX324 are designed to effectively reduce cost and space at low voltage levels. These devices have the capability of rail-to-rail output swing and input common-mode voltage range. They can also achieve an efficient speed-to-power ratio, utilizing 1 MHz bandwidth and 1 V/µs slew rate at a low supply current. Reducing noise pickup and increasing signal integrity can be achieved by placing the device close to the signal source. The APX321 is available in 5-Pin SOT353/SOT25 packages that reduce space on pc boards and portable electronic devices. The APX324 is available in the TSSOP-14L package. The APX358 is available in the MSOP-8L and SOP-8L packages.





Features

(For V+=5V and V-=0V typical unless otherwise noted)
• Guaranteed 2.7V and 5V performance
• Crossover distortion eliminated
• Operating temperature range (-40°C to +85°C)
• Gain-bandwidth 1 MHz
• Low supply current
• APX321 110 µA Typ
• APX358 190 µA Typ
• APX324 340 µA Typ
• Rail-to-rail output swing @ 10 kΩ
• V+ -10 mV
• V- +10 mV
• Input Common Mode Voltage Range (0 to V+-0.2V)
• Manufactured in standard CMOS process
• SOT353, SOT25, MSOP-8L, SOP-8L and TSSOP-14L: Available in “Green” Molding Compound (No Br, Sb)
• Lead-free Finish / RoHS Compliant (Note 4)





Applications

• Active filters
• General purpose low voltage applications
• General purpose portable devices
