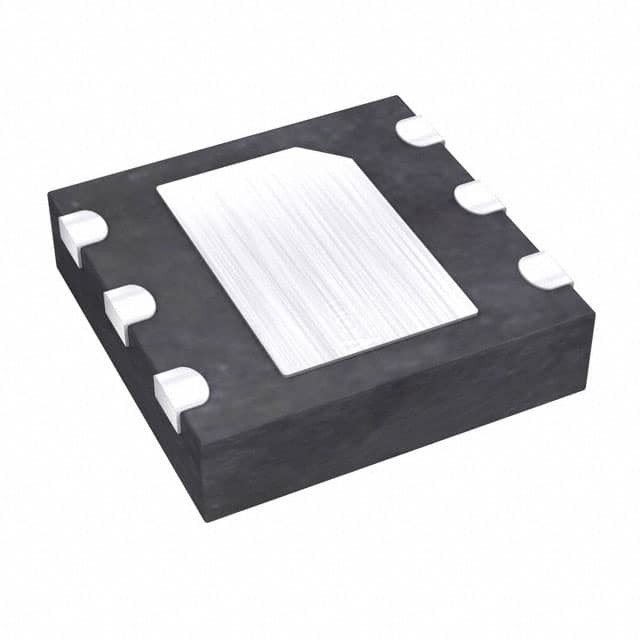

MAX16012TT+T IC SUPERVISOR 1 CHANNEL 6TDFN Analog Devices Inc./Maxim Integrated
| Brand Name | Analog Devices Inc./Maxim Integrated |
|---|---|
| Model Number | MAX16012TT+T |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Simple Reset/Power-On Reset | Number Of Voltages Monitored | 1 |
|---|---|---|---|
| Voltage - Threshold | Adjustable/Selectable | Output | Open Drain Or Open Collector |
| Reset | Active Low | Reset Timeout | - |
| Operating Temperature | -40°C ~ 125°C (TA) | Mounting Type | Surface Mount |
| Package / Case | 6-WDFN Exposed Pad | Supplier Device Package | 6-TDFN (3x3) |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| MAX16012TT+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX16057ATT17+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX16059ATT16+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX16013TT+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6765TTSD2+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6765TTLD2+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6398ATT+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX16059ATT30+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX16059ATT17+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX16059ATT22+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX16059ATT29+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX16059ATT31+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX16057ATT31+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX16057ATT46+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX16059ATT29+ | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX16059ATT30+ | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX16057ATT46+ | IC SUPERVISOR P-P 4.6V 6-TDFN | |
| MAX16057ATT31+ | IC SUPERVISOR P-P 3.1V 6-TDFN | |
| MAX16057ATT23+ | IC SUPERVISOR P-P 2.3V 6-TDFN | |
| MAX16059ATT17+ | IC SUPERVISOR OD 1.7V 6-TDFN | |
| MAX16059ATT22+ | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX16059ATT23+ | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX16059ATT16+ | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6398ATT+ | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6766TTLD2+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6765TTSD2/V+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX16013TT+ | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX16012TT+ | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6765TTLD2/V+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6765TTLD0+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6765TTLD1+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6765TTLD3+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6765TTLD4+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6765TTMD0+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6765TTMD1+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6765TTMD2+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6765TTMD3+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6765TTMD4+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6765TTSD0+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6765TTSD3+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6765TTSD4+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6765TTTD0+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6765TTTD1+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6765TTTD2+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6765TTTD3+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6765TTTD4+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6765TTVD0+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6765TTVD1+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6765TTVD2+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6765TTVD3+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6765TTVD4+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6765TTWD0+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6765TTWD1+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6765TTWD2+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6765TTWD3+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6765TTWD4+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6765TTYD0+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6765TTYD1+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6765TTYD2+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6765TTYD3+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6765TTYD4+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6765TTZD0+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6765TTZD1+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6765TTZD2+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6765TTZD3+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6765TTZD4+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6766TTLD0+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6766TTLD1+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6766TTLD3+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6766TTLD4+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6766TTMD0+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6766TTMD1+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6766TTMD2+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6766TTMD3+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6766TTMD4+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6766TTSD0+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6766TTSD1+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6766TTSD3+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6766TTSD4+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6766TTTD0+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6766TTTD1+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6766TTTD2+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6766TTTD3+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6766TTTD4+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6766TTVD0+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6766TTVD1+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6766TTVD2+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6766TTVD3+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6766TTVD4+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6766TTWD0+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6766TTWD1+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6766TTWD2+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6766TTWD3+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6766TTWD4+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6766TTYD0+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6766TTYD1+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6766TTYD2+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6766TTYD3+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6766TTYD4+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6766TTZD0+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6766TTZD1+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6766TTZD2+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6766TTZD3+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6766TTZD4+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX16014TT+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX16057ATT16+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX16057ATT18+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX16057ATT19+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX16057ATT20+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX16057ATT21+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX16057ATT23+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX16057ATT25+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX16057ATT27+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX16057ATT30+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX16057ATT33+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX16057ATT41+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX16059ATT19+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX16059ATT20+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX16059ATT21+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX16059ATT23+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX16059ATT27+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX16059ATT28+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX16059ATT32+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX16059ATT33+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX16059ATT46+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6769TALD2/V+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX16059ATT26+ | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX16057ATT17+ | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX16059ATT26+T | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6765TTSD3+ | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX6398ATT+TG071 | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX16059ATT32+ | IC SUPERVISOR 1 CHANNEL 6TDFN | |
| MAX16014TT+ | IC OVERVOLTAGE PROT/DETEC 6-TDFN | |
| MAX16059ATT19+ | IC SUPERVISOR OD 1.9V 6-TDFN | |
| MAX16057ATT16+ | IC SUPERVISOR P-P 1.6V 6-TDFN | |
| MAX16059ATT46+ | IC SUPERVISOR OD 4.6V 6-TDFN | |
| MAX6765TTSD1+T | IC REG LINEAR 3.3V 6-TDFN | |
| MAX6766TTSD2+T | IC REG LINEAR 3.3V 6-TDFN | |
| MAX16059ATT31+ | IC SUPERVISOR 1 CHANNEL 6TDFN |
Product Description
Product Details
General Description
The MAX16010–MAX16014 is a family of ultra-small, low power, overvoltage protection circuits for high-voltage, high-transient systems such as those found in automotive, telecom, and industrial applications. These devices operate over a wide 5.5V to 72V supply voltage range, makingthem also suitable for other applications such as battery stacks, notebook computers, and servers.
The MAX16010 and MAX16011 offer two independent comparators for monitoring both undervoltage and overvoltage conditions. These comparators offer open drain outputs capable of handling voltages up to 72V.
The MAX16010 features complementary enable inputs(EN/EN), while the MAX16011 features an active-high enable input and a selectable active-high/low OUTB output.
Features
♦Wide 5.5V to 72V Supply Voltage Range♦Open-Drain Outputs Up to 72V(MAX16010/MAX16011/MAX16012)
♦Fast 2µs (max) Propagation Delay
♦Internal Undervoltage Lockout
♦p-Channel MOSFET Latches Off After an Overvoltage Condition (MAX16014)
♦Adjustable Overvoltage Threshold
♦-40°C to +125°C Operating Temperature Range
♦Small 3mm x 3mm TDFN Package
Applications
AutomotiveIndustrial
48V Telecom/Server/Networking
FireWire®
Notebook Computers
Multicell Battery-Stack Powered Equipment
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Maxim Integrated |
| Product Category | Supervisors |
| Series | MAX16012 |
| Type | Simple Reset/Power-On Reset |
| Packaging | Alternate Packaging |
| Package-Case | 6-WDFN Exposed Pad |
| Operating-Temperature | -40°C ~ 125°C (TA) |
| Mounting-Type | Surface Mount |
| Output-Type | Active Low Open Drain |
| Supplier-Device-Package | 6-TDFN-EP (3x3) |
| Output | Open Drain or Open Collector |
| Reset | Active Low |
| Voltage monitoring relays | 1 |
| Reset-Timeout | |
| Voltage-Threshold | Adjustable/Selectable |
| Pd-Power-Dissipation | 1455 mW |
| Maximum Operating Temperature | + 125 C |
| Operating temperature range | - 40 C |
| Operating-Supply-Current | 25 uA |
| Battery-Backup-Switching | No Backup |
| Part-#-Aliases | MAX16012 |
| Supply-Voltage-Max | 72 V |
| Supply-Voltage-Min | 5.5 V |
| Package-Case | TDFN-EP-6 |
| Watchdog-Timers | No Watchdog |
| Input Monitoring | 1 Input |
| Manual-Reset | No Manual Reset |
| Chip-Enable-Signals | Chip Enable |
| Power-Fail-Detection | No |
| Overvoltage-Threshold | 1.265 V |
| Undervoltage-Threshold | 1.215 V |
Functional compatible component
Form,Package,Functional compatible component
| Manufacturer Part# | Description | Manufacturer | Compare |
| MAX16012TT-T Power Circuits |
Power Supply Support Circuit, Adjustable, 1 Channel, BICMOS, 3 X 3 MM, 0.80 MM HEIGHT, MO-229WEEA, TDFN-6 | Maxim Integrated Products | MAX16012TT+T vs MAX16012TT-T |
Descriptions
Supervisor Open Drain or Open Collector 1 Channel 6-TDFN-EP (3x3)
Supervisory Circuits Overvoltage Protect / Detect
