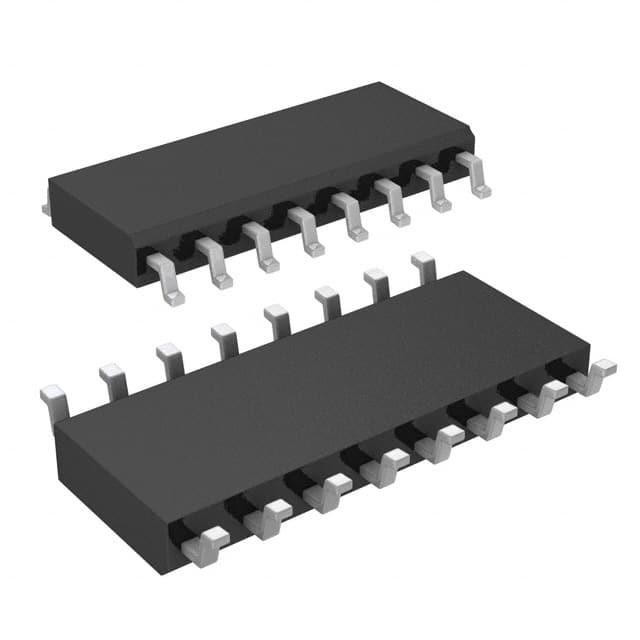

MAX793SCSE+ IC SUPERVISOR 1 CHANNEL 16SOIC Analog Devices Inc./Maxim Integrated



General Description

The MAX793/MAX794/MAX795 microprocessor (µP) supervisory circuits monitor and control the activities of +3.0V/+3.3V µPs by providing backup-battery switchover, among other features such as low-line indication, µP reset, write protection for CMOS RAM, and a watchdog (see the Selector Guide below). The backup-battery voltage can exceed VCC, permitting the use of 3.6V lithium batteries in systems using 3.0V to 3.3V for VCC.
The MAX793/MAX795 offer a choice of reset threshold voltage range (denoted by suffix letter): 3.00V to 3.15V (T), 2.85V to 3.00V (S), and 2.55V to 2.70V (R). The MAX794’s reset threshold is set externally with a resistor divider. The MAX793/MAX794 are available in 16-pin DIP and narrow SO packages, and the MAX795 comes in 8-pin DIP and SO packages. For similar devices designed for 5V systems, see the µP Supervisory Circuits table at the back of this data sheet.





Features

MAX793/MAX794/MAX795
♦ Precision Supply-Voltage Monitor:
Fixed Reset Trip Voltage (MAX793/MAX795)
Adjustable Reset Trip Voltage (MAX794)
♦ Guaranteed Reset Assertion to VCC = 1V
♦ Backup-Battery Power Switching—Battery
Voltage Can Exceed VCC
♦ On-Board Gating of Chip-Enable Signals—7ns
Max Propagation Delay
MAX793/MAX794 Only
♦ Battery Freshness Seal
♦ Battery OK Output (MAX793)
♦ Uncommitted Voltage Monitor for Power-Fail or
Low-Battery Warning
♦ Independent Watchdog Timer (1.6sec timeout)
♦ Manual Reset Input





Applications

Battery-Powered Computers and Controllers
Embedded Controllers
Intelligent Controllers
Critical µP Power Monitoring
Portable Equipment
